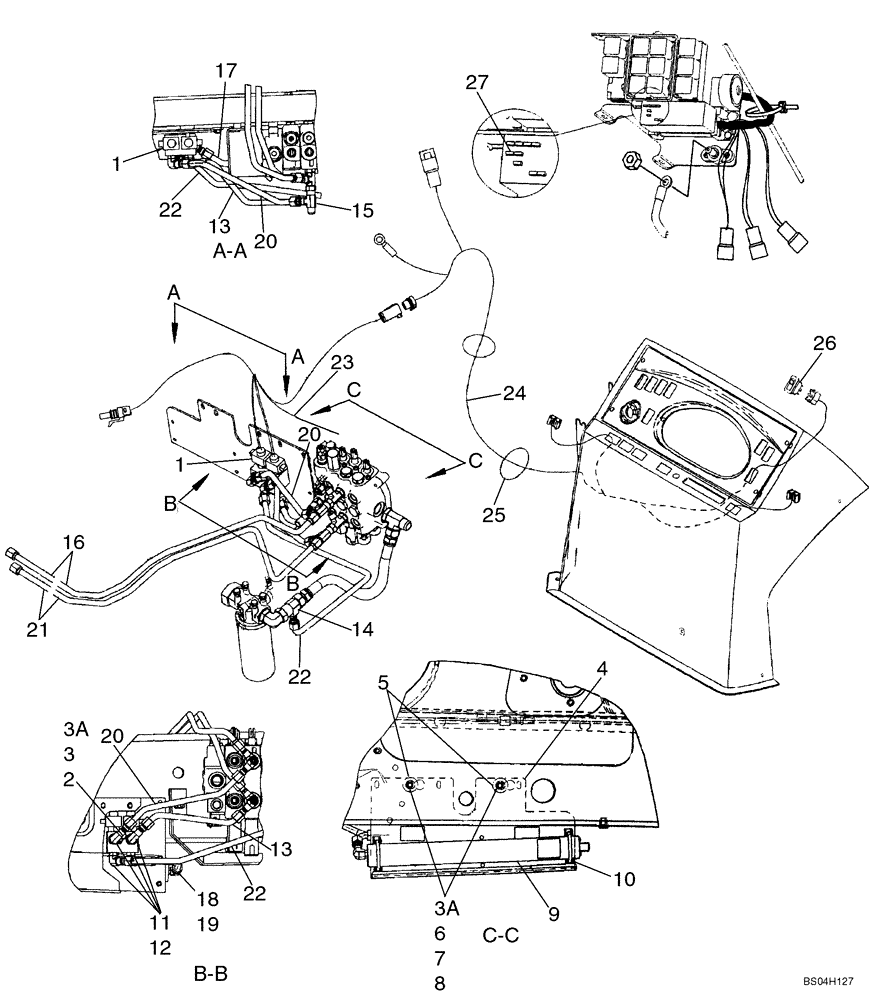

Запчасти Case 570MXT (08-07B) - HYDRAULICS - RIDE CONTROL (87433240 SOLENOID VALVE)(MODELS WITH HUSCO LOADER VALVE) (08) - HYDRAULICS

REF

INSTRUCTION

RIDE CONTROL HYDRAULIC AND ELECTRICAL CIRCUIT

1шт.

1

87433240

SOLENOID VALVE

Ride Control; Component Parts Not Available At Time Of Printing

1шт.

2

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

3a

892-11010

LOCK WASHER,M10

3шт.

4

86993690

MOUNTING PLATE

1шт.

5

330083A1

SPACER,11mm ID x 40mm OD x 10mm Thk

2шт.

6

711-10040

CARRIAGE BOLT,Short NK, M10 x 40, Cl8.8, Full Thd

2шт.

7

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

9

448284A1

ACCUMULATOR,275 Bar

Ride Control; Component Parts Not Serviced Separately; Used In Production, For Service, Order 234412A1 Accumulator

1шт.

9

234412A1

ACCUMULATOR,0.98L

Ride Control; See Figure 08-30

1шт.

10

A13240

CLAMP,2-5/8" ID

Two Piece; Includes Hardware

2шт.

11

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 12

4шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

87447432

TUBE,.625" OD

Solenoid Valve to Loader Control Valve Lower Lift Section Port

1шт.

14

218-5490

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx7/8"-14 Br

1шт.

15

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

2шт.

16

87447423

TUBE,.625" OD

1шт.

17

86994190

TUBE,15.80 mm OD x 145, 107 mm L

Accumulator to Solenoid Valve

1шт.

18

218-5600

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 19

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

87453123

TUBE,.625" OD

Solenoid Valve To Loader Control Valve Upper Lift Section Port

1шт.

21

87447428

TUBE,.625" OD

1шт.

22

86994193

TUBE,15.80 mm OD

Solenoid Valve To Filter

1шт.

23

87452518

WIRE HARNESS

Chassis Options Harness

1шт.

24

400623A2

HARNESS

Side Console Options Harness; Attaches to Side Console Harness and Main Chassis Options Harness

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

2шт.

26

235002A1

ROCKER SWITCH

Ride Control

1шт.

27

121413A1

FUSE,15A, Mini, Blue

Blue

1шт.
