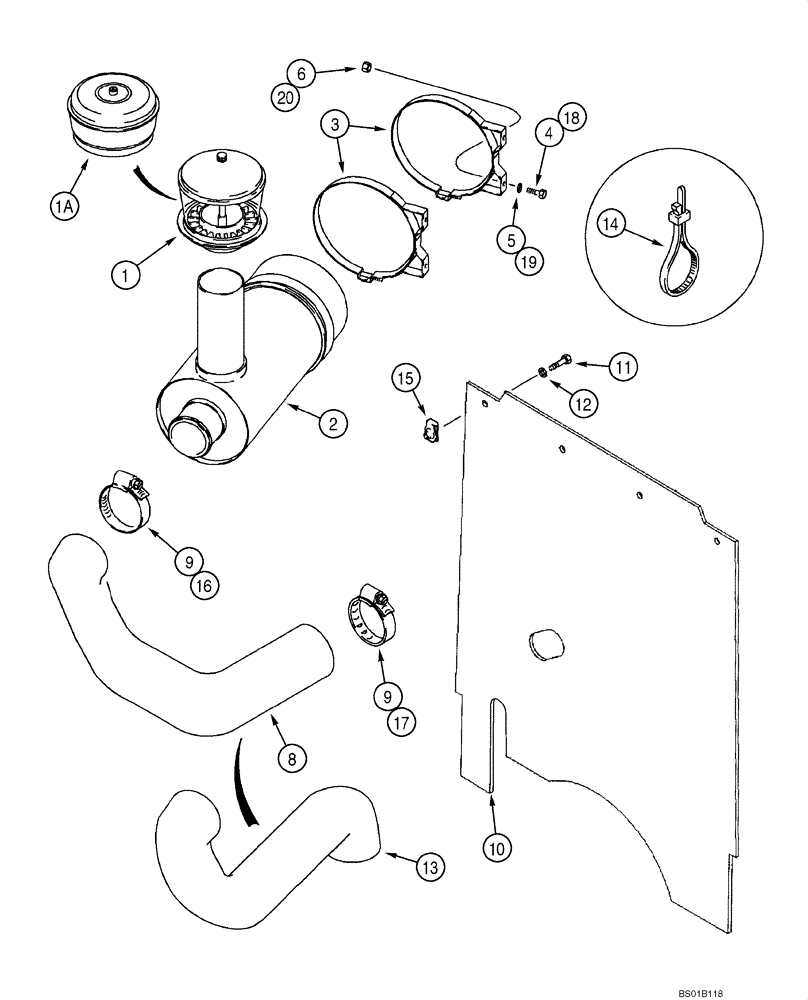

Запчасти Case 570MXT (02-04) - AIR CLEANER - AIR INTAKE PARTS (02) - ENGINE

1

193867A1

PRECLEANER

(AIR) Models Without Turbocharged Engine; See Figure 02-05

1шт.

1a

228120A1

PRECLEANER

Models With Turbocharged Engine; See Figure 02-06

1шт.

2

387810A1

FILTER ASSY

Models Without Turbocharged Engine; See Figure 02-05

1шт.

2

293571A1

AIR CLEANER

Models With Turbocharged Engine; See Figure 02-06

1шт.

3

L113910

CLAMP

Incl. Hardware; Models Without Turbocharged Engine

2шт.

3

70973

BRACKET

Incl. Hardware; Models With Turbocharged Engine

2шт.

4

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

Models without Turbocharged Engine; Replaces 614-10020 M10 x 20 Bolt Used On Some Models

4шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

Models without Turbocharged Engine

4шт.

6

125-10002

SPECIAL NUT,3/8"-16, G5, LH

LH Thread; Models without Turbocharged Engine; Replaces 829-1410 M10 Nut Used On Some Models; If Used

4шт.

6

425-106

NUT,3/8"-16, Cl 5

Replaces 125-10002 LH Thread Nut Used On Some Models

4шт.

8

223944A1

INTAKE AIR HOSE,76.20 mm ID, SAE J200 or SAE J200

Models With Turbocharged Engine

1шт.

9

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

Models Without Turbocharged Engine

2шт.

10

330267A2

CURTAIN

Barrier; Heat and Noise Reduction

1шт.

11

806-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9

4шт.

12

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

13

87306290

INTAKE AIR HOSE,76.20 mm ID x 435.00

Models Without Turbocharged Engine; Replaces 144269A1 Hose Used On Some Models

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

2шт.

15

833-40408

NUT,M8, U

4шт.

16

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

Models with Turbocharged Engine

1шт.

17

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

Models With Turbocharged Engine

1шт.

18

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

Models with Turbocharged Engine

4шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Models with Turbocharged Engine

4шт.

20

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

Models with Turbocharged Engine

4шт.
