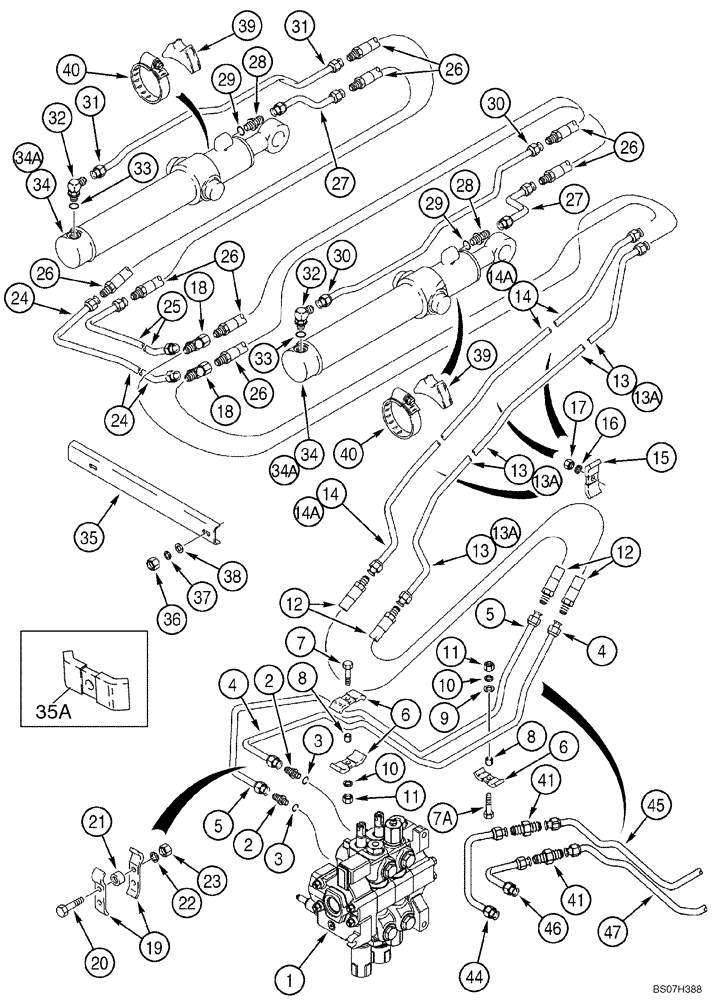

Запчасти Case 570MXT (08-04) - HYDRAULICS - CYLINDER, LOADER BUCKET (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
Valve Assy; Control; Loader Control Valve; For Correct Assembly and Components, See Figure 08-14, 08-15; For Mounting, See Figure 09-01
1шт.
2
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
Incl. 3
2шт.
3
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
4
232447A1
TUBE
Upper Bucket Port; For Service, Order 41, 46, 47; Models Without Husco Loader Valve
1шт.
4
87452255
TUBE,.625" OD
Upper Bucket Port; Models With Husco Loader Valve; For Service Order Ref 41, 47 & 87313501 Tube at Loader Valve
1шт.
5
220169A1
TUBE
Lower Bucket Port; For Service, Order 41, 44, 45; Models Without Husco Loader Valve
1шт.
5
87309999
HYD TUBE,15.88 mm OD
Lower Bucket Port; Models With Husco Loader Valve; Replaces 87452253; For Service Order 41, 45, and 87313503 Tube at Loader Valve
1шт.
6
D138055
CLAMP
3шт.
7
814-10040
BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8
1шт.
7a
814-10045
BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8
1шт.
8
120303A1
SPACER,11mm ID x 15.82mm OD x 15mm Thk
2шт.
9
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
1шт.
10
892-11010
LOCK WASHER,M10
2шт.
11
829-1410
NUT,M10 x 1.5, Cl 10.9
2шт.
12
138467A1
HOSE,12.7mm ID x 680mm L
680 mm (26-3/4 in)
2шт.
13
196817A1
TUBE
Lower; Prior to P.I.N. JJG0300009; Used With 87426379 Loader Arm, See Figure 09-04
1шт.
13
418789A1
HYD TUBE
Lower; P.I.N. JJG0300009 and After; Used With 87426379 Loader Arm, See Figure 09-04
1шт.
13a
87610317
HYD TUBE
Lower; Used With 87566994 Loader Arm, See Figure 09-04A
1шт.
14
196819A1
TUBE
Upper; Prior to P.I.N. JJG0300009; Used With 87426379 Loader Arm, See Figure 09-04
1шт.
14
418791A1
HYD TUBE
Upper; P.I.N. JJG0300009 and After; Used With 87426379 Loader Arm, See Figure 09-04
1шт.
14a
87610320
HYD TUBE,15.88 mm OD x 1607 mm L
Upper; Used With 87566994 Loader Arm, See Figure 09-04A
1шт.
15
D138055
CLAMP
3шт.
16
892-11010
LOCK WASHER,M10
3шт.
17
829-1410
NUT,M10 x 1.5, Cl 10.9
3шт.
18
218-5220
TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run
2шт.
19
221733A1
SHIN
If Used
2шт.
20
814-10040
BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8
If used
2шт.
21
120303A1
SPACER,11mm ID x 15.82mm OD x 15mm Thk
If Used
2шт.
22
892-11010
LOCK WASHER,M10
If Used
2шт.
23
829-1410
NUT,M10 x 1.5, Cl 10.9
If Used
2шт.
24
196815A1
TUBE
Rear
1шт.
25
196813A1
TUBE
Front
1шт.
26
371031A1
HYDRAULIC HOSE,3/8" ID x 940mm L
840 mm (33")
4шт.
27
87316049
RIGID TUBE
Bucket Cylinder Rod End; Replaces 192152A1
2шт.
28
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
Incl. 29
2шт.
29
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
30
87316270
TUBE
Right-Hand Cylinder Closed End; Replaces 192156A1
1шт.
31
87316264
RIGID TUBE
Left-Hand Cylinder Closed End; Replaces 192154A1
1шт.
32
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
Incl. 33
2шт.
33
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
34
113133A2
CYLINDER ASSY.,Double Acting, 38.1mm Rod, 522.3mm Stroke
76 ID x 522 mm strk; Loader Bucket Cylinder; See Figure 08-33; Used With 87426379 Loader Arm, See Figure 09-04
2шт.
34
113133A2R
REMAN-HYD CYLINDER
Bucket Cylinder - For N.A. Only
1шт.
34
113133A2C
CORE-HYD CYLINDER
Bucket Cylinder - For N.A. Only
1шт.
34a
87609669
HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 522.3mm Stroke
76 ID x 522 mm strk; Loader Bucket; See Figure 08-33A; Used With 87566994 Loader Arm, See Figure 09-04A
2шт.
35
250648A1
PROTECTOR
No Longer Used, Order 35A
1шт.
35a
D138055
CLAMP
2шт.
36
829-1410
NUT,M10 x 1.5, Cl 10.9
2шт.
37
892-11010
LOCK WASHER,M10
2шт.
38
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
2шт.
39
L79937
SADDLE
2шт.
40
214-1464
HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm
2шт.
41
218-435
HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC
1-2шт.
44
221143A1
TUBE
Lower Bucket Port
1шт.
45
221146A1
TUBE
1шт.
46
232934A1
TUBE,15.88 mm OD
Upper Bucket Port
1шт.
47
232936A1
TUBE
1шт.
Выбрано товаров: 56
