(08-02) - HYDRAULICS - COOLER, RETURN LINES AND FILTER

Запчасти Case 570MXT (08-02) - HYDRAULICS - COOLER, RETURN LINES AND FILTER (08) - HYDRAULICS

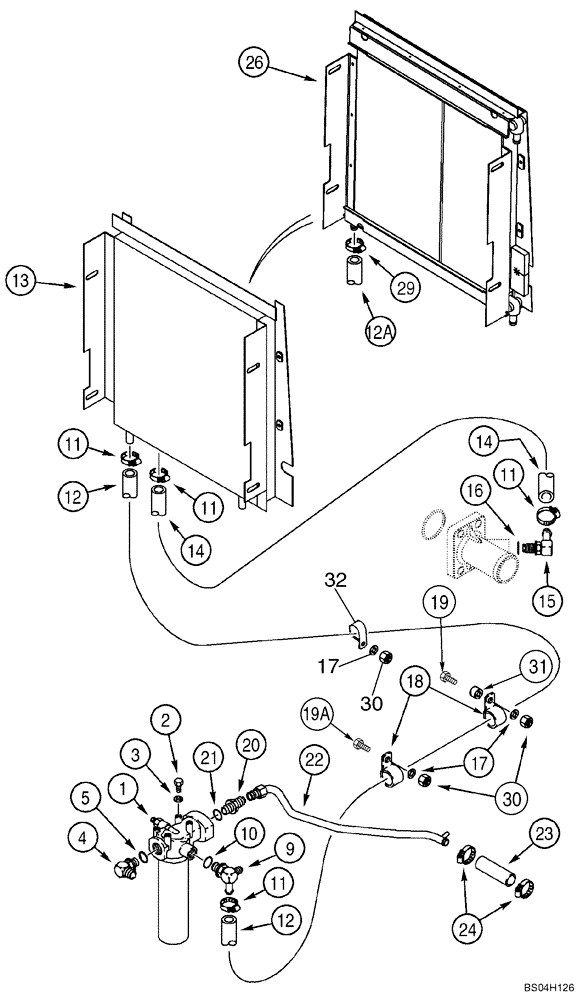

Схема запчастей Case 570MXT - (08-02) - HYDRAULICS - COOLER, RETURN LINES AND FILTER (08) - HYDRAULICS
11
19
11
12
23
17
17
14
15
5
19a
20
4
12
29
14
32
30
21
11
12a
9
31
2
30
10
3
26
13
24
22
16
11
1
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

122536A1

HYDRAULIC OIL FILTER

Hydraulic Oil; See Figure 08-31; Used On Models Without 3000 Pound Rear Counterweight (W PTO)

1шт.

1

87440045

FILTER ASSY

Hydraulic Oil; See Figure 08-31; Used On Models With 3000 Pound Rear Counterweight (W/O PTO)

1шт.

2

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

4

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Loader Valve To Filter; Incl. 5

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

9

301104A1

FITTING,5/8" OD x 7/8" - 14 ORFS x 9/16" - 18 JIC

Special Tee W/Hose Barb, Incl. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

328186A1

HOSE CLAMP,400mm L

4шт.

12

325489A2

HOSE

2100 mm (82-11/16 in); Models Without Air Conditioning

1шт.

12a

301341A1

HOSE

2500 mm (98-7/16 in); Models With Air Conditioning

1шт.

13

320877A1

COOLER, OIL

Models Without Air Conditioning; For Attaching Parts, See Figure 06-10

1шт.

14

301342A2

HOSE

530 mm (20-7/8 in)

1шт.

15

217-342

FITTING,90 Degree Elbow, 5/8" Hose Barb x 9/16" - 18 Male ORB

Incl. 16; To Pump Flange; See Figure 08-01

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2-3шт.

18

515-25238

CLAMP,15/16", Insul, 1/2" Bolt

2шт.

19

711-10040

CARRIAGE BOLT,Short NK, M10 x 40, Cl8.8, Full Thd

1шт.

19a

711-10030

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

1шт.

20

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

Incl. 21

1шт.

21

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

22

295172A1

TUBE

Return To Tank

1шт.

23

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

89 mm (3-5/8 in); Cut From S118383X; Return To Tank; For Attaching Brake Line Clamp, See Figure 07-04

1шт.

24

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

26

383355A2

OIL COOLER

Heavy Duty; Models With Air Conditioning; For Attaching Parts, See Figure 06-11

1шт.

29

328186A1

HOSE CLAMP,400mm L

2шт.

30

829-1410

NUT,M10 x 1.5, Cl 10.9

2-3шт.

31

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

32

49773

CLAMP

P-Type; Mounts to Clamping On Figure 08-01 or 08-01A, Ref 30

1шт.
