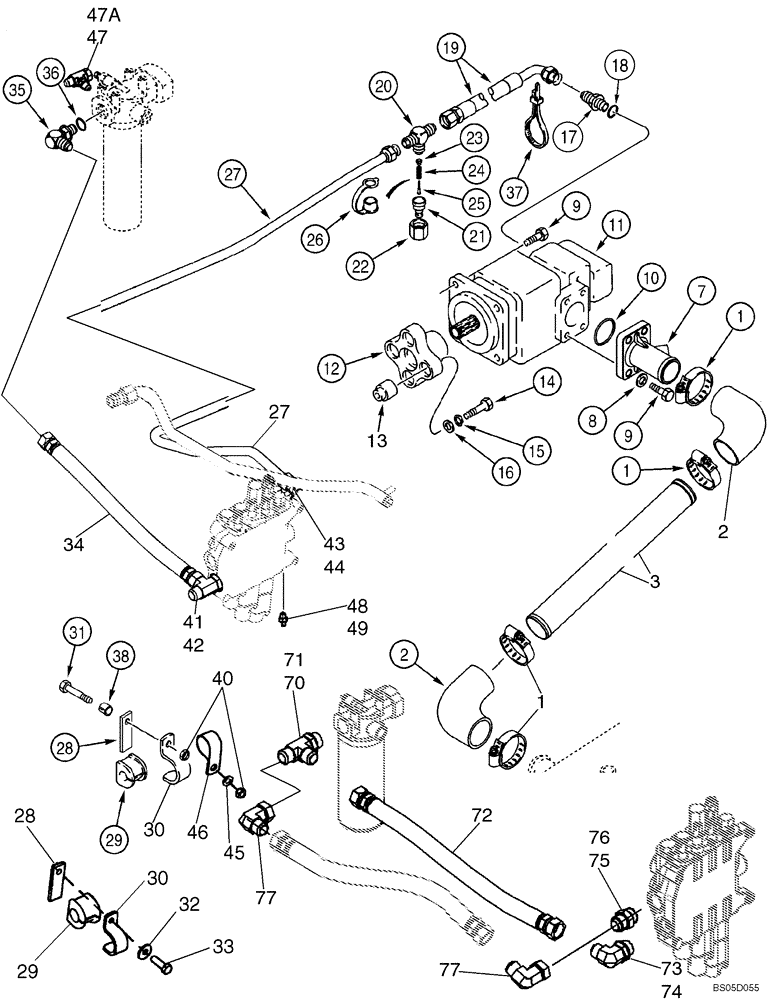

Запчасти Case 570MXT (08-01B) - HYDRAULICS - PUMP, FILTER AND LOADER VALVE (WITH HUSCO LOADER VALVE W/BUILT-IN PRIORITY VALVE) (08) - HYDRAULICS

*

MODELS WITH HUSCO LOADER VALVE WITH BUILT-IN PRIORITY VALVE

1шт.

1

259044A1

CLAMP

4шт.

2

87306272

HYDRAULIC HOSE,50.80 mm ID x 102.00 mm

Suction; At Hydraulic Tank and Pump; Replaces 282497A1 Hose Used On Some Models

2шт.

3

346198A1

TUBE,50.8 mm OD, 950 mm Length

Suction

1шт.

7

308441A1

FLANGE

For Attaching Parts, See Figure 08-02

1шт.

8

895-15012

WASHER,M12 x 28 x 2.5

4шт.

9

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

8шт.

10

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

11

257953A1

PUMP, HYDRAULIC

Hydraulic Equipment; See Figure 08-13

1шт.

11

257953A1R

REMAN-HYD PUMP

Hydraulic Equipment; See Figure 08-13

1шт.

11

257953A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

12

257948A1

FLEXIBLE COUPLING,Flex, 17T

Incl. 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Coupling

1шт.

13

N14330

BUSHING,11.38mm ID x 25.15mm OD x 23.11mm L

4шт.

14

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

15

492-11044

LOCK WASHER,7/16"

4шт.

16

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

4шт.

17

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref 18

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

144215A1

HOSE,19.05mm ID x 576mm L

576 mm (22-3/4 in); Large Pump Section Port

1шт.

20

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

Pump Outlet Hose To Loader Valve Inlet Tube

1шт.

21

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

Quick Disconnect Coupling; Incl. Ref 21 - 25

1шт.

21

NSS

NOT SOLD SEPARAT

Housing

1шт.

22

425-1120

NUT,1 1/4"-12, G5

1шт.

23

NSS

NOT SOLD SEPARAT

Seat

1шт.

24

NSS

NOT SOLD SEPARAT

Spring

1шт.

25

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

26

H434163

DUST CAP

1шт.

27

87308662

TUBE,1" OD

Supply

1шт.

28

383925A1

BRACKET

2шт.

29

D67297

BLOCK

2шт.

30

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

2шт.

31

711-10060

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 60mm, Cl 8.8

1шт.

32

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

33

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

34

87454466

HOSE ASSY.,3/4" x 565mm L, 12-AT3K

565 mm (22-1/4 in)

1шт.

35

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Loader Valve To Filter; Incl. Ref 36; On Models With Counterweight, Ref 35 and 41 Are Switched

1шт.

36

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

4шт.

38

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

40

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

41

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref 42; On Models With Counterweight, Ref 35 and 41 Are Switched

1шт.

42

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

43

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 44

1шт.

44

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

45

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

46

49773

CLAMP

P-Type; 1.25 dia x 3/4

1шт.

47

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl. 237-6006 O-Ring; Models Without Holding Valve

1шт.

47a

218-5511

TEE,37 Degree, 3/4"-16 x 9/16"-18, O-Ring Br

Incl. 237-6006 O-Ring; Models With Holding Valve

1шт.

48

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. Ref 49

1шт.

49

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

*

MODELS WITH HUSCO LOADER VALVE WITH 3000 POUND REAR COUNTERWEIGHT

1шт.

70

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref 71; Ref 70 and 73 Are Reversed On Three-Point Hitch Units

1шт.

71

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

72

87454466

HOSE ASSY.,3/4" x 565mm L, 12-AT3K

565 mm (22-1/4 in); Return

1шт.

73

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref 74; Ref 70 and 73 Are Reversed On Three-Point Hitch Units

1шт.

74

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

75

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref 76

1шт.

76

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

77

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

2шт.
