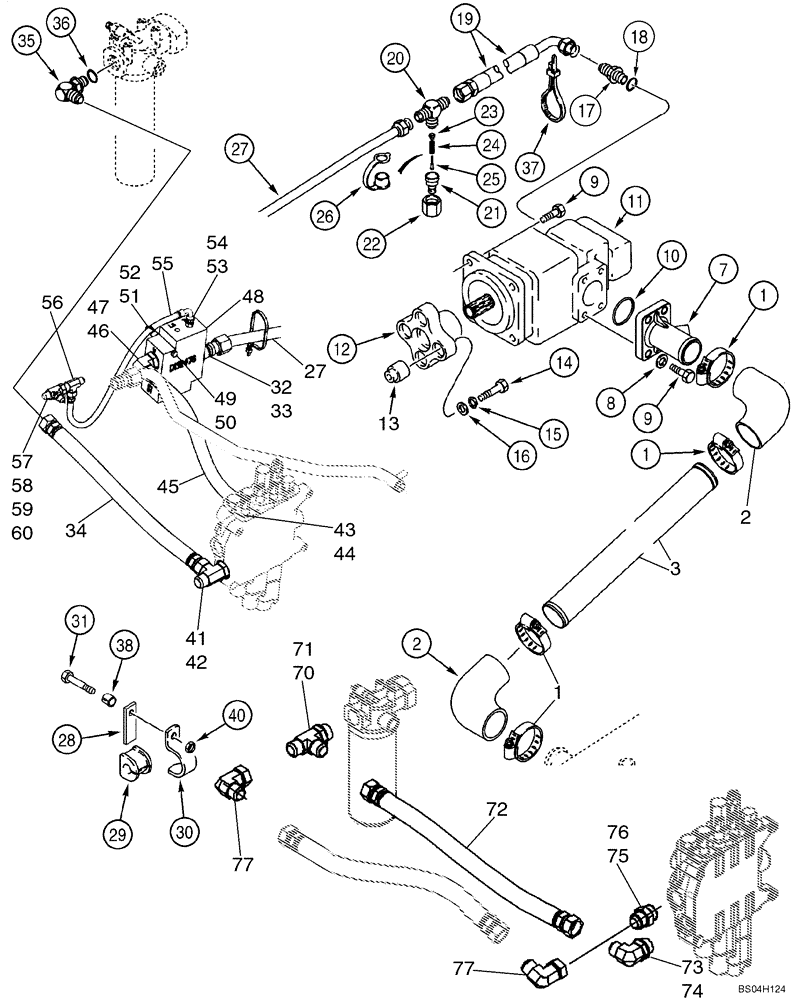

Запчасти Case 570MXT (08-01A) - HYDRAULICS - PUMP, FILTER AND LOADER VALVE (WITH HUSCO LOADER VALVE W/SEPARATE PRIORITY VALVE) (08) - HYDRAULICS

*

MODELS WITH HUSCO LOADER VALVE WITH SEPARATE PRIORITY VALVE

1шт.

1

259044A1

CLAMP

4шт.

2

87306272

HYDRAULIC HOSE,50.80 mm ID x 102.00 mm

Suction; At Hydraulic Tank and Pump; Replaces 282497A1 Hose Used On Some Models

2шт.

3

346198A1

TUBE,50.8 mm OD, 950 mm Length

Suction

1шт.

7

308441A1

FLANGE

For Attaching Parts, See Figure 08-02

1шт.

8

895-15012

WASHER,M12 x 28 x 2.5

4шт.

9

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

8шт.

10

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

11

257953A1

PUMP, HYDRAULIC

Hydraulic Equipment; See Figure 08-13

1шт.

11

257953A1R

REMAN-HYD PUMP

Hydraulic Equipment; See Figure 08-13

1шт.

11

257953A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

12

257948A1

FLEXIBLE COUPLING,Flex, 17T

Incl. 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Coupling

1шт.

13

N14330

BUSHING,11.38mm ID x 25.15mm OD x 23.11mm L

4шт.

14

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

15

492-11044

LOCK WASHER,7/16"

4шт.

16

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

4шт.

17

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref 18

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

144215A1

HOSE,19.05mm ID x 576mm L

576 mm (22-3/4 in); Large Pump Section Port

1шт.

20

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

Pump Outlet Hose To Loader Valve Inlet Tube

1шт.

21

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

Quick Disconnect Coupling; Incl. Ref 21 - 25

1шт.

21

NSS

NOT SOLD SEPARAT

Housing

1шт.

22

425-1120

NUT,1 1/4"-12, G5

1шт.

23

NSS

NOT SOLD SEPARAT

Seat

1шт.

24

NSS

NOT SOLD SEPARAT

Spring

1шт.

25

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

26

H434163

DUST CAP

1шт.

27

87447434

TUBE,1" OD

Supply

1шт.

28

383925A1

BRACKET

1шт.

29

D67297

BLOCK

1шт.

30

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

1шт.

31

711-10060

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 60mm, Cl 8.8

1шт.

32

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref 33

1шт.

33

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

34

87454466

HOSE ASSY.,3/4" x 565mm L, 12-AT3K

565 mm (22-1/4 in)

1шт.

35

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Loader Valve To Filter; Incl. Ref 36; On Models With Counterweight, Ref 35 and 41 Are Switched

1шт.

36

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

38

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

40

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

41

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref 42; On Models With Counterweight, Ref 35 and 41 Are Switched

1шт.

42

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

43

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 44

1шт.

44

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

45

87447958

HOSE ASSY.

560 mm (22-1/16 in); Priority Valve to Loader Valve

1шт.

46

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref 47

1шт.

47

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

48

87548326

HYDRAULIC VALVE

Priority Flow Divider; See Figure 08-38; Replaces D132476

1шт.

49

814-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

Used With Ref 51, 52; If Used

2шт.

49

87306060

BOLT

Locking; M8 x 80; If Used

2шт.

50

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

51

131601A1

SPACER

If Used

2шт.

52

87417383

THREADED INSERT,M8 x 1.25

If Used

2шт.

53

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl. Ref 54

1шт.

54

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

55

87448135

HOSE ASSY.

540 mm (21-5/16 in); Return; Priority, Serial Range: Valve-Filter

1шт.

56

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

57

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl. Ref 58

1шт.

58

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

59

218-5511

TEE,37 Degree, 3/4"-16 x 9/16"-18, O-Ring Br

Incl. Ref 60; Models With Holding Valve

1шт.

60

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

*

MODELS WITH HUSCO LOADER VALVE WITH 3000 POUND REAR COUNTERWEIGHT

1шт.

70

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref 71; Ref 70 and 73 Are Reversed On Three-Point Hitch Units

1шт.

71

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

72

87454466

HOSE ASSY.,3/4" x 565mm L, 12-AT3K

565 mm (22-1/4 in); Return

1шт.

73

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref 74; Ref 70 and 73 Are Reversed On Three-Point Hitch Units

1шт.

74

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

75

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref 76

1шт.

76

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

77

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

2шт.
