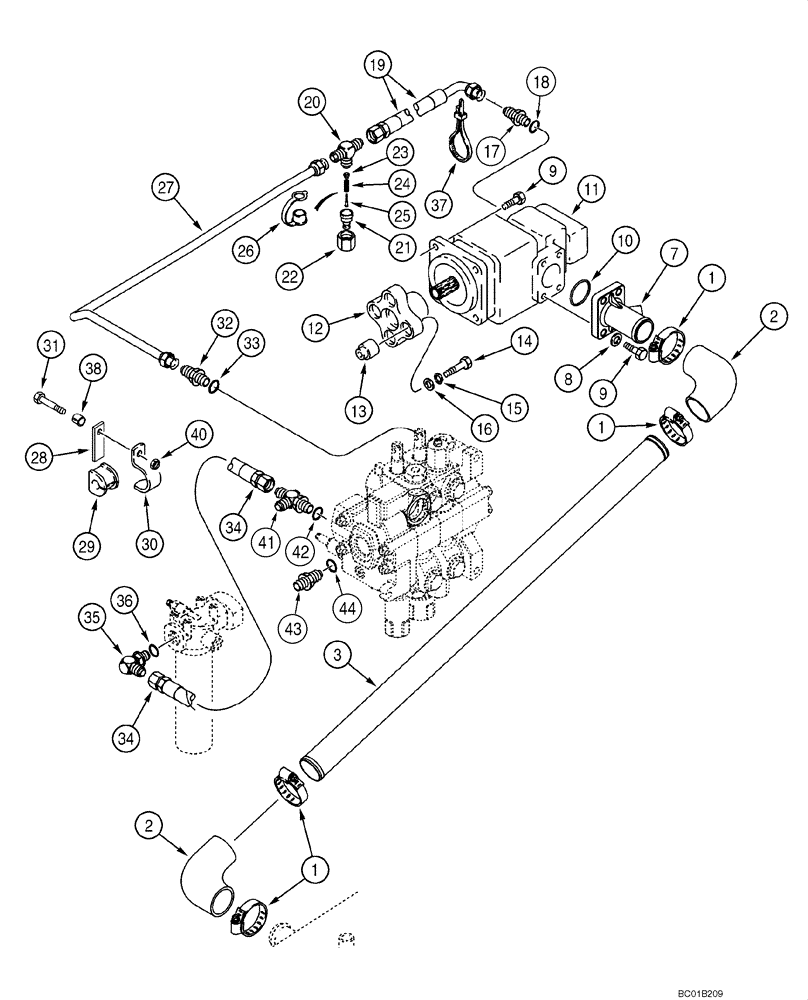

Запчасти Case 570MXT (08-01) - HYDRAULICS - PUMP, FILTER AND LOADER VALVE (MODELS WITHOUT HUSCO LOADER VALVE) (08) - HYDRAULICS

*

MODELS WITHOUT HUSCO LOADER VALVE

1шт.

1

259044A1

CLAMP

4шт.

2

87306272

HYDRAULIC HOSE,50.80 mm ID x 102.00 mm

Suction; At Hydraulic Tank and Pump; Replaces 282497A1 Hose Used On Some Models

2шт.

3

346198A1

TUBE,50.8 mm OD, 950 mm Length

Suction

1шт.

7

308441A1

FLANGE

For Attaching Parts, See Figure 08-02

1шт.

8

895-15012

WASHER,M12 x 28 x 2.5

4шт.

9

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

8шт.

10

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

11

257953A1

PUMP, HYDRAULIC

Hydraulic Equipment; See Figure 08-13

1шт.

11

257953A1R

REMAN-HYD PUMP

Hydraulic Equipment; See Figure 08-13

1шт.

11

257953A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

12

257948A1

FLEXIBLE COUPLING,Flex, 17T

Incl. 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Coupling

1шт.

13

N14330

BUSHING,11.38mm ID x 25.15mm OD x 23.11mm L

4шт.

14

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

15

492-11044

LOCK WASHER,7/16"

4шт.

16

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

4шт.

17

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 18

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

144215A1

HOSE,19.05mm ID x 576mm L

576 mm (22-3/4 in); Large Pump Section Port

1шт.

20

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

Pump Outlet Hose To Loader Valve Inlet Tube

1шт.

21

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

Quick Disconnect Coupling; Incl. Ref 21 - 25

1шт.

21

NSS

NOT SOLD SEPARAT

Housing

1шт.

22

425-1120

NUT,1 1/4"-12, G5

1шт.

23

NSS

NOT SOLD SEPARAT

Seat

1шт.

24

NSS

NOT SOLD SEPARAT

Spring

1шт.

25

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

26

H434163

DUST CAP

1шт.

27

370137A1

TUBE,25.4 mm OD, 845, 524 mm Length

To Loader Valve Inlet; Used Without Loader Hydraulic Tool Quick Coupler; For Tube Clamps Near Loader Valve, See Figure 08-04, Ref 19 - 23

1шт.

28

383925A1

BRACKET

1шт.

29

D67297

BLOCK

1шт.

30

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

1шт.

31

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

1шт.

32

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 33

1шт.

33

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

34

144227A2

HOSE,19.05mm ID x 472mm L

472 mm (18-19/32 in); Loader Valve To Filter; Used on Rear Counterweight Units Without Ride Control and/or Loader Tool Coupler; Used On Three-Point Hitch Units Without Ride Control and Loader Tool Coupler With Two Spool Loader Valve

1шт.

34

230078A2

HOSE

415 mm (16-3/8 in); Loader Valve to Filter; Used On Rear Counterweight Units With Ride Control and/or Loader Tool Coupler; Used On Three-Point Hitch Units Without Ride Control and Loader Tool Coupler With Three Spool Loader Valve

1шт.

34

238565A2

HOSE

383 mm (15-1/8 in); Loader Valve to Filter; Used On Three Point Hitch Units With Ride Control and/or Loader Tool Coupler

1шт.

35

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Loader Valve To Filter; Incl. 36

1шт.

36

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

38

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

40

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

41

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 42

1шт.

42

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

43

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 44

1шт.

44

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
