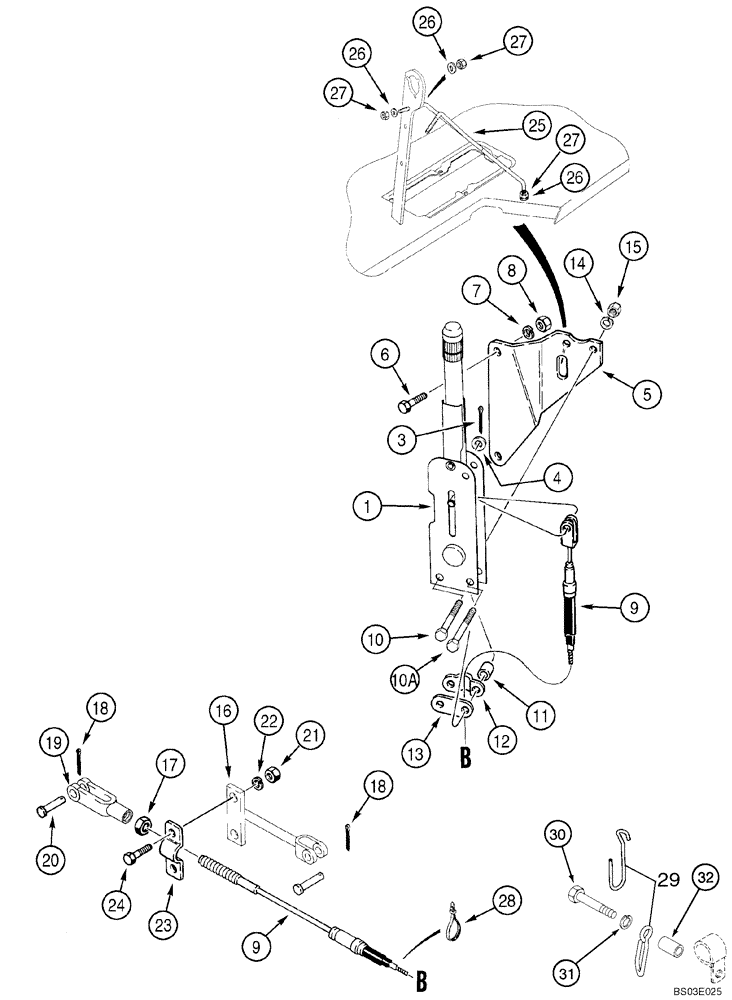

Запчасти Case 570MXT (07-06) - CONTROLS - BRAKE, PARKING (07) - BRAKES

367977A1

LEVER

Incl. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Lever

1шт.

2

NSS

NOT SOLD SEPARAT

Pin, Clevis

1шт.

3

432-612

COTTER PIN,3/32" x 3/4"

1шт.

4

495-21038

WASHER,5/16"

1шт.

5

124646A1

SUPPORT

1шт.

6

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

7

892-11010

LOCK WASHER,M10

2шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

9

280681A1

CABLE,1325mm L

1325 mm (52-3/16 in)

1шт.

10

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

1шт.

10a

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

1шт.

11

87311354

SPACER,10.7mm ID x 17.1mm OD x 14.2mm L

Replaces D150633

2шт.

12

D121608

CLAMP

1шт.

13

D129747

PLATE

1шт.

14

892-11008

LOCK WASHER,8mm ID

2шт.

15

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

16

326348A1

SUPPORT

151 mm (6 in)

1шт.

17

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

18

432-612

COTTER PIN,3/32" x 3/4"

2шт.

19

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

1шт.

20

D149288

PIN,8.33mm OD x 30.66mm L

2шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

22

892-11010

LOCK WASHER,M10

2шт.

23

A188028

CLAMP

1шт.

24

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

25

180801A1

SUPPORT

Loader Control

1шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

6шт.

27

425-106

NUT,3/8"-16, Cl 5

6шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

29

223722A1

SUPPORT

For Clamp, See Figure 04-04

1шт.

30

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

31

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

Replaces 895-11010 11 x 20 x 2 mm Washer Used On Some Models

1шт.

32

130245A1

SPACER

1шт.
