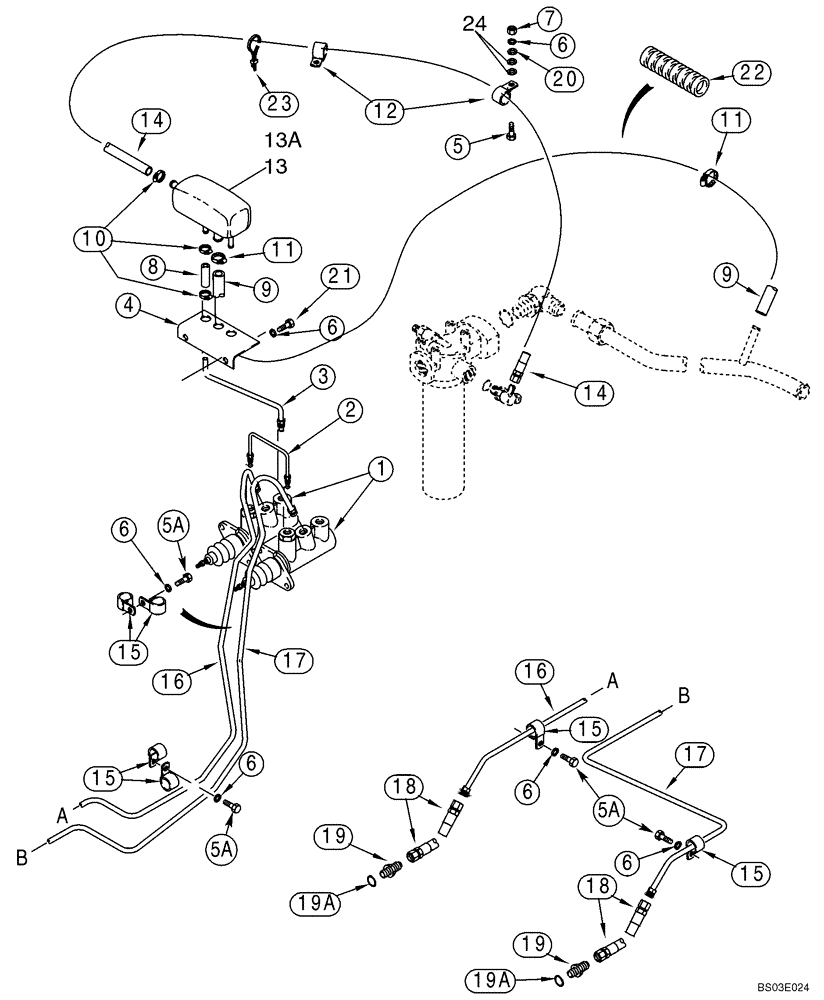

Запчасти Case 570MXT (07-04) - HYDRAULICS - BRAKE MASTER CYLINDER (07) - BRAKES

1

182445A1

MASTER CYLINDER,104.8mm Stroke

CYLINDER,MASTER See Figure 07-05

2шт.

2

D136430

TUBE

1шт.

3

142003A1

TUBE,7.94 mm OD, 224, 60 mm Length

2шт.

4

121730A2

SUPPORT

1шт.

5

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

5a

413870A1

ISOLATOR

M8 x 1.25

4шт.

6

892-11008

LOCK WASHER,8mm ID

7шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

8

121729A1

HOSE,7.94 mm ID x 52.00 mm, SAE 30R2 Type 1

2шт.

9

296171A1

HOSE,12.70 mm ID x 1275.00 mm, SAE 100R6

1225 mm (48-1/4 in); Reservoir Outlet; Attaches to return to tank tube; See figure 08-02

1шт.

10

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

5шт.

11

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

2шт.

12

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

13

1976943C1

RESERVOIR

If Used

1шт.

13a

184627A2

BRAKE FLUID TANK

Replaces 1976943C1

1шт.

14

131676A1

HOSE,7.94mm ID x 1590mm L

1590 mm (62-5/8 in); Reservoir Inlet; Attaches To Tee At Hydraulic Oil Filter; See Figure 08-02

1шт.

15

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

6шт.

16

309978A1

TUBE,7.94 mm OD, 854, 524 mm Length

Left-Hand

1шт.

17

309981A1

TUBE,7.94 mm OD, 854, 524 mm Length

Right-Hand

1шт.

18

322184A1

HOSE ASSY.

480 mm (18-15/16 in); Brake Tube To Adapter On Rear Axle; For Service Order 142007A1

2шт.

18

142007A1

HOSE,6.35mm ID x 625mm L

625 mm (24-5/8 in); Brake Tube To Adapter On Rear Axle

2шт.

19

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 19A

2шт.

19a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

21

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

22

D132982

PADDLE,26.87mm ID x 400mm L

400 mm (15-3/4 in)

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

24

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.
