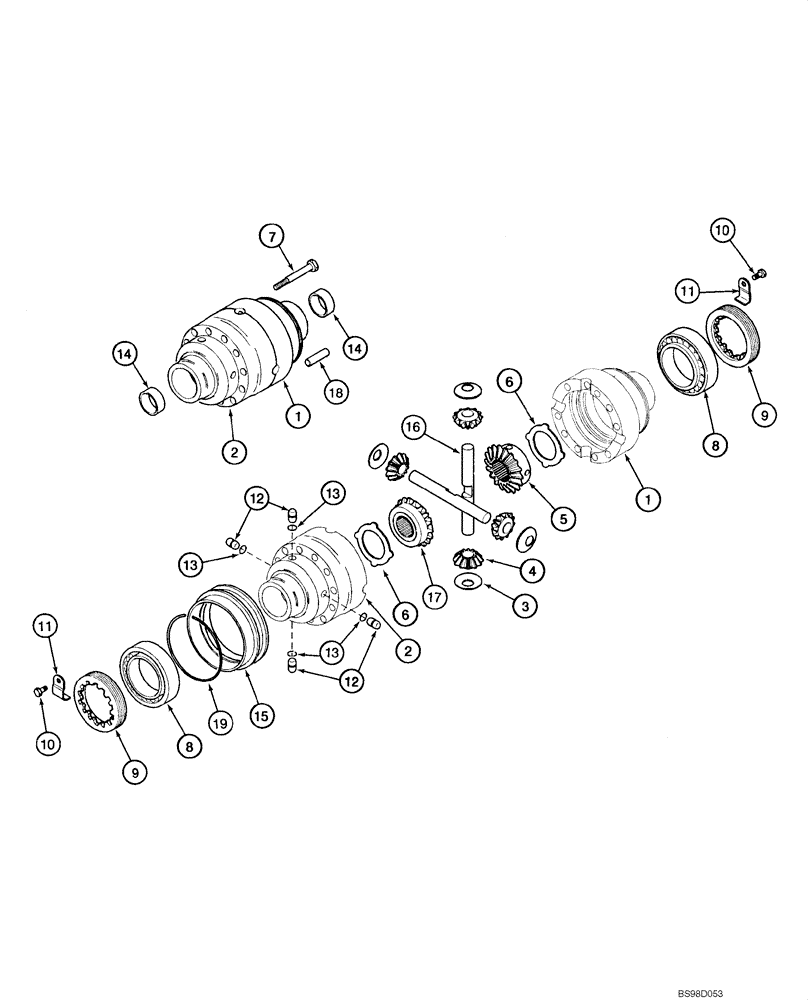

Запчасти Case 570MXT (06-28A) - AXLE, REAR DRIVE - DIFFERENTIAL (87422891 AXLE / 4 SPIDER DIFFERENTIAL) (06) - POWER TRAIN

87422891

AXLE, REAR

AXLE REAR Incl. Ref 1 - 19; Four Spider Differential; Also Includes Parts On Figures 06-27 - 06-31, 07-01, 07-02; Four Spider Differential; If Used

1шт.

87422891R

REMAN-REAR AXLE

Remanufactured, Rear, 4 Spider Differential

1шт.

87422891C

CORE-REAR AXLE

Return Part Number Rear, 4 Spider Differential

1шт.

384952A1R

REMAN-AXLE

Reman For New P/N 87422891

1шт.

384952A1C

CORE-AXLE

Return Part Number Four Spider Differential

1шт.

87422527

SET

Differential Service Kit For Converting 2 Spider Differentials to 4 Spider Differentials; Incl. Ref 1 - 6, 8, 12 - 14, 16 - 18

1шт.

292268A1

HOUSING

Differential, Incl. Ref 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Housing, Flange Half

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Plain Half

1шт.

294192A1

SET

Differential Gear Set, Service Replacement, Incl. Ref 3 - 6, 16, 17

1шт.

3

NSS

NOT SOLD SEPARAT

Thrust, Spherical

4шт.

4

NSS

NOT SOLD SEPARAT

Sun Gear, 12T, No Longer Sold Separately, Must Be Replaced As a Set, For Service, Order 294192A1 Gear Set Kit

4шт.

5

NSS

NOT SOLD SEPARAT

Side Pinion Gear, No Longer Sold Separately, Must Be Replaced As a Set, For Service, Order 294192A1 Gear Set Kit

1шт.

6

NSS

NOT SOLD SEPARAT

2шт.

7

S300976

BOLT,M12 x 1.5 x 90mm

M12 x 90; 12.9

10шт.

8

E135785

BEARING

2шт.

9

P3034505

NUT

Lock Ring

2шт.

10

112486A1

BOLT,Hex, M6 x 12

2шт.

11

175959A1

BRACKET

Bracket

2шт.

12

292207A1

PIN

4шт.

13

292208A1

O-RING

4шт.

14

190452A1

BUSHING

2шт.

15

191067A1

SLEEVE

1шт.

294192A1

SET

Differential Gear Set, Service Replacement, Incl. Ref 3 - 6, 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

Shaft, No Longer Sold Separately, Must Be Replaced As a Set, For Service, Order 294192A1 Gear Set Kit

2шт.

17

NSS

NOT SOLD SEPARAT

Side Pinion Gear, No Longer Sold Separately, Must Be Replaced As a Set, For Service, Order 294192A1 Gear Set Kit

1шт.

18

D143033

DOWEL

12 x 40 mm

2шт.

19

175961A1

RING, LOCKING

RING, LOCK

1шт.
