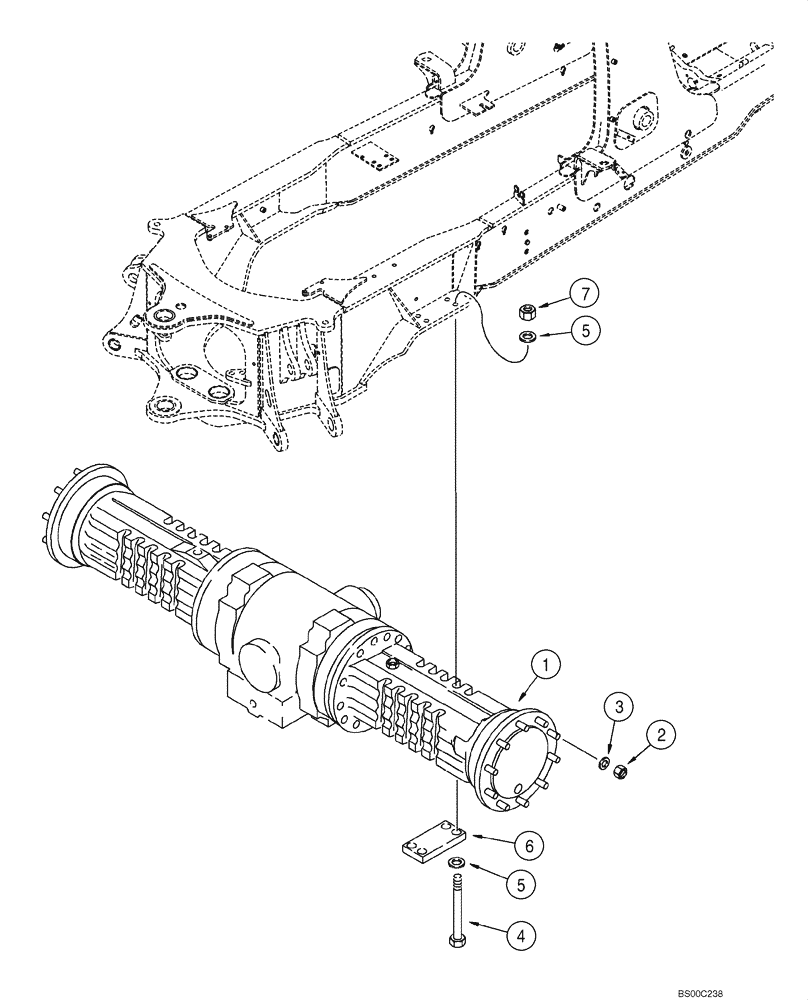

Запчасти Case 570MXT (06-25) - AXLE, REAR DRIVE - MOUNTING (06) - POWER TRAIN

1

384952A1

AXLE, REAR

AXLE REAR See Figure(s) 06-27 - 06-31, 07-01, 07-02; Two Spider Differential; If Used

1шт.

1

87350707

REMAN-AXLE

Remanufactured, 384952A1 Axle

1шт.

1

87350708

CORE-AXLE

Return Part Number 384952A1 Axle, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assembly

1шт.

1

87422891

AXLE, REAR

AXLE REAR See Figure(s) 06-27 - 06-31, 07-01, 07-02; Four Spider Differential; If Used

1шт.

1

87422891R

REMAN-REAR AXLE

Remanufactured, 87422891 Axle,

1шт.

1

87422891C

CORE-REAR AXLE

Return Part Number, 87422891 Axle, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assembly

1шт.

1

384952A1R

REMAN-AXLE

Reman For New P/N 87422891

1шт.

1

384952A1C

CORE-AXLE

Return Part Number Four Spider Differential

1шт.

2

D138492

NUT,M22 X 1.5 - 6 HVY HEX

22 mm

20шт.

3

87313544

WASHER,22mm ID x 44mm OD x 5 mm Thk

22.52 ID x 44.0 OD x 5.0 mm thk, Hardened; Replaces D138380 22.80 ID x 44.5 OD x 5.56 mm thk Hardened Washer Used On Some Models

20шт.

4

827-20230

BOLT,Hex, M20 x 2.5 x 230mm, Cl 10.9

8шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

16шт.

6

117933A1

LARGE PLATE

PLATE, LARGE

2шт.

7

829-1420

NUT,M20, Cl 10

8шт.
