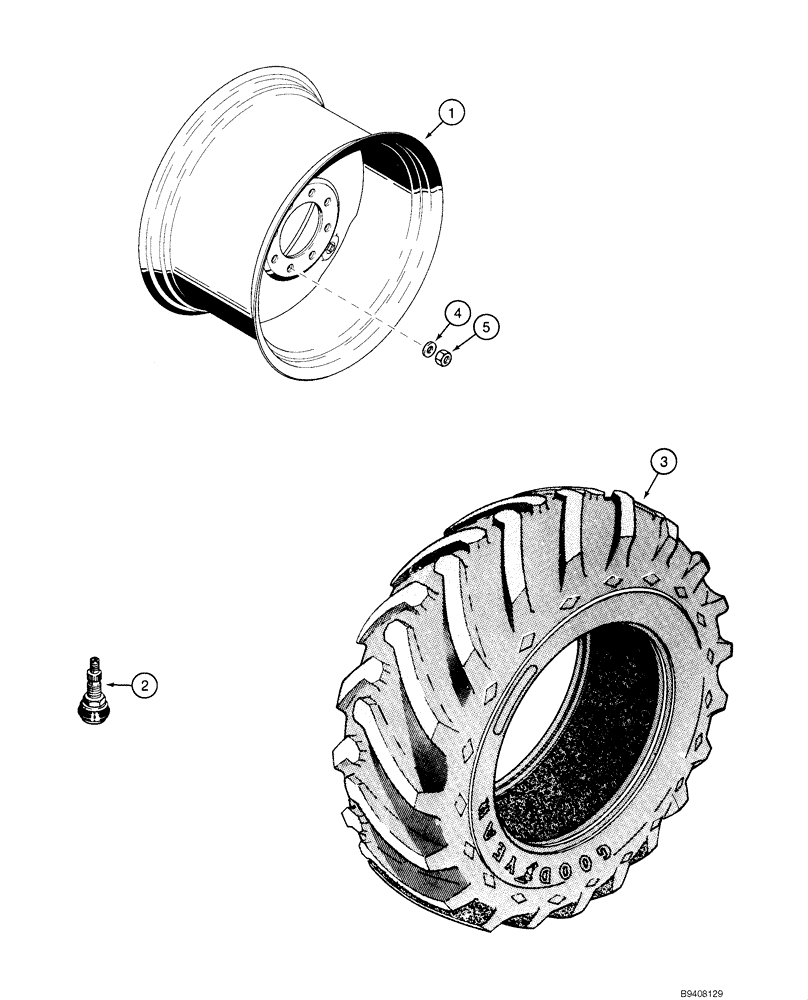

Запчасти Case 570MXT (06-24) - WHEELS, REAR - TIRES (06) - POWER TRAIN

1

104907A1

WHEEL,W16Lx24, 10 Holes, CASE Power Tan

19.5L x 24 Tires - 10 Ply or 14 Ply; Two Wheel or Four Wheel Drive

2шт.

2

A20058

VALVE STEM

2шт.

3

REF

INSTRUCTION

Tire, Purchase Locally

2шт.

1

119241A1

WHEEL,W15Lx24, 10 Holes, CASE Power Tan

17.5L x 24 Tires - 10 Ply; Two Wheel or Four Wheel Drive

2шт.

2

A20058

VALVE STEM

2шт.

3

REF

INSTRUCTION

Tire, Purchase Locally

2шт.

4

D138380

WASHER,22.8mm ID x 44.5mm OD x 5.56mm Thk

Wheel Nuts

20шт.

5

D138492

NUT,M22 X 1.5 - 6 HVY HEX

22 mm; Wheel Nuts

20шт.
