Артикул
Название
Примечание
Количество
329081A3
TRANSMISSION
Two Wheel Drive, Incl. Ref 1 - 45; Also Includes Parts On Figures 06-13 - 06-22; Replaces 329081A1, 329081A2
1шт.
329081A3R
REMAN-TRANSMISSION
Remanufactured Transmission
1шт.
329081A3C
CORE-TRANSMISSION
Return Part Number
1шт.
329082A3
TRANSMISSION
Four Wheel Drive, Incl. Ref 1 - 45; Also Includes Parts On Figures 06-13 - 06-23; Replaces 329082A1, 329082A2
1шт.
329082A3R
REMAN-TRANSMISSION
Remanufactured Transmission
1шт.
329082A3C
CORE-TRANSMISSION
Return Part Number
1шт.

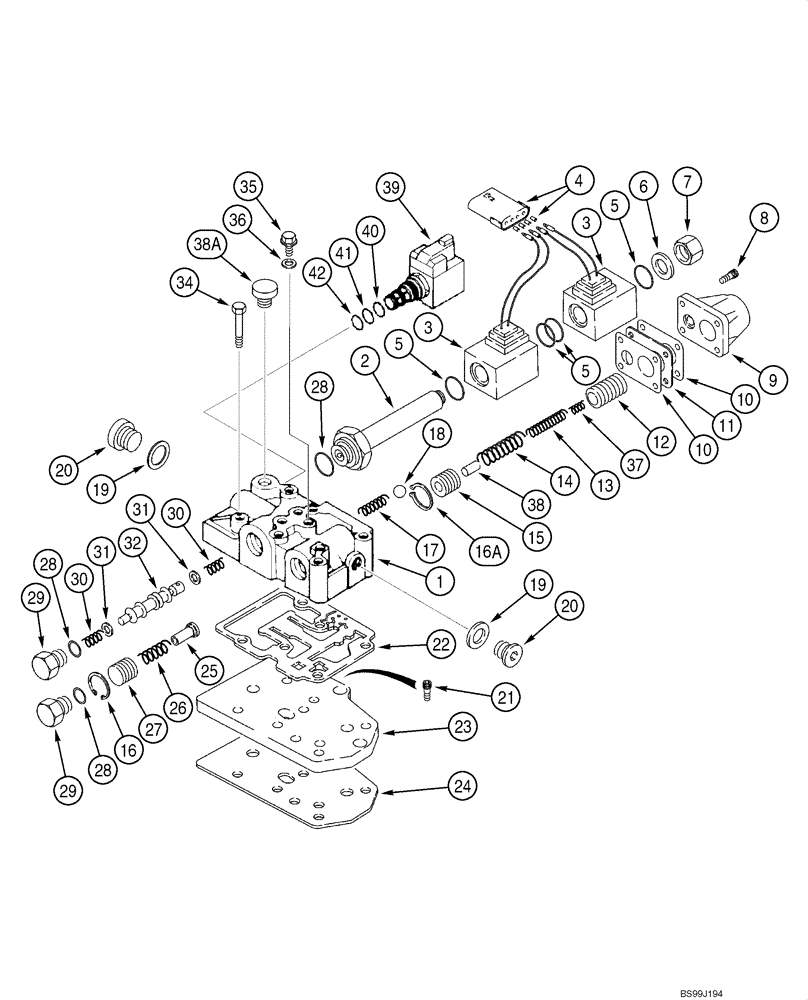

335640A2
VALVE
2WD Transmission Control, Incl. Ref 1 - 45, Serial Range: -JJG0380297
1шт.
335640A2
VALVE
4WD Transmission Control, Incl. Ref 1 - 45, Serial Range: -JJG0380292
1шт.
1
NSS
NOT SOLD SEPARAT
Housing
1шт.
2
190442A1
PLUNGER
1шт.
3
190443A1
COIL
2шт.
4
190437A1
FITTING
1шт.
5
181136A1
O-RING
4шт.
6
181273A1
COPPER WASHER
1шт.
7
181272A1
PLUG
1шт.
8
864-6020
HEX SOC SCREW,M6 x 20mm, Cl 8.8
4шт.
9
181251A1
COVER
1шт.
10
181256A1
GASKET
Cover Gasket
2шт.
11
190439A2
SPACER
1шт.
12
190438A2
PISTON
1шт.
13
190436A1
SPRING
1шт.
14
190441A1
SPRING
1шт.
15
181234A2
PISTON
1шт.
16a
368436A1
CIRCLIP
1шт.
17
181261A1
SPRING
1шт.
18
181146A1
BALL
1шт.
19
181107A1
COPPER WASHER
2шт.
20
181103A1
PLUG
2шт.
21
864-8020
HEX SOC SCREW,M8 x 20mm, Cl 8.8
Not Included In Assembly, Purchase Separately
3шт.
23
181207A1
PLATE
Not Included in Assembly, Purchase Separately
1шт.
25
181254A1
SHAFT
1шт.
26
181260A1
SPRING
1шт.
27
181255A2
PISTON
Flow Divider
1шт.
28
181137A1
O-RING
3шт.
29
181258A1
PLUG
2шт.
30
334724A1
SPRING
2шт.
31
181253A1
SPACER
2шт.
32
334725A1
PLUNGER
Spool, Forward/Reverse
1шт.
34
814-8080
BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8
Not Included In Assembly, Purchase Separately
6шт.
35
181100A1
PLUG,1/8 CAS x 8
4шт.
36
934667R1
SEALING RING,M10 x 14 x 1
4шт.
37
190435A1
SPRING
1шт.
38
190440A1
PIN
1шт.
38a
NSS
NOT SOLD SEPARAT
Plug; Plastic; For Shipping Purposes Only
1шт.
39
349295A1
SOLENOID VALVE
Differential Lock Solenoid Valve, Incl. Ref 40 - 45
1шт.
40
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
43
NSS
NOT SOLD SEPARAT
Valve, Solenoid, Cartridge, Component Parts Not Serviced Separately, Not Illustrated
1шт.
44
298614A1
SOLENOID
Not Illustrated
1шт.
45
NSS
NOT SOLD SEPARAT
Nut, Not Illustrated
1шт.
368437A2
KIT
Snap Ring, Without Tools, Includes 10, 15, 16A, 22, 25, Plus Instructions; Replaces 368437A1
1шт.
368438A2
KIT
Snap Ring, With Tools, Includes 10, 15, 16A, 22, 25, Plus 368439A1 Guide Tool and 368440A1 Pushing Tool for Snap Ring Service; Replaces 368438A1
1шт.
Выбрано товаров: 56
