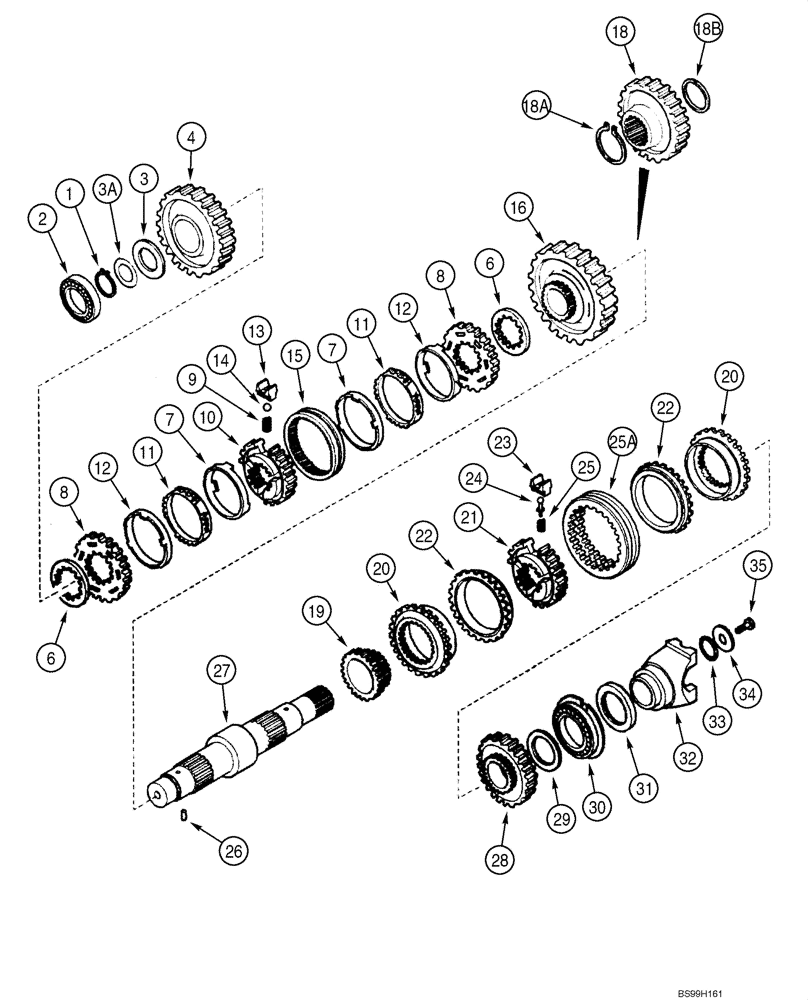

Запчасти Case 570MXT (06-20) - TRANSMISSION ASSY - SHAFT, SECONDARY (06) - POWER TRAIN

87396486

TRANSMISSION

Two Wheel Drive, Incl. Ref 1 - 35; Also Includes Parts On Figures 06-13 - 06-22B; Replaces 329081A1, 329081A2, 329081A3, 87456845

1шт.

87396486R

REMAN-TRANSMISSION

Remanufactured Transmission - Two Wheel Drive

1шт.

87396486C

CORE-TRANSMISSION

Return Part Number

1шт.

87396487

TRANSMISSION

Four Wheel Drive, Incl. Ref 1 - 35; Also Includes Parts On Figures 06-13 - 06-23; Replaces 329082A1, 329082A2, 329082A3, 87456846

1шт.

87396487R

REMAN-TRANSMISSION

Remanufactured Transmission - Four Wheel Drive

1шт.

87396487C

CORE-TRANSMISSION

Return Part Number

1шт.

1

181118A1

RING, LOCKING,36.5mm ID x 1.75mm Thk

RING, LOCK

1шт.

2

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

1шт.

3

358649A1

THRUST WASHER

Thrust

1шт.

3a

358650A1

SHIM,0.05mm Thk

1шт.

3a

358651A1

SHIM,0.1mm Thk

1шт.

3a

358652A1

SHIM,0.3mm Thk

1шт.

3a

196454A1

SHIM,0.5mm Thk

1шт.

4

358648A1

PINION,43T

Gear, 43T, Driven, Second

1шт.

6

244109A1

SPACER

4шт.

190427A1

SYNCHRONIZER,90T

KIT, Synchronizing Service, Incl. Ref 7 - 15

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

2шт.

8

NSS

NOT SOLD SEPARAT

Ring

2шт.

9

384773A1

COIL SPRING

3шт.

10

NSS

NOT SOLD SEPARAT

Hub

1шт.

11

NSS

NOT SOLD SEPARAT

Ring

2шт.

12

NSS

NOT SOLD SEPARAT

Ring

2шт.

13

326865A1

SPACER

Replaces 384772A1

3шт.

14

384769A1

BALL

3шт.

15

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

16

358647A1

PINION,49T

Gear, 49T, Driven, First

1шт.

18

358656A1

GEAR,44T

Drive, Four Wheel Drive

1шт.

18a

358654A1

RING, SNAP,65.5mm ID, Ext

RING SNAP Four Wheel Drive

1шт.

18b

358655A1

RING, SNAP,67.4mm ID, Ext

RING SNAP Four Wheel Drive

1шт.

19

358282A1

GEAR,23T

Driven, Fourth

1шт.

366398A1

SYNCHRONIZER

KIT, Synchronizing Service, Incl. Ref 20 - 25A

1шт.

20

NSS

NOT SOLD SEPARAT

Ring

2шт.

21

NSS

NOT SOLD SEPARAT

Hub

1шт.

22

NSS

NOT SOLD SEPARAT

Ring

2шт.

23

NSS

NOT SOLD SEPARAT

Plate

3шт.

24

NSS

NOT SOLD SEPARAT

Pin

3шт.

25

NSS

NOT SOLD SEPARAT

Spring

3шт.

25a

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

26

181108A1

SPLIT PIN,3mm OD x 8mm L

1шт.

27

366366A1

SHAFT

Secondary, Two Wheel Drive

1шт.

27

358653A1

SHAFT

Secondary, Four Wheel Drive

1шт.

28

358283A1

DRIVEN GEAR,33T

Third

1шт.

29

358639A1

WASHER

Thrust, 68 x 45 x 4 mm

1шт.

30

181130A1

BEARING, BALL,45 mm ID x 106.5 mm OD x 25 mm

1шт.

31

181123A1

OIL SEAL,60mm ID x 75mm OD x 8mm Thk

1шт.

32

233284A1

YOKE

Rear Drive Shaft

1шт.

33

181144A1

O-RING,39.6mm ID x 3.53mm Width

1шт.

34

181165A1

WASHER,12.5mm ID x 52mm OD x 5mm Thk

1шт.

35

P3533055

SCREW,M12 x 1.25 x 25mm

1шт.
