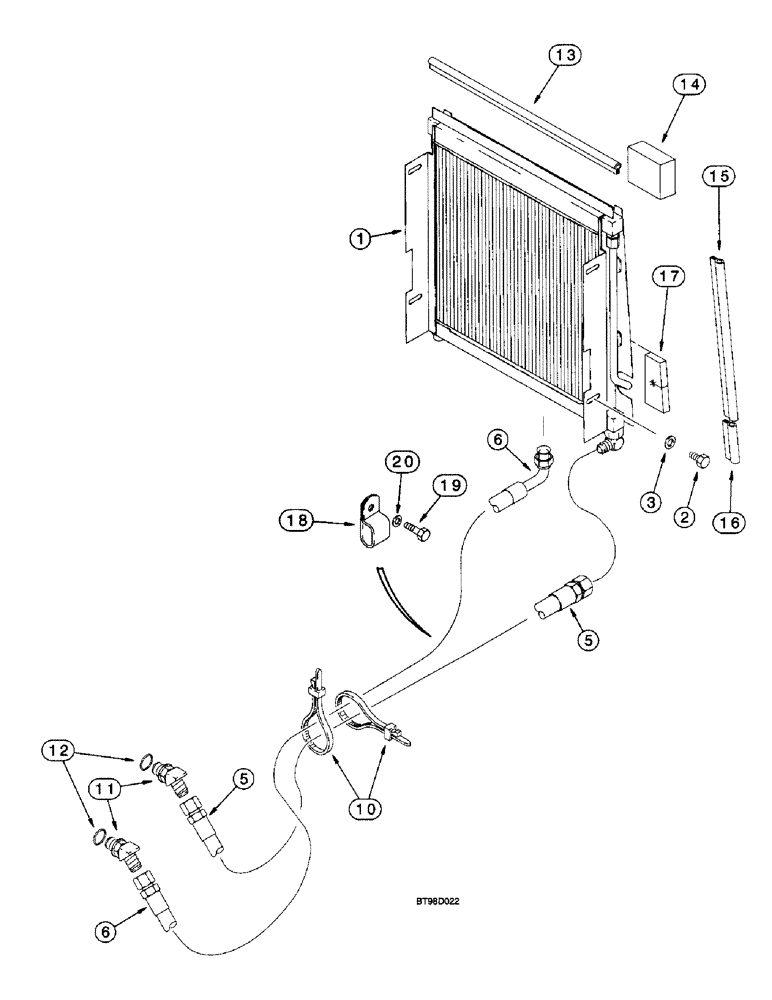

Запчасти Case 570LXT (6-024) - TRANSMISSION COOLING SYSTEM, MODELS W/ AIR CONDITIONING (W/ FLARED FITTINGS AT COOLER) (06) - POWER TRAIN

1

291288A1

COOLER, OIL

COOLER hyd. oil, hvy dty, used with 239739A1 heavy duty radiator on Fig. 2-4, uses radiator upper mounting bolts, see Fig. 9-96 for hardware and Fig. 8-8 for additional cooler hyd. routing, Incl: Ref 17, Incl: P/N's 218-5062, 218-5107, 316717A1, 316718A1

1шт.

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss

3шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj. O-ring boss

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

316717A1

TUBE

cooler, right hand

1шт.

316718A1

TUBE

cooler, left hand

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

5

292962A1

HOSE

transmission to cooler inlet, 1240 mm, 48-7/8 inch long

1шт.

6

243805A2

HOSE

cooler outlet to transmission, 1563 mm, 61-9/16 inch long

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, retaining, 15 inch

3шт.

11

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

45°, 7/8-14 inch flare x adj. O-ring boss, Incl. Ref 12

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

13

233972A1

SEAL

horizontal, cooler to wrapper, 564 mm, 22-7/32 inch long

1шт.

14

234719A1

SEAL

SEAL upper corner, 70 x 100 x 32 mm

2шт.

345-44

ADHESIVE

spray can, 3M No. 74, 23 ounce

1шт.

15

233970A1

SEAL

vertical, cooler to wrapper, 472 mm, 18-5/8 inch long

2шт.

16

233971A1

SEAL

lower corner, 103 mm, 4-1/16 inch long

2шт.

17

234499A1

SEAL

furnished with cooler, 45 x 120 x 15 mm

2шт.

18

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

P-type, double

1шт.

19

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

hex, full threads, 12 - 1.75 x 25 mm

1шт.

20

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

flat, 13.5 x 24 x 2.5 mm

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

2шт.
