(6-018) - DRIVE SHAFT FOR FRONT DRIVE AXLE, FRONT DRIVE AXLE TO TRANSMISSION

Запчасти Case 570LXT (6-018) - DRIVE SHAFT FOR FRONT DRIVE AXLE, FRONT DRIVE AXLE TO TRANSMISSION (06) - POWER TRAIN

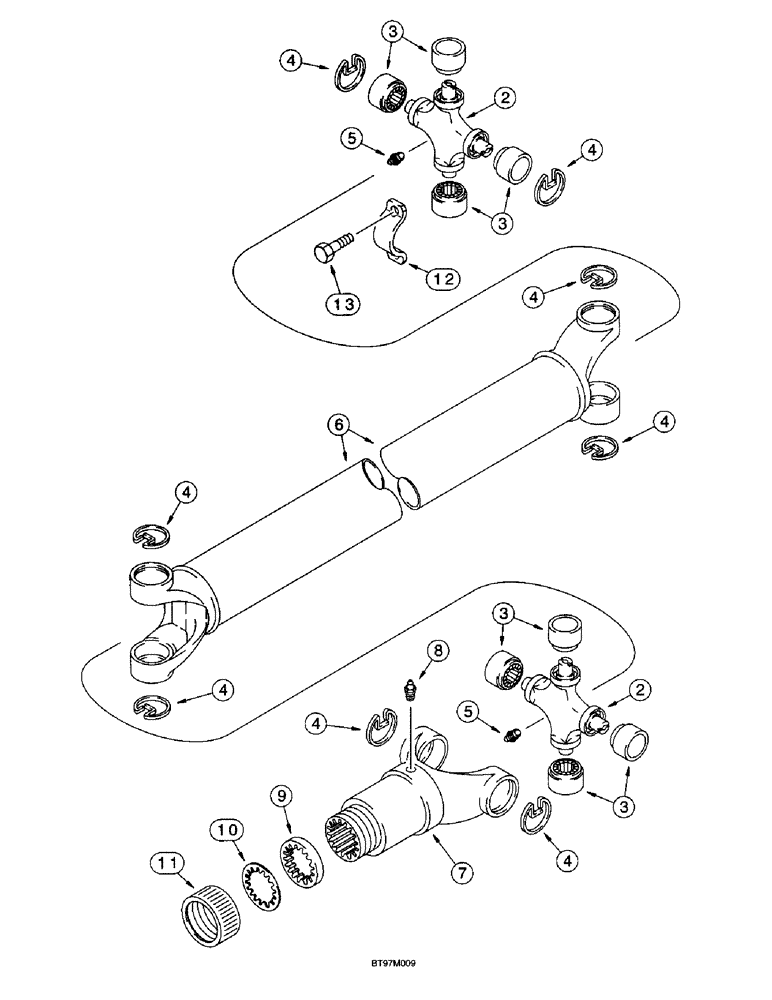

Схема запчастей Case 570LXT - (6-018) - DRIVE SHAFT FOR FRONT DRIVE AXLE, FRONT DRIVE AXLE TO TRANSMISSION (06) - POWER TRAIN
12
4
4
3
4
5
3
3
8
4
10
2
13
6
5
4
4
9
4
7
4
3
2
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

284713A1

DRIVE SHAFT

SHAFT ASSEMBLY, drive, front drive axle, Includes: Ref. 5-8, and P/N's 144278A1, D149860

1шт.

2

144278A1

PACKAGE,SERVICE

KIT universal joint, Includes: Ref. 2-4

2шт.

2

NSS

NOT SOLD SEPARAT

JOINT universal, drive shaft

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING universal joint

4шт.

4

NSS

NOT SOLD SEPARAT

RING retaining

4шт.

5

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, straight, 1/4-28 taper x 11/16 inch

2шт.

6

NSS

NOT SOLD SEPARAT

SHAFT drive, transmission to front axle

1шт.

7

144279A1

YOKE

tube, splined, to front axle

1шт.

8

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, straight, 1/4-28 taper x 11/16 inch

1шт.

9

D149860

SERVICE KIT

KIT, SERVICE - Dust cap, Incl. Ref 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER cork

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER steel

1шт.

11

NSS

NOT SOLD SEPARAT

CAP dust seal retaining

1шт.

12

90-6682T1

CLAMP

RETAINER drive shaft, strap, not included with the drive shaft assembly, purchase separately

2шт.

13

D137627

BOLT,Hex Flg, 5/16" - 24 x 19.05mm

special

4шт.
