Запчасти Case 570LXT (5-02) - STEERING WHEEL AND STEERING COLUMN (05) - STEERING

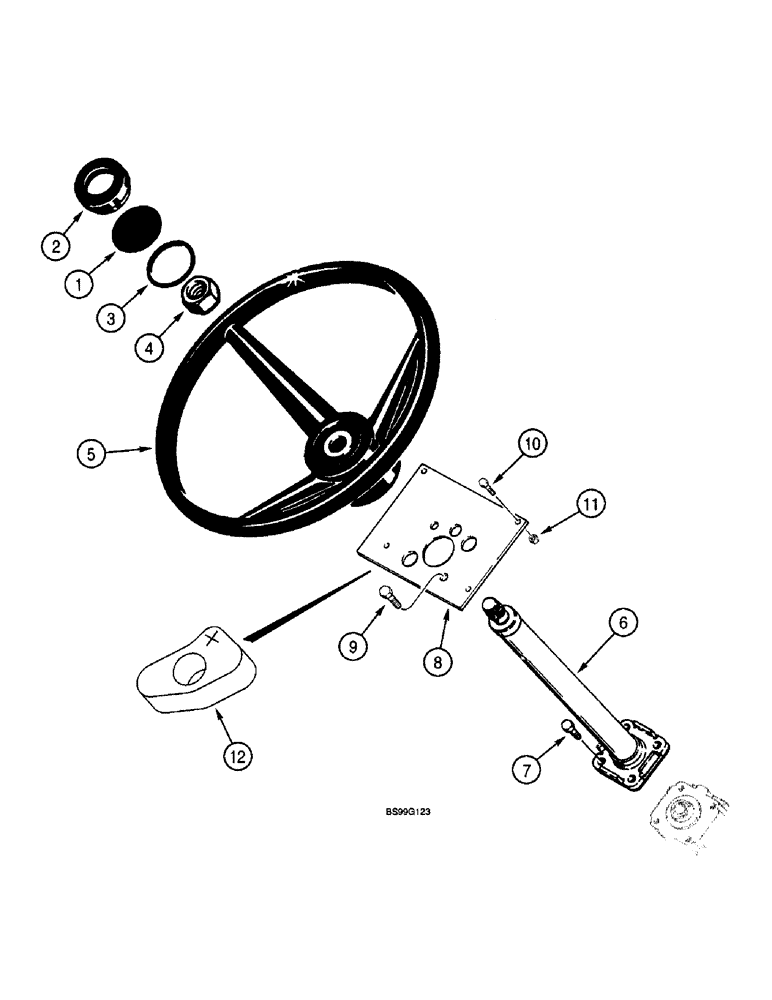

Схема запчастей Case 570LXT - (5-02) - STEERING WHEEL AND STEERING COLUMN (05) - STEERING
1
8
5
10
2
11
9
12
7
3
6
4

Артикул

Название

Примечание

Количество

1

1342054C1

PLASTIC PLUG

INSERT plastic, black

1шт.

2

114882A1

CAP

steering wheel

1шт.

3

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

Cap -227, 70 Duro, 2.109" ID x .139" Thk

1шт.

4

1959509C1

NUT,Hex, M20 x 5, RH

lock, special, steering wheel retaining

1шт.

5

A65544

STEERING WHEEL

Tractor

1шт.

6

142930A2

STEERING COLUMN

COLUMN ASSEMBLY, steering, see Figure 5-08, Replaces: 142930A1

1шт.

7

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

8

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

2шт.

9

183085A2

LARGE PLATE

PLATE mounting, steering column

1шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, full threads, 8 - 1.25 x 20 mm

4шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

12

337482A1

PAD

foam seal, adhesive back

1шт.

Выбрано товаров: 12
