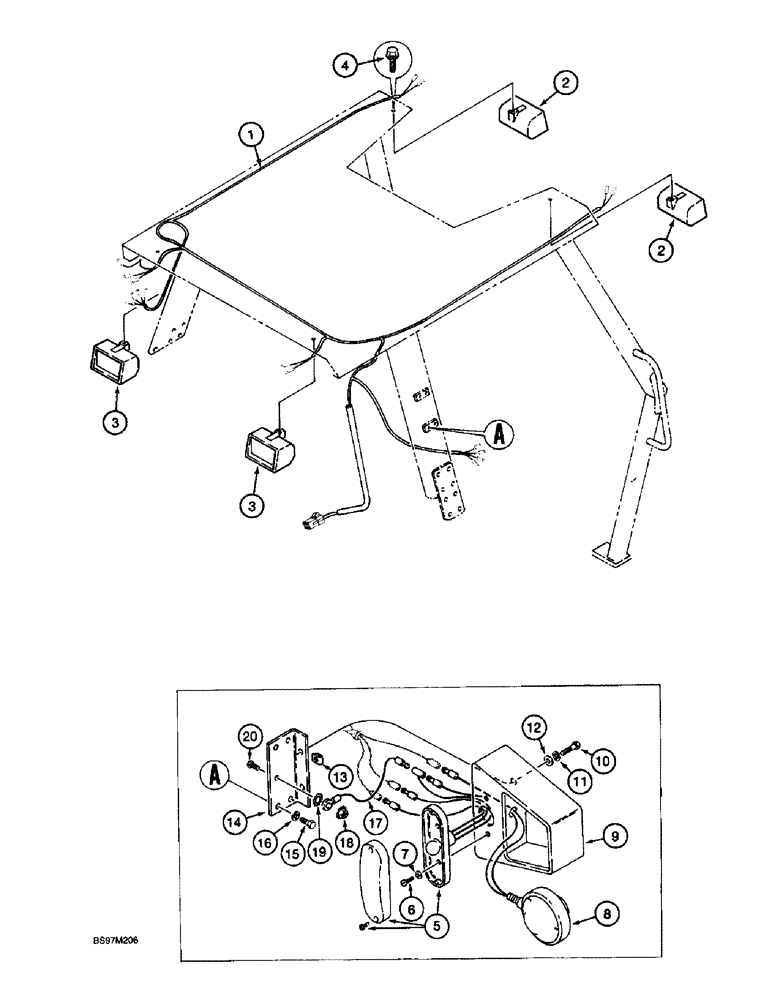

Запчасти Case 570LXT (4-30) - TRACTOR LAMP ELECTRICAL CIRCUIT, 570LXT SHORT ROPS CANOPY W/MINIMAL ROOF (04) - ELECTRICAL SYSTEMS

1

295065A1

HARNESS

ROPS canopy, lamps, 570LXT short ROPS canopy models with minimal roof, attaches to side console harness

1шт.

2

109080A1

LAMP,12V, 50W

ASSEMBLY, front driving, see Figure 4-36

2шт.

3

109081A1

SPOTLIGHT

LAMP ASSEMBLY, flood and work, rear, see Figure 4-36

2шт.

4

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

hex serrated flange, 3/8 NC x 1/2 inch

4шт.

5

D121152

LAMP,12V

ASSEMBLY, stop and tail, red, see Figure 4-38

2шт.

6

187-1917

SELF-TAP SCREW,Pan Hd, #8-16 x 5/8"

SCREW self tapping, pan head Phillips, No. 8-16 x 5/8 inch

4шт.

7

495-21019

WASHER,#8

4шт.

8

D122121

LAMP,12V

ASSEMBLY, turn signal and flasher, see Figure 4-40

2шт.

9

D120124

BRACKET

side lamps

2шт.

10

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

4шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

4шт.

13

131-636

SPRING NUT,J, Ret, 5/16"-18

J-type, 5/16 inch NC

4шт.

14

D134875

BRACKET

mounting, side lamp, Serial Range: bracket-canopy

2шт.

15

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

D134918

ELECTRICAL WIRE

WIRE ground, flasher and stop and tail lamps, to canopy mounting bracket

2шт.

18

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

2шт.

19

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

2шт.

20

459-1106

SCREW,Slotted Pan Hd, #10-32 x 3/8"

machine, pan head slotted, No. 10 NF x 3/8 inch

2шт.
