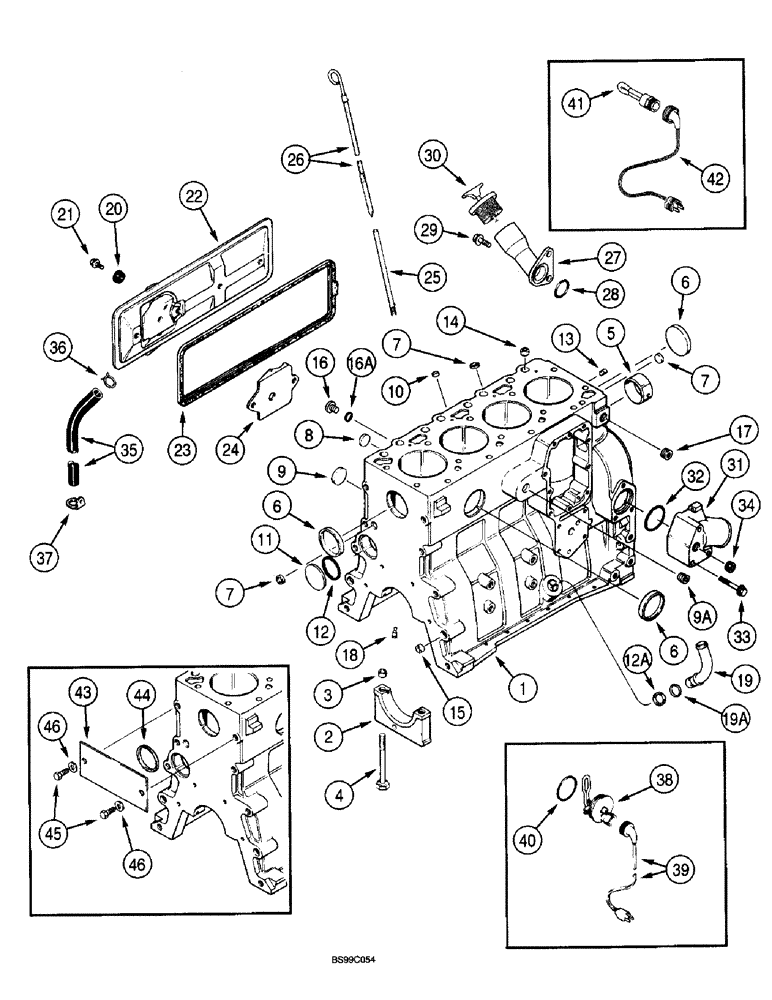

Запчасти Case 570LXT (2-48) - CYLINDER BLOCK, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

236302A1

ENGINE ASSEMBLY

4-390 Emissions Certified, complete, for service order 302562A1 basic engine below

1шт.

The engine part number is stamped on a metal tag, which is mounted on the front gear cover.

1шт.

302562A1R

REMAN-BASIC ENGINE

Engine Assembly, basic, remanufactured, component parts shown on this page do not apply to the remanufactured assembly; See Note

1шт.

302562A1C

CORE-BASIC ENGINE

Return Part Number, use this part number to return basic engine core for credit when using a remanufactured assembly

1шт.

302562A1

BASIC ENGINE

ENGINE ASSEMBLY, basic, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust maifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley and belt tensioner

1шт.

JR933649

REMAN-SHORT ENGINE

Block Assembly, short, remanufactured, component parts shown on this page do not apply to the remanufactured assembly

1шт.

JC933649

CORE-SHORT ENGINE

Return Part Number, use this part numver to return short block core for credit when using a remanufactured assembly

1шт.

J933649

SHORT ENGINE

BLOCK ASSEMBLY, short, new, Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes Ref. 1

1шт.

1

87444172

BLOCK ASSY.

BLOCK ASSEMBLY, stripped, engine, order J933220 block hardware kit shown below also, Includes Ref. 2-8

1шт.

2

J903492

BEARING CAP

CAP main bearing, Includes Ref. 3

5шт.

3

J900068

BEARING WASHER

RING dowel, 18 mm OD, main bearing, Serial Range: cap-block

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

SCREW, , Main bearing cap, Special Hex Flg Hd, M12 x 1.5 x 119

10шт.

5

REF

INSTRUCTION

BUSHING camshaft front, see Figure 2-42, Ref. 2

1шт.

6

A77782

PLUG

expansion, 58 mm OD

1шт.

7

J900956

PLUG

expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

Expansion Cup, 1", Stainless

2шт.

J933220

PACKAGE,SERVICE

KIT block hardware, Includes Ref. 9-18

1шт.

9

J900958

PLUG

expansion, 32 mm OD

2шт.

9a

A77505

PLUG

hex socket, 3/4 inch PT

1шт.

10

J900955

PLUG

expansion, 10 mm OD

1шт.

11

172599

PLUG,Exp, 2 3/8"

expansion, Welch, 60 mm OD

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

sealing, 57 mm ID

1шт.

12a

J920706

PLUG

expansion, 22 mm OD

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

dowel, locating, 16 mm long

2шт.

14

J902343

DOWEL

RING dowel, 16 mm OD

2шт.

15

J900068

BEARING WASHER

RING dowel, 18 mm OD

2шт.

16

J678923

PLUG,M10 x 1

hex socket, 10 mm, Includes Ref. 16A

3шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

Cl 7, 8.1MM ID x 1.6 Thk

1шт.

17

A77429

PLUG

hex socket, 1/2 inch PT

1шт.

17a

J678921

PLUG

hex socket, 14 mm, not shown, Includes Ref. 17B

1шт.

Not used in this application.

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

Sealing, Not shown 11.3MM ID x 2.2 Thk

1шт.

Not used in this application.

1шт.

17c

J932296

PLUG

timing sensor hole, not shown, Includes Ref. 17D

1шт.

Not used in this application.

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

sealing, not shown

1шт.

Not used in this application.

1шт.

17e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, M8 - 1.25 x 16 mm, 8.8, Not shown

1шт.

Not used in this application.

1шт.

18

J930139

NOZZLE CAP

NOZZLE piston cooling

4шт.

19

J931973

TUBE,0.875" OD

turbocharger oil drain, Replaces J903744 tube, not used in this application, Ref. 12A plug is installed in this port

1шт.

19a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

O-RING sealing, 18 mm ID, not used in this application

1шт.

20

J928759

SEALING WASHER

cover bolt

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

22

J925680

COVER

tappet

1шт.

23

J283767

GASKET,7.4mm Thk

tappet cover

1шт.

24

J907586

BAFFLE

tappet cover

1шт.

25

J905127

TUBE,9.52 mm OD x 180 mm L

dipstick

1шт.

26

J904287

DIPSTICK

oil level gauge

1шт.

27

J934190

TUBE

oil fill

1шт.

28

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING, 38 mm, 1-1/2 inch ID

1шт.

29

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

30

A77424

FILLER CAP

CAP oil fill tube

1шт.

31

J934877

HYD CONNECTOR

CONNECTION water inlet, Replaces J903102 connection

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING sealing, 50 mm ID

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

heavy hex flange, 10 - 1.5 x 75 mm, class 10.9

3шт.

34

A77429

PLUG

hex socket, 1/2 inch PT

2шт.

35

J918612

TUBE,360.00 mm

Breather 360.00 mm

1шт.

36

J904230

CLAMP,25.4mm

spring, hose

1шт.

37

J928989

CLIP

retaining

1шт.

196803A1

KIT

engine block heater, Includes Ref. 38-40

1шт.

38

NSS

NOT SOLD SEPARAT

ELEMENTengine heater, 120 volt, 750 watt

1шт.

39

196466A1

ELECTRIC CABLE

CABLE engine block heater

1шт.

40

J910517

O-RING

heater sealing, engine block

1шт.

309651A1

KIT

engine block heater, Includes Ref. 41-42

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT engine heater, 120 volt, 750 watt

1шт.

Install element in place of Ref. 9A, A77505 plug.

1шт.

42

196466A1

ELECTRIC CABLE

CABLE engine block heater

1шт.

323698A1

KIT

expansion plug repair, Includes Refs. 43-46

1шт.

43

322984A1

PLATE

cover, expansion plug repair kit

1шт.

Not part of engine assembly.

1шт.

44

J910530

SEAL

quad ring, expansion plug repair kit

1шт.

Not part of engine assembly.

1шт.

45

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

hex, full threads, 12 - 1.75 x 40 mm

2шт.

Not part of engine assembly.

1шт.

46

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

Not part of engine assembly.

1шт.
