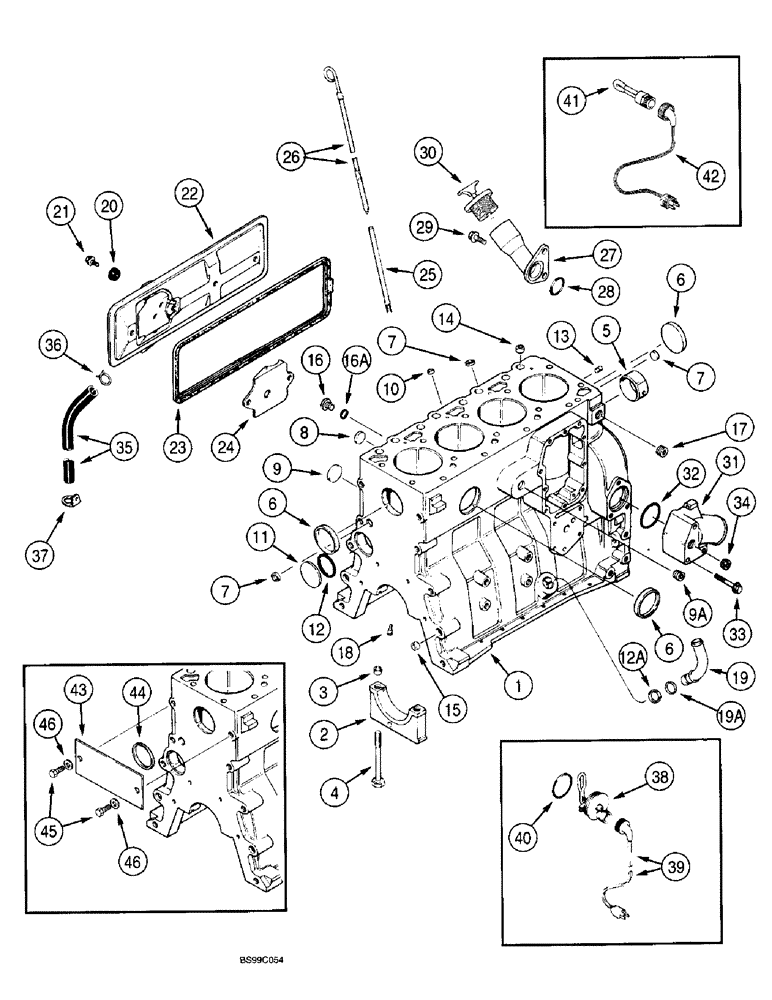

Запчасти Case 570LXT (2-44) - CYLINDER BLOCK, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

256510A1

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY, 4T-390 emissions certified, complete, for service order 234277A2 basic engine below

1шт.

The engine part number is stamped on a metal tag, which is mounted on the front gear cover.

1шт.

234277A2

BASIC ENGINE

Incl. all parts except: starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley, belt tensioner, turbocharger and aftercooler; See Note

1шт.

234277A2R

REMAN-BASIC ENGINE

Incl. all parts except: starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley, belt tensioner, turbocharger and aftercooler; See Note

1шт.

234277A2C

CORE-BASIC ENGINE

Return Number

1шт.

J933648

SHORT ENGINE

BLOCK ASSEMBLY, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes Ref. 1

1шт.

J933648R

SHORT ENGINE

BLOCK ASSEMBLY, short, remanufactured, component parts shown on this page do not apply to the remanufactured assembly

1шт.

J933648C

CORE-ENGINE

Return Number

1шт.

1

87444172

BLOCK ASSY.

BLOCK ASSEMBLY, stripped, engine, also order J933220 block hardware kit shown below, Includes Ref. 2, 4 - 8

1шт.

2

J903492

BEARING CAP

CAP main bearing, Includes Ref. 3

5шт.

3

J900068

BEARING WASHER

RING dowel, 18 mm OD, main bearing, Serial Range: cap-block

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

SCREW, , Main bearing cap, Special Hex Flg Hd, M12 x 1.5 x 119

10шт.

5

REF

INSTRUCTION

BUSHING camshaft front, see Figure 2-42, Ref. 2

1шт.

6

A77782

PLUG

PLUG expansion, 58 mm OD

1шт.

7

J900956

PLUG

PLUG expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

PLUG, , Expansion Cup, 1", Stainless

2шт.

J933220

PACKAGE,SERVICE

KIT block hardware, Includes: Ref. 9-18

1шт.

9

J900958

PLUG

PLUG expansion, 32 mm OD

2шт.

9a

A77505

PLUG

PLUG hex socket, 3/4 inch PT

1шт.

10

J900955

PLUG

PLUG expansion, 10 mm OD

1шт.

11

172599

PLUG,Exp, 2 3/8"

PLUG expansion, Welch, 60 mm OD

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

O-RING sealing, 57 mm ID

1шт.

12a

J920706

PLUG

PLUG expansion, 22 mm OD, not used in this application, Ref. 19, J931973 turbocharger oil drain tube is installed in this port

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

PIN dowel, locating, 16 mm long

2шт.

14

J902343

DOWEL

RING dowel, 16 mm OD

2шт.

15

J900068

BEARING WASHER

RING dowel, 18 mm OD

2шт.

16

J678923

PLUG,M10 x 1

PLUG hex socket, 10 mm, Includes Ref. 16A

3шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

O-RING, Cl 7, 8.1MM ID x 1.6 Thk, Plug

1шт.

17

A77429

PLUG

PLUG hex socket, 1/2 inch PT, Includes Ref. 17A

1шт.

17a

J678921

PLUG

PLUG hex socket, 14 mm, not used in this application, not shown

1шт.

Ref. 17A - 17E are not used in this application.

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

O-RING, , Sealing, Not used in this application, Not shown 11.3MM ID x 2.2 Thk

1шт.

Ref. 17A - 17E are not used in this application.

1шт.

17c

J932296

PLUG

PLUG timing sensor hole, not used in this application, not shown

1шт.

Ref. 17A - 17E are not used in this application.

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

O-RING sealing, not used in this application, not shown

1шт.

Ref. 17A - 17E are not used in this application.

1шт.

17e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, M8 - 1.25 x 16 mm, 8.8, Not used in this application, Not shown

1шт.

Ref. 17A - 17E are not used in this application.

1шт.

18

J930139

NOZZLE CAP

NOZZLE piston cooling

4шт.

19

J931973

TUBE,0.875" OD

TUBE turbocharger oil drain, Replaces J903744 tube

1шт.

19a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

O-RING sealing, 18 mm ID

1шт.

20

J928759

SEALING WASHER

SEAL cover bolt

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

2шт.

22

J925680

COVER

COVER tappet

1шт.

23

J283767

GASKET,7.4mm Thk

GASKET tappet cover

1шт.

24

J907586

BAFFLE

BAFFLE tappet cover

1шт.

25

J905127

TUBE,9.52 mm OD x 180 mm L

TUBE dipstick

1шт.

26

J904287

DIPSTICK

DIPSTICK oil level gauge

1шт.

27

J934190

TUBE

TUBE oil fill

1шт.

28

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING 38 mm, 1-1/2 inch ID

1шт.

29

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

BOLT heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

30

A77424

FILLER CAP

CAP oil fill tube

1шт.

31

J934877

HYD CONNECTOR

CONNECTION water inlet, Replaces J903102 connection

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING sealing, 50 mm ID

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

BOLT heavy hex flange, M10 - 1.5 x 75 mm, 10.9

3шт.

34

A77429

PLUG

PLUG hex socket, 1/2 inch PT

2шт.

35

J918612

TUBE,360.00 mm

Breather

1шт.

36

J904230

CLAMP,25.4mm

CLAMP spring, hose

1шт.

37

J928989

CLIP

CLIP retaining

1шт.

196803A1

KIT

KIT engine block heater, Includes Ref. 38-40

1шт.

38

NSS

NOT SOLD SEPARAT

ELEMENT engine heater, 120 volt, 750 watt, block

1шт.

39

196466A1

ELECTRIC CABLE

CABLE engine block heater

1шт.

40

J910517

O-RING

O-RING heater sealing, eng block

1шт.

309651A1

KIT

KIT engine block heater, Includes Ref. 41-42

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT engine heater, 120 volt, 750 watt, block

1шт.

Install element in place of Ref. 9A, A77505 plug.

1шт.

42

196466A1

ELECTRIC CABLE

CABLE engine block heater

1шт.

323698A1

KIT

KIT expansion plug repair, Includes: Ref. 43-46

1шт.

Not part of engine assembly.

1шт.

43

322984A1

PLATE

PLATE cover, expansion plug repair kit

1шт.

Not part of engine assembly.

1шт.

44

J910530

SEAL

SEAL quad ring, expansion plug repair kit

1шт.

Not part of engine assembly.

1шт.

45

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

BOLT hex, full threads, expansion plug repair kit, M12 - 1.75 x 40mm, 8.8

2шт.

Not part of engine assembly.

1шт.

46

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

WASHER, , Expansion Plug Repair Kit M13.5 x 24.5 x 3, HT

2шт.

Not part of engine assembly.

1шт.

A77887

PACKAGE,SERVICE

KIT engine overhaul, Includes: Ref. 47-54, not shown

1шт.

47

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

KIT piston standard, engine overhaul kit, see Figure 2-56

4шт.

48

J919053

PISTON PIN

PIN - piston, engine overhaul kit, See Figure 2-56

4шт.

49

A77465

BEARING SET

KIT bearing, upper and lower set, standard, engine overhaul kit, see Figure 2-56

4шт.

50

A77405

CRANKSHAFT BEARING

BEARING main, upper and lower set, standard, engine overhaul kit, see Figure 2-52

4шт.

51

A77896

BEARING SET

BEARING main, upper and lower set, standard, engine overhaul kit, see Figure 2-52

1шт.

52

A77870

SEAL PACKAGE

KIT gasket, valve grind, engine overhaul kit, see Figure 2-60

1шт.

53

J283333

CYLINDER HEAD GASKET,2.32mm Thk

GASKET head, standard, engine overhaul kit, see Figure 2-36

1шт.

54

A77673

GASKET KIT

KIT gasket oil pan, engine overhaul kit, see Figure 2-34

1шт.
