Запчасти Case 570LXT (2-30) - TURBOCHARGER ASSEMBLY, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

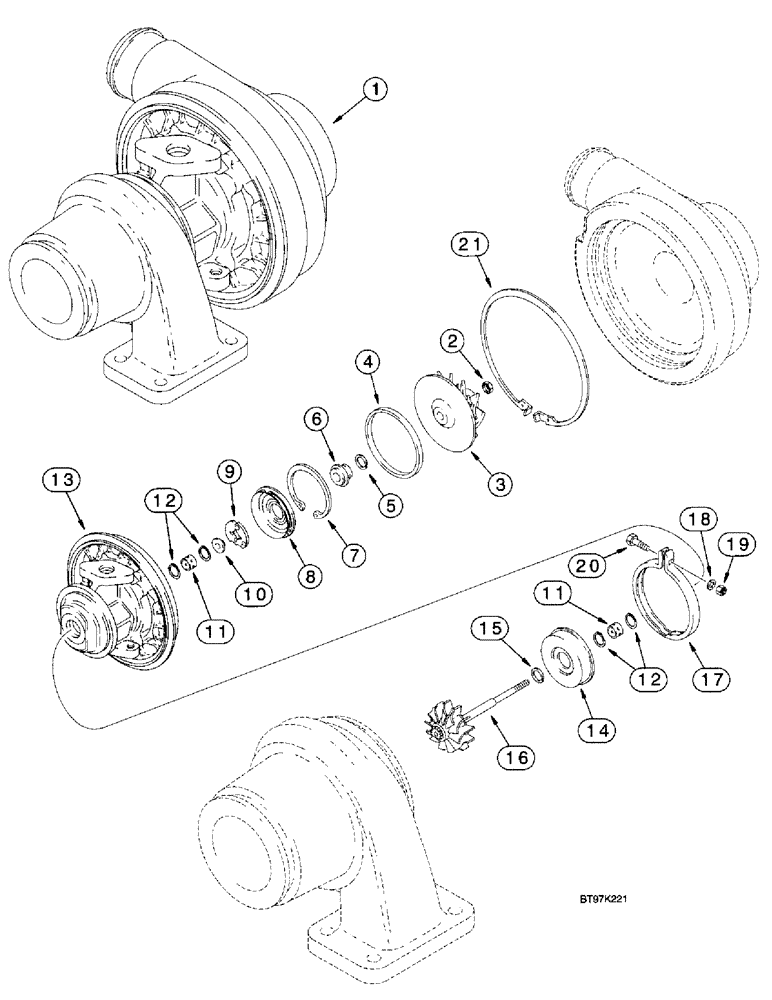

Схема запчастей Case 570LXT - (2-30) - TURBOCHARGER ASSEMBLY, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
16
8
13
4
15
21
10
12
18
3
7
19
11
2
12
20
5
14
17
9
1
8
11

Артикул

Название

Примечание

Количество

J802908

TURBOCHARGER

KIT turbocharger, large frame, Includes new turbocharger assembly, one J519807 turbo oil drain tube gasket and one J709861 turbocharger mounting gasket, not shown, Includes Ref. 1, 17-21

1шт.

JR802908

REMAN-TURBOCHARGER

Kit Turbocharger, Engine, Remanufactured, component parts shown on this page do not apply to the remanufactured assembly

1шт.

JC537886

CORE-TURBOCHARGER

Return Part Number, Use the part number to return turbocharger core for credit when using a remanufactured assembly

1шт.

J802798

TURBOCHARGER

TURBOCHARGER

1шт.

JR802798

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

JC537562

CORE-TURBOCHARGER

Return Part Number

1шт.

JR802290

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

JC535381

CORE-TURBOCHARGER

Return Part Number

1шт.

1

J580234

HOUSING ASSY.

CENTER HOUSING ASSEMBLY, Includes Refs. 2-16

1шт.

2

NSS

NOT SOLD SEPARAT

NUT hex, lock

1шт.

Part of overhaul kit J575205

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER turbocharger

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL plate

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL slit ring

1шт.

Part of overhaul kit J575205

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER oil

1шт.

7

NSS

NOT SOLD SEPARAT

RING snap

1шт.

Part of overhaul kit J575205

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE oil

1шт.

Part of overhaul kit J575205

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING turbocharger thrust

1шт.

Part of overhaul kit J575205

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING turbocharger

2шт.

Part of overhaul kit J575205

1шт.

12

NSS

NOT SOLD SEPARAT

RING retaining

4шт.

Part of overhaul kit J575205

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING turbo bearing

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD turbo heat

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL split ring

1шт.

Part of overhaul kit J575205

1шт.

15a

NSS

NOT SOLD SEPARAT

SEAL oil, not shown

1шт.

Part of overhaul kit J575205

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY, with shaft

1шт.

17

J531670

CLIP

CLAMP adjustable

1шт.

18

J535971

WASHER

WASHER flat, special

1шт.

19

J531582

NUT

NUT hex

1шт.

Part of overhaul kit J575205

1шт.

20

J531598

BOLT,Hex, M6 x 1 x 35, Stainless

BOLT hex

1шт.

Part of overhaul kit J575205

1шт.

21

J535800

RING, SNAP

RING SNAP RING snap

1шт.

J575205

PACKAGE, REPAIR

KIT overhaul, turbocharger, Includes: Refs. 2, 5, 7, 8, 9, 11, 12, 15, 15A, 19, and 20

1шт.

Выбрано товаров: 42
