Запчасти Case 570LXT (9-104) - AIR CONDITIONING, CONDENSER AND RECEIVER-DRIER (09) - CHASSIS/ATTACHMENTS

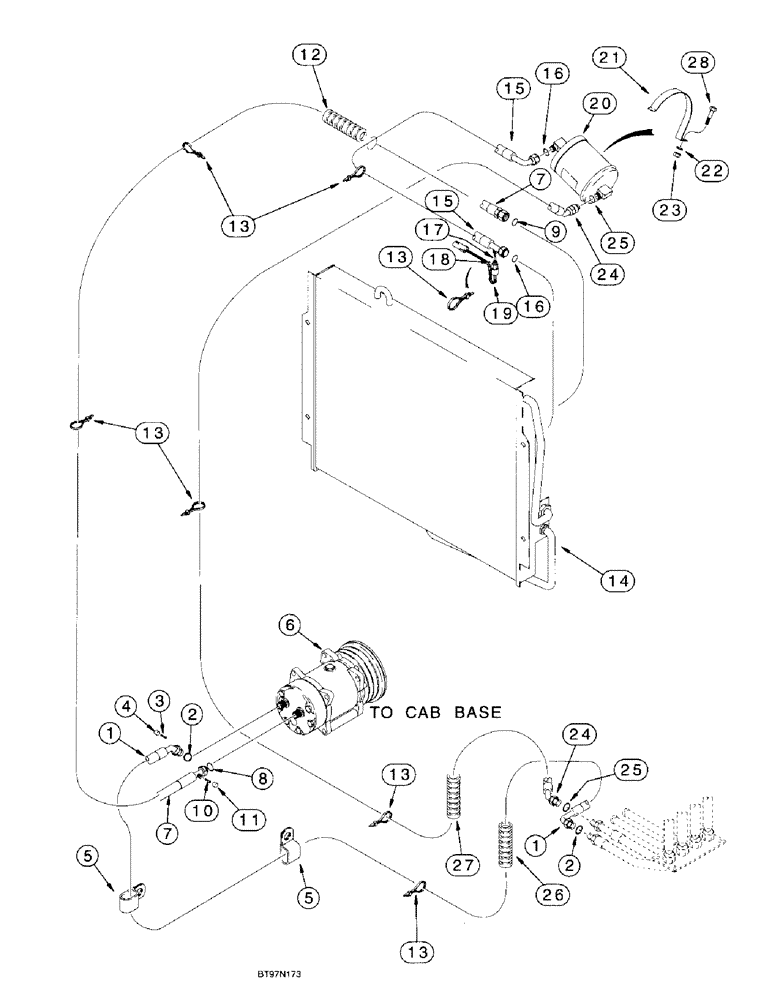

Схема запчастей Case 570LXT - (9-104) - AIR CONDITIONING, CONDENSER AND RECEIVER-DRIER (09) - CHASSIS/ATTACHMENTS
7
26
16
8
17
15
24
18
5
14
24
13
4
10
3
13
13
13
7
27
11
23
1
2
25
5
15
12
19
22
1
13
9
2
28
21
6
16
20
25

Артикул

Название

Примечание

Количество

1

305822A1

HOSE

2855 mm, 112-7/16 inch long, 45 degree hose end, compressor to cab base, Includes: Ref. 2-4

1шт.

2

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide, hose end

2шт.

3

1250594C1

CORE

VALVE core, hose, low side service port

1шт.

4

122553A1

CAP

sealing

1шт.

5

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

P-type, 1 inch ID, hose to inner left hand side of chassis, uses existing hardware, if used

1-2шт.

6

1999755C2

COMPRESSOR

ASSEMBLY, air conditioning, parts list Fig. 9-105

1шт.

6

86993462R

REMAN-COMPRESSOR

570LXT, 580L both SERIES-2 (1/98-); Reman For New P/N 1999755C2

1шт.

6

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

6

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

6

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

6

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

6

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

7

242724A1

HOSE

2600 mm, 102-3/8 inch long, straight hose end, compressor to condenser, Includes: Ref. 8-11

1шт.

8

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide, hose end, at compressor

1шт.

9

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16 inch wide, hose end

1шт.

10

1250594C1

CORE

VALVE core, hose, high side charge port

1шт.

11

122554A1

CAP

Sealing

1шт.

12

193913A1

PROTECTOR

SLEEVE hose guard, mounts to Ref. 7 hose at hood hinge bolt area

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon, retaining

1шт.

14

246060A1

ASSEMBLY

CONDENSER coil, refrigerant cooler, uses existing oil cooler to radiator hardware, used on models with heavy duty 291288A1 oil cooler or 233817A1 standard duty oil cooler, see page 6-21 or 6-23 for coolers

1шт.

15

138255A1

HOSE

550 mm, 25-11/16 inch long, condenser to receiver drier, Includes: Ref. 16-18

1шт.

16

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide, hose ends

2шт.

17

1250594C1

CORE

VALVE core, for high pressure switch

1шт.

18

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide, hose

1шт.

19

232948A1

SWITCH, A/C HIGH PRE

SWITCH, A/C HIGH PRESSURE, 400 psi

1шт.

20

1990758C2

RECEIVER-DRYER

RECEIVER DRIER air conditioning, refrigerant

1шт.

21

253404A1

HALF-COLLAR

CLAMP receiver drier

1шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

1шт.

23

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

1шт.

24

305821A1

HOSE

3215 mm, 126-9/16 inch long, receiver drier to cab base, Includes: Ref. 25

1шт.

25

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide, hose ends

2шт.

26

191703A1

HOSE PROTECTION,28mm ID x 34mm OD x 400mm L

SLEEVE hose guard, 400 mm, 15-3/4 inch long, suction hose, compressor to cab base

1шт.

27

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

SLEEVE hose guard, 460 mm, 18-1/8 inch long, receiver drier to cab base hose

1шт.

28

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

1Xшт.

Выбрано товаров: 34
