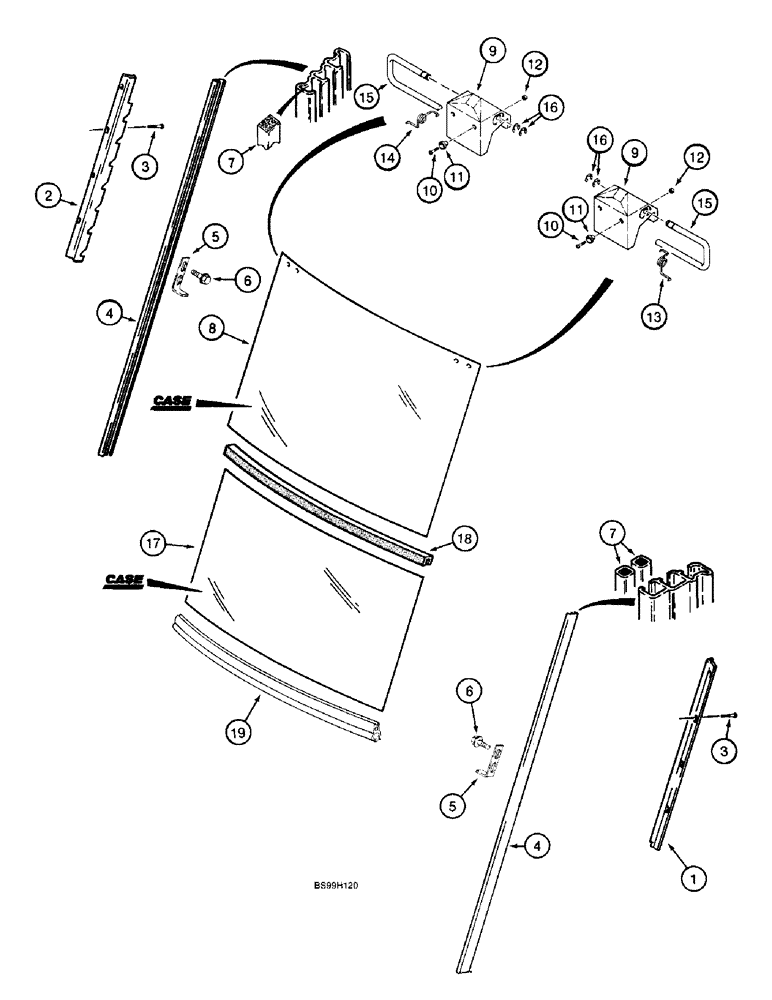

Запчасти Case 570LXT (9-094) - CAB REAR WINDOW, 570LXT MODELS (09) - CHASSIS/ATTACHMENTS

1

177252A1

SUPPORT

BRACKET right hand, upper

1шт.

2

177251A1

SUPPORT

BRACKET left hand, upper

1шт.

3

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

self tapping, hex washer head, No. 10 NC x 3/4 inch

8шт.

4

177994A2

SLIPPER

CHANNEL track

2шт.

5

177833A1

SUPPORT

BRACKET window stop, lower rear

2шт.

6

282-16512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

self drilling tapping, hex washer head, No. 10-16 x 3/4 inch, Teflon

4шт.

7

178130A1

SEAL

foam, rear window, front two track grooves, track channel both sides

4шт.

8

D129967

GLASS

upper rear window

1шт.

9

97278C1

LATCH

upper rear window only

2шт.

10

442-11016

SCREW,Cross Oval Hd, #10-24 x 1"

machine, oval Phillips, No. 10 NC x 1 inch

4шт.

11

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

nylon, black, special

4шт.

12

230-42409

NUT,#10-24, GA

NUT hex, self locking, No. 10 NC

4шт.

13

1990727C1

SPRING

right hand latch

1шт.

14

1990728C1

SPRING

left hand latch

1шт.

15

1344232C1

LEVER

latch, metal, left hand and right hand

2шт.

16

100-3337

SNAP RING,E-Type, 0.3" OD

Ring, Retaining, , Latch lever #37, .300" Dia, E-Type

4шт.

17

175092A1

GLASS

lower rear window

1шт.

18

D126198

SEAL,894mm L

912 mm, 35-29/32 inch long, lower window glass

1шт.

19

137315A1

SEAL,899.6mm L

TRIM edge, bulk, 900 mm, 35-7/16 inch long, lower rear glass

1шт.
