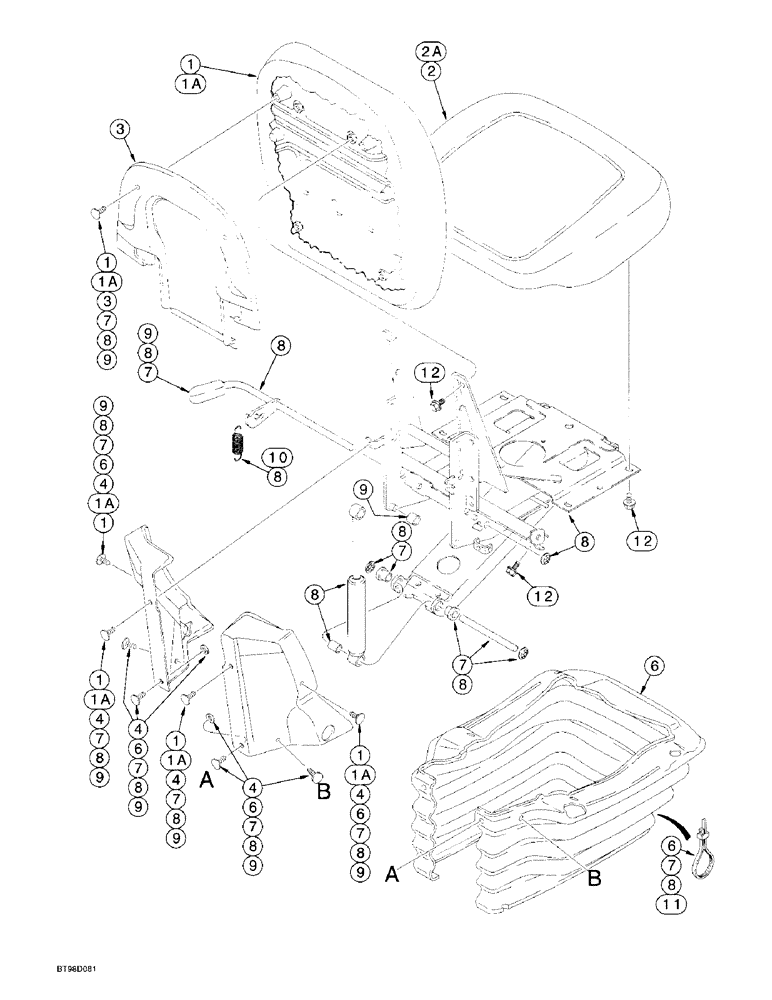

Запчасти Case 570LXT (9-086) - SUSPENSION SEAT ASSEMBLIES, 570LXT MODELS (09) - CHASSIS/ATTACHMENTS

276151A1

SEAT

ASSEMBLY, suspension, gray cloth, without armrests, Includes: seat, suspension, pedestal, and weight adjuster on Figure 9-133D, individual component parts not serviced separately, for service order respective component kits

1шт.

276148A1

SEAT

ASSEMBLY, suspension, gray vinyl, without armrests, Includes: seat, suspension, pedestal, and weight adjuster on fig.9-133D, individual component parts not serviced separately, for service order respective component kits, Includes: Ref. 1-11

1шт.

1

307094A1

KIT

backrest cushion, gray cloth, Includes: lumbar knob, 6 Christmas tree clips and 4 screws

1шт.

1a

307095A1

KIT

backrest cushion, gray vinyl, Includes: lumbar knob, 6 Christmas tree clips and 4 screws

1шт.

2

307096A1

KIT

seat cushion, gray cloth, Includes: 6 screws

1шт.

2a

307097A1

KIT

seat cushion, gray vinyl, Includes: 6 screws

1шт.

3

307091A1

ASSEMBLY

KIT backrest shroud, Includes: 2 Christmas tree clips

1шт.

4

307099A1

KIT

side shroud, left hand and right hand, Includes: 6 Christmas tree clips, 2 washers, 1 height adjust grip and 1 back angle grip

1шт.

6

307098A1

KIT

boot, rubber, Includes: 2 ties, 2 washers and 4 Christmas tree clips

1шт.

7

176919A1

KIT

swing arm pivot shaft, Includes: 2 flanged bearings, 4 push nuts, 10 Christmas tree clips, 2 washers, 1 grip and 2 tie straps

1шт.

8

307093A1

KIT

suspension, Includes: suspension, back angle adjust, 1 handle, 8 screws, 2 springs, 3 washers 1 rivet, 1 spacer, 2 tie straps, 8 Christmas tree clips, 12 nuts, 1 height adjust grip, 1 back angle grip, 1 rake grip, 1 fore/aft swivel grip and 1 decal

1шт.

Includes parts from seat frame to adjuster slides

1шт.

9

176921A1

KIT

plastic components, Includes: 2 rollers, 4 downstops, 2 roller guides, 2 bearings, 1 bumper, 4 nuts, 10 Christmas tree clips, 2 washers and 1 grip, also see additional kit parts on fig. 9-133D, item 2

1шт.

10

116547A1

KIT

height adjusting spring, Includes: 10 shroud plastic retainers, 2 washers, 2 springs and 1 wear strip, also includes 10 shroud plastic retainers, see additional kit parts on fig. 9-133D, item 6

1шт.

11

181170A1

KIT

cable, fore-aft/swivel mechanism, Includes: 2 screws, 2 tie straps, cable and 4 nuts

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT 5/16 inch thread, length as needed, purchase locally, seat cushion and backrest

8шт.
