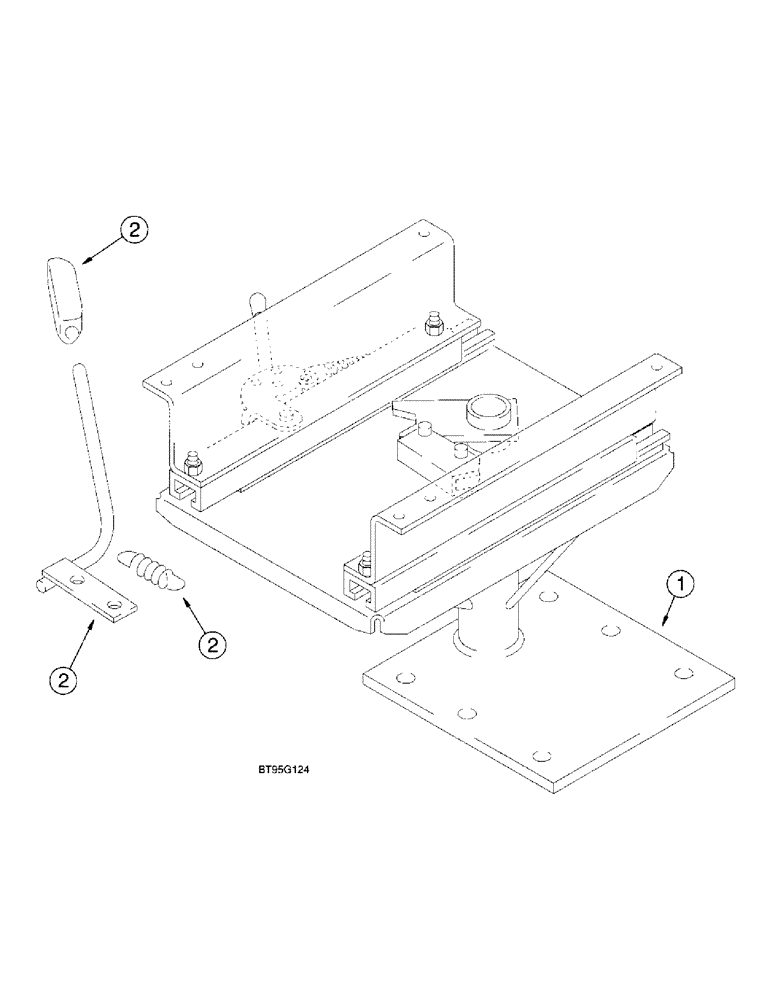

Запчасти Case 570LXT (9-085) - STANDARD SEAT SUPPORT AND PEDESTAL, 570LXT MODELS (09) - CHASSIS/ATTACHMENTS

143795A1

SEAT

ASSEMBLY, standard, gray vinyl, Includes seat below and support and pedestal on Fig. 9-085, individual component parts not serviced separately, for service order respective component kits, see ref. 9-133 for standard support & pedestal, Inc: Ref. 1-6

1шт.

1

192308A1

KIT

Pedestal, Includes Pedestal, Swivel Handle Grip, Hardware And Instruction Sheet, see Figure 9-084 for seat slides

1шт.

2

192310A1

KIT

swivel handle, Includes: handle, grip, spring, and retaining rings

1шт.
