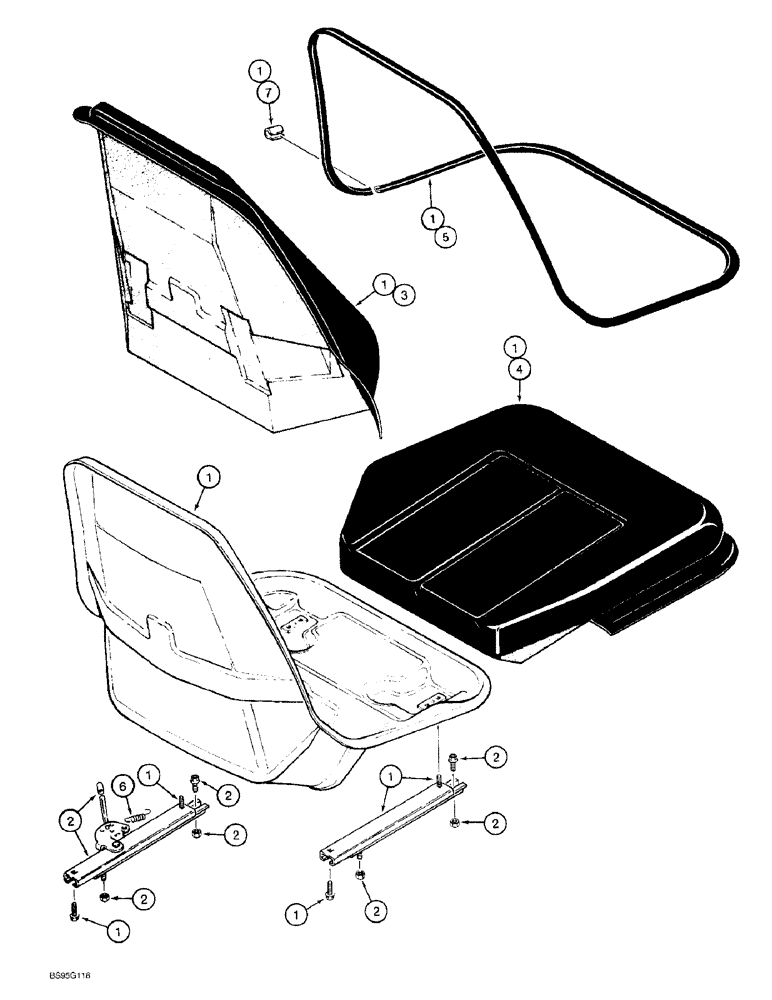

Запчасти Case 570LXT (9-084) - STANDARD SEAT ASSEMBLY, 570LXT MODELS (09) - CHASSIS/ATTACHMENTS

143795A1

SEAT

ASSEMBLY, standard, gray vinyl, Includes seat below and support and pedestal on Fig. 9-085, individual component parts not serviced separately, for service order respective component kits, see ref. 9-133 for standard support & pedestal, Inc: Ref. 1-6

1шт.

1

192307A1

KIT

seat, complete with shell two piece seat and backrest cushions, trim, clip and four screws

1шт.

2

192309A1

KIT

adjuster, seat slide, fore/aft, includes two slides, 8 nuts, grip and 4 screws

1шт.

3

176926A1

KIT

backrest cushion, gray

1шт.

4

176925A1

KIT

seat cushion, gray

1шт.

5

176924A1

SET OF PARTS

TRIM edging, gray, Serial Range: cushion-shell

1шт.

6

119171A1

KIT

spring, seat adjuster slide, Includes: 3 springs

1шт.

7

NSS

NOT SOLD SEPARAT

CLIP retainer, order N7802 clip kit, see below

1шт.

N7802

CLIP

KIT clip, Includes: Ref. 7 clip above, plus 6 additional narrow clips

1шт.
