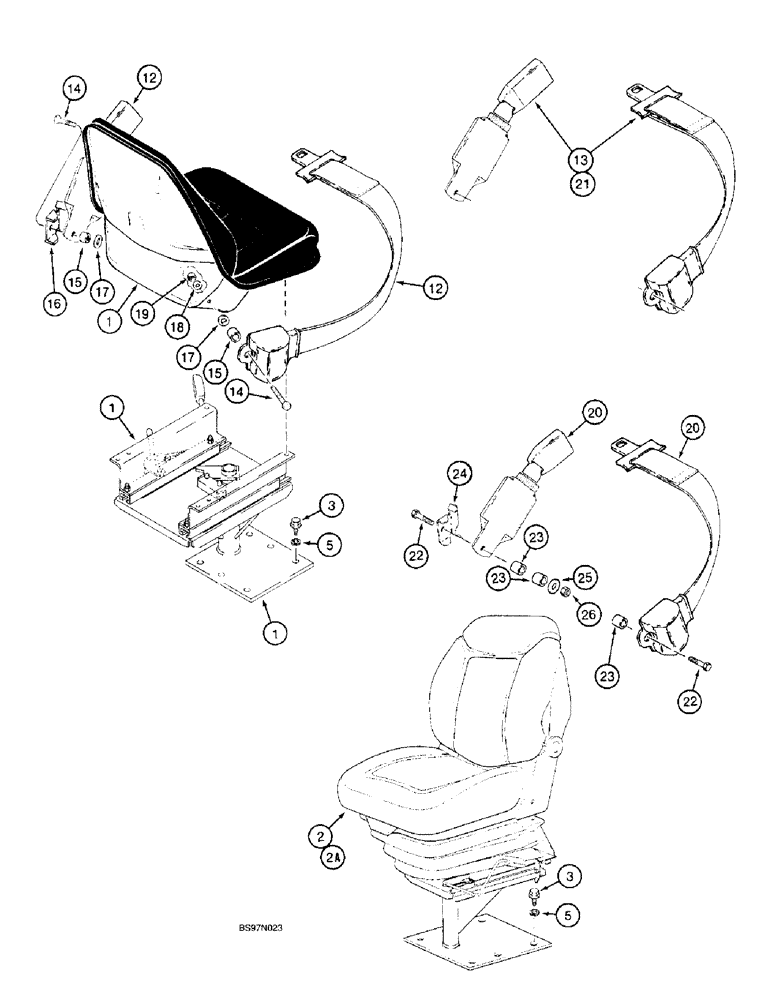

Запчасти Case 570LXT (9-083) - SEATS AND MOUNTING PARTS, 570LXT MODELS (09) - CHASSIS/ATTACHMENTS

1

143795A1

SEAT

ASSEMBLY, standard, gray vinyl, swivels to the right only, Includes: seat, pedestal, and support, see Figure 9-084 for seat and Figure 9-086 for support and pedestal

1шт.

2

276151A1

SEAT

ASSEMBLY, suspension, gray cloth, without armrests, Includes: seat, suspension and pedestal, swivels to the right only, Figure 9-084 - 9-085

1шт.

2a

276148A1

SEAT

ASSEMBLY, suspension, gray vinyl, without armrests, Includes: seat, suspension and pedestal, swivels to the right only, Figure 9-084 - 9-085

1шт.

3

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

hex, full threads, standard or suspension seat, 12 - 1.75 x 40 mm

4шт.

5

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

12

D150377

SAFETY BELT ,2.00" W

If used 2.00" W

1шт.

13

R58418

SAFETY BELT ,3.00" W

Retractable, If used 3.00" W

1шт.

14

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

hex, 7/16 NF x 1-1/2 inch

2шт.

15

D150391

SPACER

belt

2шт.

16

D150392

BRACKET

left hand belt

1шт.

17

495-81169

WASHER,17/32" x 2 1/2" x .120"

- flat, 17/32 x 2-1/2 x 3/64 inch

2шт.

18

496-81010

WASHER

flat, hardened, 15/32 x 1 x 7/64 inch

4шт.

19

232-4617

LOCK NUT,7/16"-20, GC

NUT, LOCK, 7/16"-20, GC

2шт.

20

D150377

SAFETY BELT ,2.00" W

If used 2.00" W

1шт.

21

R58418

SAFETY BELT ,3.00" W

Retractable, If used 3.00" W

1шт.

22

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

hex, 7/16 NF x 1-1/2 inch

2шт.

23

D150391

SPACER

belt

2шт.

24

D150392

BRACKET

left hand belt

1шт.

25

496-81010

WASHER

flat, hardened, 15/32 x 1 x 7/64 inch

2шт.

26

232-4617

LOCK NUT,7/16"-20, GC

NUT, LOCK, 7/16"-20, GC

2шт.
