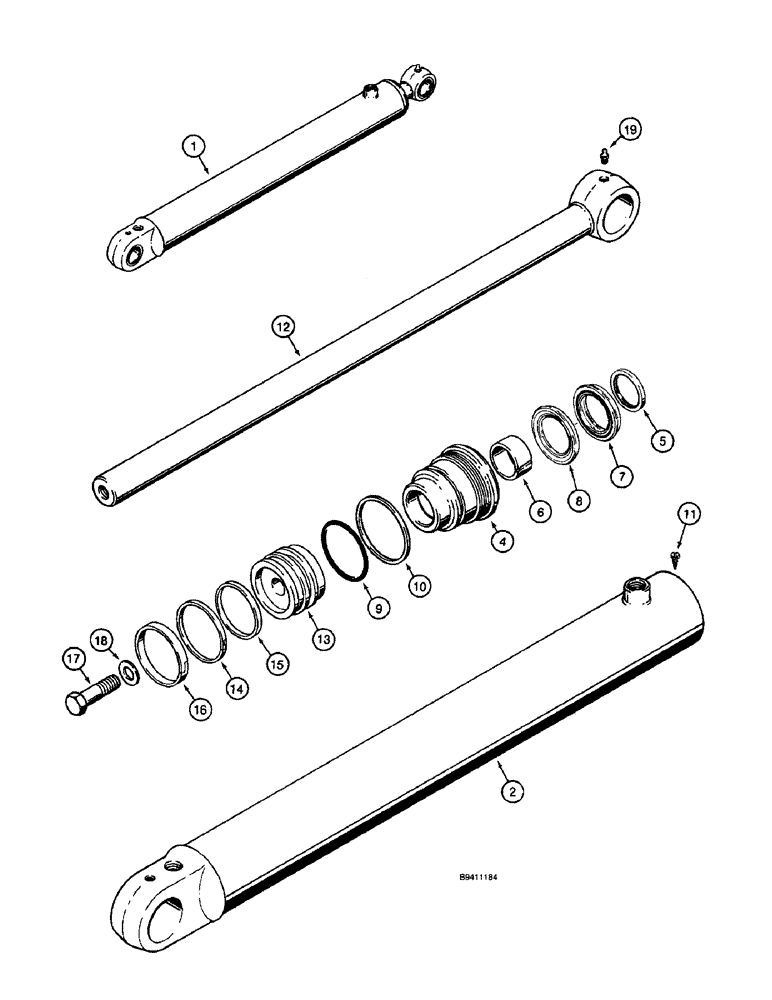

Запчасти Case 570LXT (8-138) - LOADER LIFT CYLINDERS (08) - HYDRAULICS

1

131417A1

CYLINDER,Double Acting, 44.4mm Rod, 766mm Stroke

ASSEMBLY, lift, right hand and left hand, 76 mm, 3 inch ID x 766 mm, 30-5/32 inch stroke, Includes: Refs. 1-19

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

131418A1

TUBE,76mm Bore Dia

cylinder

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY, cylinder

1шт.

4

1340795C2

CYLINDER END CAP

GLAND cylinder

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER dust

1шт.

Part of seal kit 1543267C1

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Part of seal kit 1543267C1

1шт.

1542875C1

SEAL KIT,44.4mm Rod

KIT, SEALS, NSS, Order 1543267C1 kit, See below

1шт.

Part of seal kit 1543267C1

1шт.

7

1542999C1

SEAL

rod, NSS, order 154267C1 kit, see below

1шт.

8

1542998C1

SEALING RING

buffer, NSS, order 1543267C1 kit, see below

1шт.

9

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

Gland -231, 70 Duro, 2.609" ID x .139" Thk

1шт.

Part of seal kit 1543267C1

1шт.

10

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of seal kit 1543267C1

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

133083A1

PISTON ROD

ROD piston, cylinder, without bushings, 44 mm, 1-3/4 inch diameter

1шт.

13

133097A1

PISTON

cylinder

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

Piston

1шт.

Part of seal kit 1543267C1

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING backup, piston seal

1шт.

Part of seal kit 1543267C1

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING wear, piston

1шт.

Part of seal kit 1543267C1

1шт.

17

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

hex, 1 NF x 2-1/2 inch, grade 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

flat, special, hardened, 1 inch

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

1543267C1

SEAL KIT

KIT, SEALS, Incl Ref 5, 6, 9, 10, 14, 15, 16 and also kit P/N 1542875C1 and instruction sheet

1шт.

KIT seal, Includes: Ref.

1шт.
