Запчасти Case 570LXT (8-134) - ACCUMULATOR ASSEMBLY RIDE CONTROL (08) - HYDRAULICS

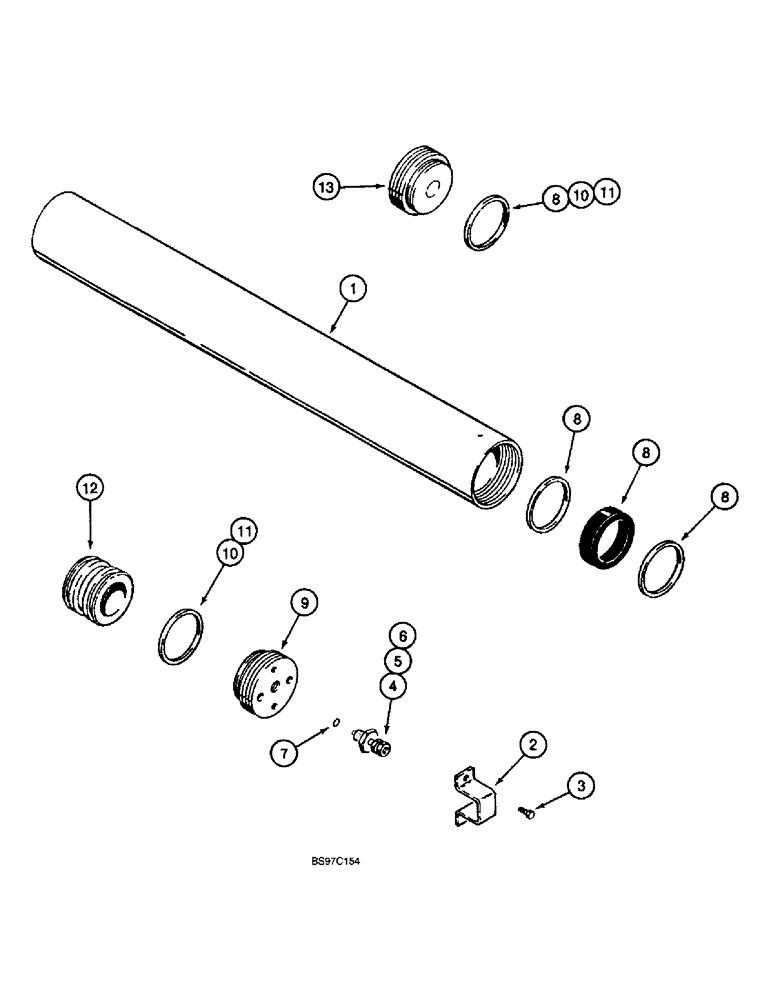

Схема запчастей Case 570LXT - (8-134) - ACCUMULATOR ASSEMBLY RIDE CONTROL (08) - HYDRAULICS
1
12
11
8
2
7
10
9
8
5
11
3
10
4
8
8
13
6

Артикул

Название

Примечание

Количество

234412A1

ACCUMULATOR,0.98L

ASSEMBLY, hydraulic, ride control, Includes: Refs. 1-13

1шт.

1

NSS

NOT SOLD SEPARAT

BODY accumulator, tube

1шт.

2

192895A1

PROTECTOR

GUARD valve

1шт.

3

276-2456

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

SCREW self tapping, hex head, No. 10 NC x 3/8 inch

2шт.

1978142C1

VALVE

ASSEMBLY, charge, gas, Includes: Refs. 4-7

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE accumulator charging

1шт.

5

1978143C1

PISTON

CORE valve

1шт.

6

1978144C1

CAP

valve

1шт.

7

1978158C1

O-RING

valve

1шт.

8

1978141C1

SEAL KIT

KIT, SEALS, Incl one V-type O-ring, (2) Teflon bearing rings and (1) body end seal ring

1шт.

9

NSS

NOT SOLD SEPARAT

GLAND gas valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING gland

2шт.

11

NSS

NOT SOLD SEPARAT

RING backup, if used

2шт.

12

NSS

NOT SOLD SEPARAT

PISTON accumulator

1шт.

13

NSS

NOT SOLD SEPARAT

GLAND end cap

1шт.

14

L129440

DECAL

hydraulic accumulator application instructions, mounts on accumulator, not shown, see Figure 9-112 for decal

1шт.

Выбрано товаров: 16
