Запчасти Case 570LXT (8-132) - THREE-POINT HITCH CONTROL VALVE, LIFT AND AUXILIARY SECTION CIRCUIT RELIEF VALVES (08) - HYDRAULICS

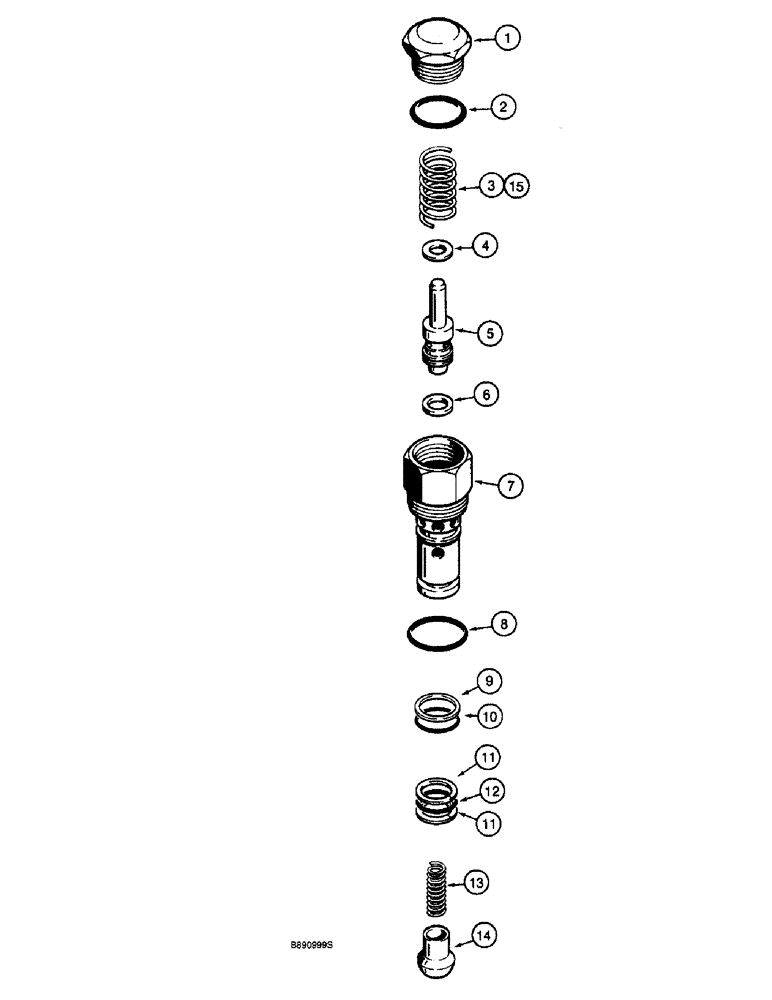

Схема запчастей Case 570LXT - (8-132) - THREE-POINT HITCH CONTROL VALVE, LIFT AND AUXILIARY SECTION CIRCUIT RELIEF VALVES (08) - HYDRAULICS
3
2
9
15
12
14
11
10
13
11
4
5
1
6
7
8

Артикул

Название

Примечание

Количество

224841A1

VALVE

ASSEMBLY, circuit relief, 2550 psi, lift section upper port

1шт.

The 1000 psi (6895 kPa) circuit relief valve must be installed in spool cap end of the lift section, the 2550 psi (17582 kPa) circuit relief valve must be installed in the spool eye end of the lift section.

1шт.

224794A1

VALVE

ASSEMBLY, circuit relief, 1000 psi, lift section lower port, auxiliary section upper port, Includes: Refs. 1-15

1шт.

The 1000 psi (6895 kPa) circuit relief valve must be installed in spool cap end of the lift section, the 2550 psi (17582 kPa) circuit relief valve must be installed in the spool eye end of the lift section.

1шт.

1

D39716

PLUG

CAP circuit relief valve

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

3

224840A1

SPRING

outer, 224841A1 valve only, upper port

1шт.

4

A55893

SHIM,.0418" Thk

(1.016 mm) .0418" Thk

1шт.

4

A55894

SHIM,.0209" Thk

(0.508 mm) .0209" Thk

1шт.

4

D39712

SHIM

0.254 mm, .01 inch thick

1шт.

18-1417

SEAL

poppet, relief, Includes: Refs. 5 & 6

1шт.

5

NSS

NOT SOLD SEPARAT

PLUNGER body

1шт.

6

D39714

RING

SEAL double lip, plunger

1шт.

7

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

backup

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

11

D88725

BACK-UP RING

RING backup

2шт.

12

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

13

H268730

SPRING

poppet

1шт.

14

D28576

VALVE POPPET

POPPET load check

1шт.

15

224837A1

SPRING

outer, 224794A1 valve only, lower port

1шт.

Выбрано товаров: 22
