Запчасти Case 570LXT (8-117C) - AUXILIARY BACKHOE VALVE (08) - HYDRAULICS

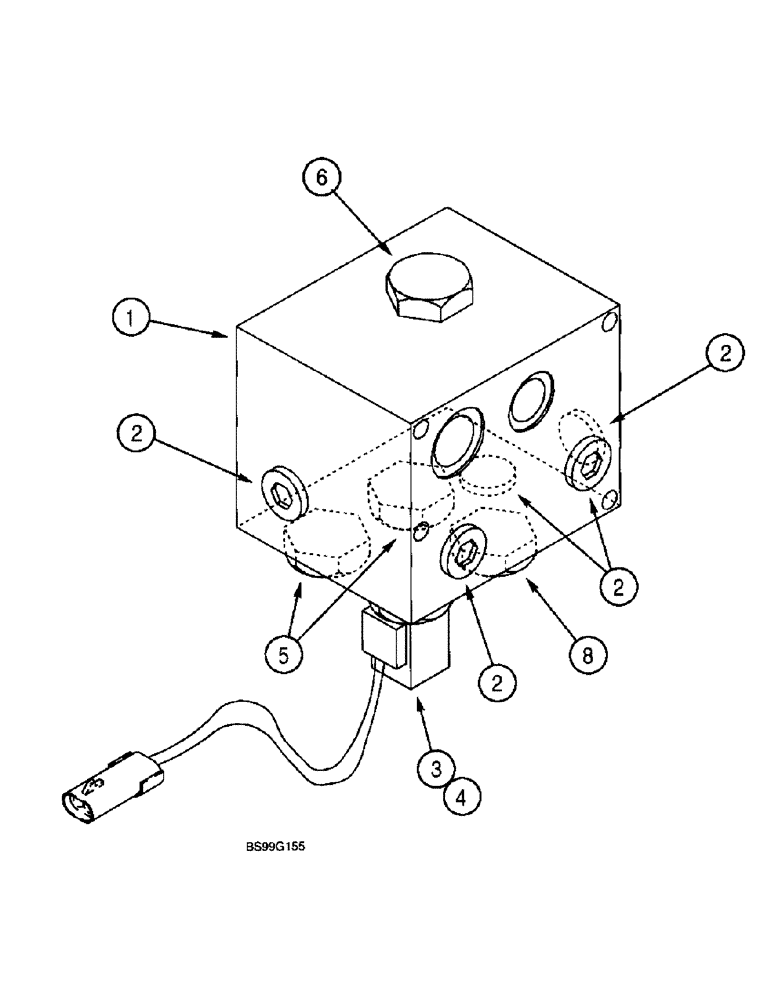

Схема запчастей Case 570LXT - (8-117C) - AUXILIARY BACKHOE VALVE (08) - HYDRAULICS
1
2
6
2
8
4
3
5
2
2

Артикул

Название

Примечание

Количество

301132A1

VALVE

ASSEMBLY, auxiliary, backhoe, Includes: Ref.1-8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG hex socket, use with 237-6012 O-ring

5шт.

3

309790A1

VALVE

solenoid, two way, normally open, component parts not serviced separately

1шт.

Included w/ SEAL REPLACEMENT KIT, P/N 149942C1

1шт.

4

309791A1

COIL

solenoid

1шт.

5

309789A1

VALVE

check, component parts not serviced separately

2шт.

Included w/ SEAL KIT, P/N 309787A1

1шт.

6

309788A1

VALVE

check, component parts not serviced separately

1шт.

Included w/ SEAL KIT, P/N 309787A1

1шт.

7

309784A1

VALVE

solenoid, two way, normally open, component parts not serviced separately

1шт.

Included w/ SEAL KIT, P/N 309787A1

1шт.

8

309785A1

VALVE

check, component parts not serviced separately

1шт.

Included w/ SEAL KIT, 309787A1

1шт.

309787A1

SEAL PACKAGE

KIT seal, includes two O-rings and one backup ring which are not serviced separately, not shown, use with Ref. 5-8, Includes: Refs. 5, 6, 7, and 8

5шт.

149942C1

SEAL KIT

KIT seal replacement, Includes: two O-rings and one backup ring which are not serviced separately, not shown, use with Ref. 3, Includes: Ref. 3

1шт.

Выбрано товаров: 16
