Запчасти Case 570LXT (8-092) - BACKHOE CONTROL VALVES, MODELS WITH EXTENDABLE DIPPER, W/ AUXILIARY HYDRAULICS (08) - HYDRAULICS

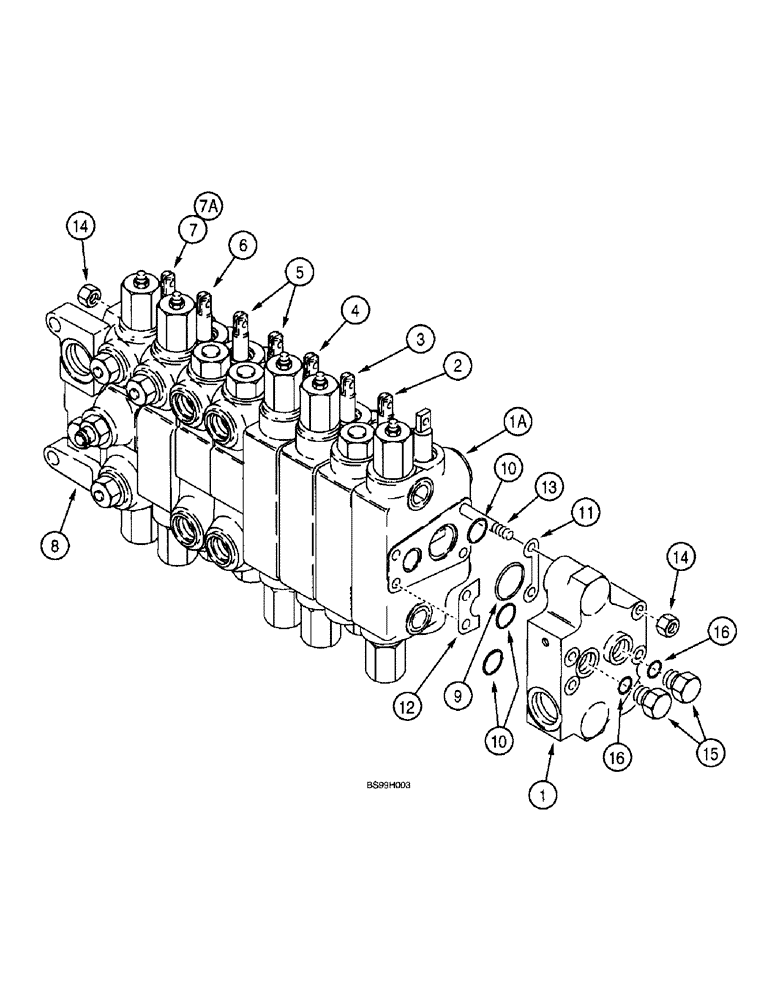

Схема запчастей Case 570LXT - (8-092) - BACKHOE CONTROL VALVES, MODELS WITH EXTENDABLE DIPPER, W/ AUXILIARY HYDRAULICS (08) - HYDRAULICS
7a
5
11
1
10
4
14
9
7
10
16
2
16
8
14
3
6
13
1a
15
12

Артикул

Название

Примечание

Количество

242692A3

DISTRIBUTOR

VALVE ASSY, backhoe control, 8 spool, foot swing, Replaces: 242692A2, boom and swing section spool eyes are not color coded, without check valve in outlet section, with male spool eye in options section, no longer available, order 333576A1 valve

1шт.

242691A3

DISTRIBUTOR

VALVE ASSY, backhoe control, 8 spool, hand swing, Replaces: 242691A2, boom & swing sect. spool eyes are not color coded, w/o check valve in outlet section, w/ male spool eye in options section, no longer available, order 333575A1 valve, Incl.: Ref. 1-15

1шт.

1

113248A3

HYD VALVE SECTION

SECTION ASSEMBLY, outlet, with hex plug, without check valve, Replaces: 113248A2 section with hex socket head plug, parts list Figure 8-94

1шт.

1a

294198A1

HYD VALVE SECTION

SECTION ASSEMBLY, options, male spool eye, auxiliary hyaraulics, parts list Figure 8-112

1шт.

2

144324A4

HYD VALVE SECTION

SECTION ASSEMBLY, dipper extension, parts list Figure 8-110

1шт.

3

129864A4

HYD VALVE SECTION

SECTION ASSEMBLY, bucket, parts list Figure 8-96

1шт.

4

136610A5

HYD VALVE SECTION

SECTION ASSEMBLY, dipper, parts list Figure 8-98

1шт.

5

253989A2

HYD VALVE SECTION

SECTION ASSEMBLY, stabilizer, left hand and right hand, parts list Figure 8-100

2шт.

6

144321A5

HYD VALVE SECTION

SECTION ASSEMBLY, boom, parts list Figure 8-102 and 8-104

1шт.

7

144681A5

HYD VALVE SECTION

SECTION ASSEMBLY, swing, foot swing control valve, parts list Figure 8-106 and 8-108

1шт.

7a

144682A5

ELEMENT

SECTION ASSEMBLY, swing, hand swing control valve, parts list Figure 8-106 and 8-108

1шт.

8

1542829C1

HYD VALVE SECTION

SECTION ASSEMBLY, inlet, parts list Figure 8-94

1шт.

9

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

Section ports -127, 90 Duro, 1.424" ID x .103" Thk

9шт.

Included w/ SEAL KIT, P/N 1346107C2

1шт.

10

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small inch wide -119, 90 Duro, .924" ID x .103" Thk

27шт.

Included w/ SEAL KIT, P/N 1346107C2

1шт.

11

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section 0.051mm Thk

9шт.

12

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section 0.051mm Thk

9шт.

13

229684A1

STUD

tie

4шт.

14

425-106

NUT,3/8"-16, Cl 5

8шт.

15

86512512

PLUG,7/8" - 14 ORB

hex, 14-7/8 inch O-ring boss, Incl. Ref. 16

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

1346107C2

SEAL KIT

KIT seal, Includes: Refs. 9 & 10, plus additinal O-rings not required for this application

1шт.
