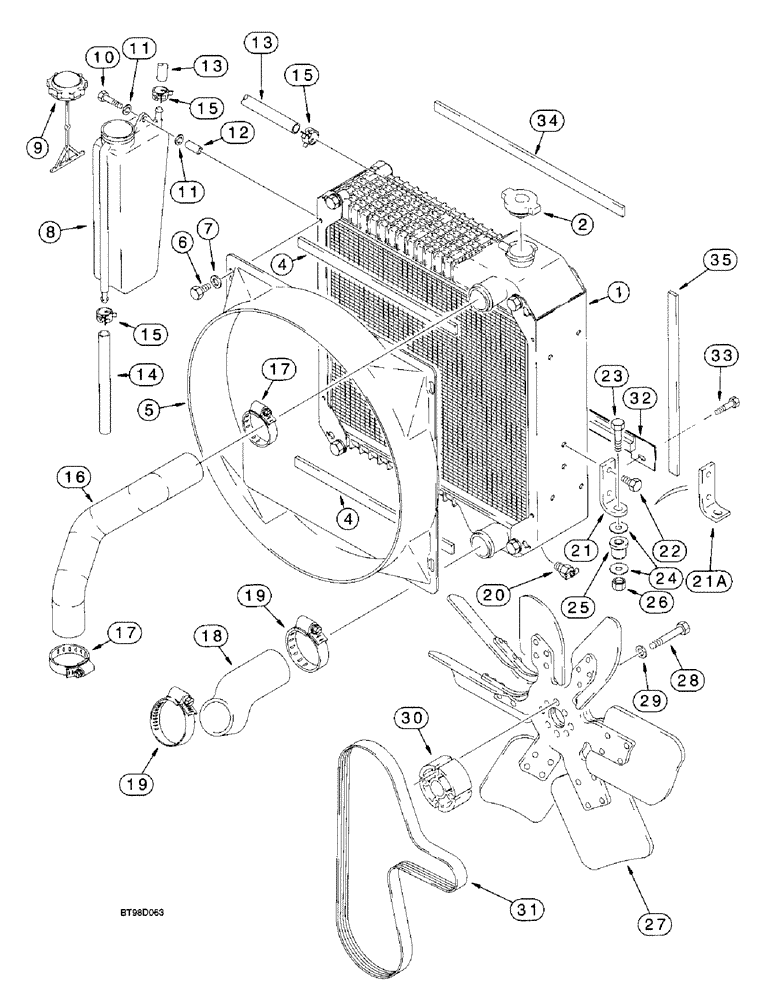

Запчасти Case 570LXT (2-02) - RADIATOR, FAN AND MOUNTING PARTS (02) - ENGINE

1

234876A1

RADIATOR

ASSEMBLY, engine coolant, 4 row, models without air conditioning, parts list Figure 2-6, Replaces 129264A1 cooler, used with 233817A1 or 320877A1 oil cooler, see Figure 6-20 or 6-22 for coolers and baffles, Includes Ref. 2

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, 15 psi

1шт.

4

233272A1

SEALING STRIP,20mm W x 404mm L x 6mm Thk

adhesive backed, radiator to shroud, upper and lower, 6, 1/4 x 20, 25/32 x 404 mm, 15-29/32 inch long

2шт.

5

186433A1

SHROUD

fan

1шт.

6

806-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9

hex, self locking, 8 - 1.25 x 16 mm, class 10.9

4шт.

8

131084A1

RESERVOIR

coolant recovery bottle, Includes Ref. 9

1шт.

9

1547924C1

CAP

recovery bottle

1шт.

10

806-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

hex, self locking, 8 - 1.25 x 50 mm, class 10.9

2шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

4шт.

12

132215A1

SPACER

bottle

2шт.

13

132218A1

HOSE

coolant recovery, 591 mm, 23-1/4 inch long, cut from L126767 hose

1шт.

14

132217A1

HOSE

coolant overflow, 125 mm, 4-15/16 inch long

1шт.

15

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP spring type, hose, retaining

3шт.

16

232366A1

RADIATOR HOSE,45.00 mm ID x 265.00 mm, SAE 20R4, SAE J20

Upper 45.00 mm ID x 265.00 mm, SAE 20R4, SAE J20

1шт.

17

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, #32, 1.56/2.50 Type F Worm

2шт.

18

141513A1

RADIATOR HOSE,58.00 mm ID x 212.00, SAE 20 R4

Lower 58.00 mm ID x 212.00, SAE 20 R4

1шт.

19

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP adj., 2-1/16 - 3 inch dia.

2шт.

20

217-92

COCK

VALVE drain, 1/4 inch PT

1шт.

21

121501A1

SUPPORT

BRACKET radiator mounting, lower, see Figure 9-64 for upper bracket that attaches to the radiator shroud, no longer available, order 121501A2

2шт.

21a

121501A2

SUPPORT

BRACKET radiator mounting

2шт.

22

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 16 mm

4шт.

23

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

2шт.

24

K691987

WASHER,10.5mm ID x 30mm OD x 3.0mm Thk

flat, special

4шт.

25

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR rubber, mount, radiator

2шт.

26

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

2шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

7.9 mm ID x 2336.00 mm, SAE 30R6 or SAE 20R4 Class D1

1шт.

27

127181A1

FAN

engine cooling, with orange identification dot, models without turbocharged engine

1шт.

27

228133A1

FAN

engine cooling, with white identification dot, models with turbocharged engine

1шт.

28

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

hex, 10 - 1.5 x 70 mm

4шт.

29

496-21041

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, 13/32 x 13/16 x 3/32"

4шт.

30

A184545

SPACER

fan

1шт.

31

J925953

BELT,27.92 mm W x 1490.00 mm L, 8 Ribs

Fan, Alternator and fan, See Figure 9-105 for belt used on air conditioning compressor 27.92 mm W x 1490.00 mm L, 8 Ribs

1шт.

32

185384A1

LARGE PLATE

PLATE anti-recirculation, if used, may be replaced by Ref. 34 and 35

1шт.

33

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 16 mm

2шт.

34

235040A2

SEALING STRIP,20mm W x 542mm L x 6mm Thk

foam, adhesive backed, horizontal, radiator to cooler, 20, 25/32 x 542, 21-11/32 x 6 mm, 1/4 inch

2шт.

35

235038A2

RUBBER SEAL,20mm W x 490mm L x 8mm Thk

foam, adhesive backed, vertical, radiator to cooler, 20, 25/32 x 490, 19-5/16 x 8 mm, 5/16 inch

2шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.
