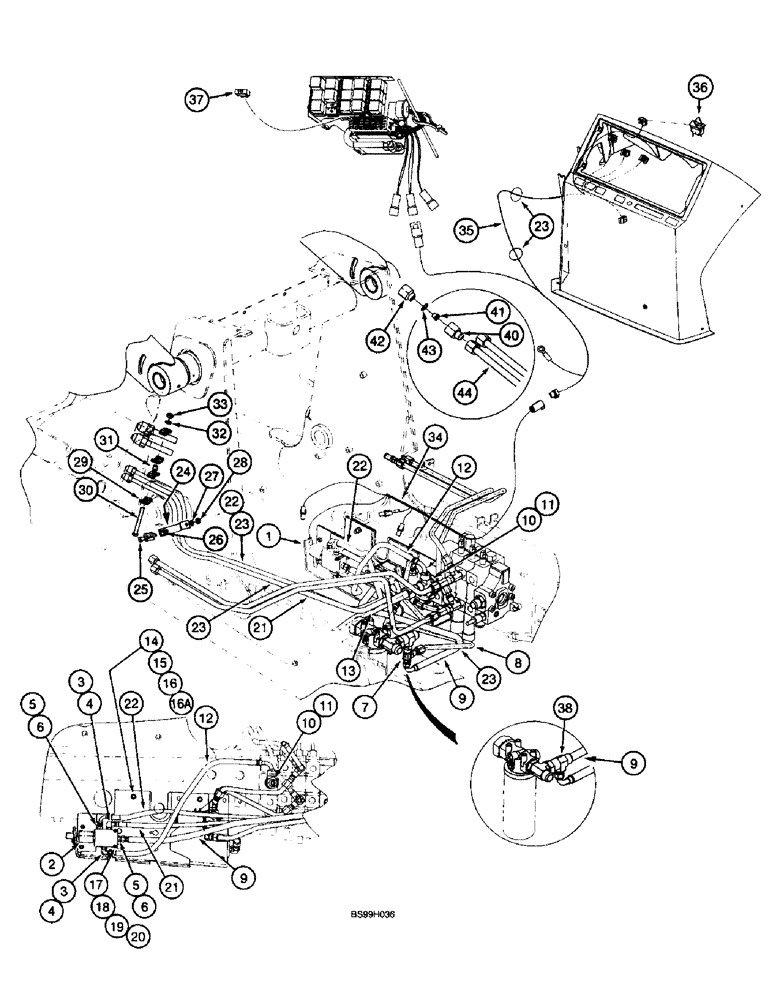

Запчасти Case 570LXT (8-060) - LOADER HYDRAULIC TOOL QUICK COUPLER (08) - HYDRAULICS

1

259777A3

PLATE ASSY.

PLATE mounting, solenoid valve

1шт.

2

277320A1

VALVE

ASSEMBLY, solenoid, four way, two position, quick coupler, component parts not serviced separately

1шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 18-9/16 inch flare x adj. O-ring boss, Includes: Ref. 4

2шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER straight, 18-9/16 inch flare x O-ring boss, Incl. Ref. 6

2шт.

7

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

swivel, 14-7/8 inch flare branch x flare x adj. straight thread, used only on models with both ride control and hydraulic tool quick coupler

1шт.

8

293037A1

TUBE,15.88 mm OD, 485, 374 mm Length

left hand ride control solenoid valve to tee at filter, Replaces: Ref. 13 on Figure 8-56 on models with both ride control and hydraulic tool quick coupler

1шт.

9

292528A1

HOSE ASSY.

HOSE return, filter to quick coupler solenoid valve, 1220 mm, 48-1/32 inch long

1шт.

10

218-5577

TEE,37 Degree, 1 1/16"-12, 1 1/16"-12 O-Ring Run, 7/8"-14

at inlet section upper port of loader control valve, 16-3/4 flare branch x 1-5/16-12 flare x adj. O-ring, Includes: Ref. 11

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide

1шт.

12

276962A1

HOSE ASSY.

HOSE quick coupler solenoid valve lower port to tee at inlet section of loader control valve, 810 mm, 31-29/32 inch long

1шт.

13

370977A1

TUBE

tee at loader valve inlet upper port to large pump section, Replaces: 292436A1

1шт.

14

711-10040

CARRIAGE BOLT,Short NK, M10 x 40, Cl8.8, Full Thd

BOLT carriage, 10 - 1.5 x 40 mm, if used

2шт.

14

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

BOLT carriage, 10 - 1.5 x 50 mm , if used

2шт.

15

892-11010

LOCK WASHER,M10

2шт.

16a

330083A1

SPACER,11mm ID x 40mm OD x 10mm Thk

11 x 40 x 10 mm thick

2шт.

17

711-6050

CARRIAGE BOLT,Sq Nk, M6 x 1 x 50mm, Cl 8.8

BOLT carriage, 6 - 1.0 x 50 mm

2шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

20

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

21

301008A2

HOSE

quick coupler solenoid valve to loader lift frame, 2677 mm, 105-13/32 inch long, Includes: hose guard, two banded clamps and whit tie strap

1шт.

22

301009A2

HOSE

quick coupler solenoid valve to loader lift frame, 2677 mm, 105-13/32 inch long, Includes: hose guard and two banded clamps

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

14шт.

24

D138055

CLAMP

tube

1шт.

25

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

hex, 10 - 1.5 x 70 mm, Replaces: 828-10060 bolt

1шт.

26

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

clamp

1шт.

27

892-11010

LOCK WASHER,M10

1шт.

28

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

1шт.

29

D138055

CLAMP

tube

4шт.

30

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

hex, 10 - 1.5 x 80 mm, Replaces: 828-10090 bolt

1шт.

31

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

clamp, 381 mm, 15 inch long

1шт.

32

892-11010

LOCK WASHER,M10

1шт.

34

302803A2

HARNESS

chassis options, connects to side console options harness, Replaces: 302803A1 harness

1шт.

35

296508A2

HARNESS

side console options, connects to chassis options harness and fuse block

1шт.

36

275488A2

SWITCH

rocker, yellow rocker and amber lens, quick coupler

1шт.

37

121413A1

FUSE,15A, Mini, Blue

1шт.

38

218-5490

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx7/8"-14 Br

models without ride control, 14-7/8 flare branch x 1-5/16-12 inch flare x swivel

1шт.

40

304424A1

HYD CONNECTOR,0.875" - 14 JIC x 0.875" - 14 ORB

CONNECTOR, HYD., Straight

1шт.

41

304890A1

RESTRICTOR

check

1шт.

Install restrictor on inner most dump cylinder tube, connects to closed end of cylinder

1шт.

42

309674A1

HYD CONNECTOR,0.875" - 14 ORB x 0.875" - 14 ORFS

ADAPTER straight, 14-7/8 inch male x female

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

44

309673A1

TUBE,15.88 mm OD, 1474, 537 mm Length

loader arm, bucket port A to closed end of right hand bucket cylinder

1шт.

16

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

33

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
