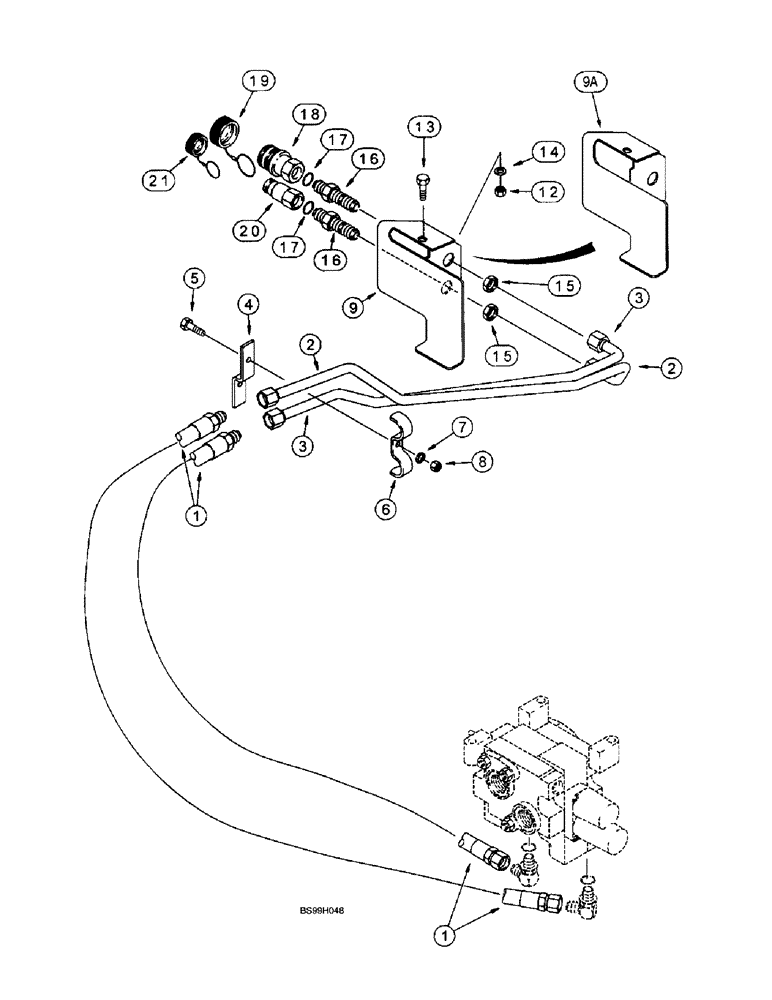

Запчасти Case 570LXT (8-042) - HAND HELD AUX. HYD. AUX. VALVE TO QUICK DISCONNECT COUPLINGS, MODELS W/40 GALLON FUEL TANK (08) - HYDRAULICS

1

302501A1

HOSE

auxiliary valve to quick disconnect couplings, 1340 mm, 52-13/16 inch long, see Figure 8-36 for 218-5107 elbows at auxiliary valve

2шт.

2

301700A1

HYD TUBE,19.05 mm OD, 986, 61 mm Length

TUBE to male coupling

1шт.

3

301698A1

HYD TUBE,19.05 mm OD, 916, 117 mm Length

TUBE to female coupling

1шт.

4

301355A1

BRACKET

tube mounting

1шт.

5

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

6

D42833

CLAMP

tube

1шт.

7

892-11010

LOCK WASHER,M10

1шт.

9

300490A1

BRACKET

hose support to quick disconnect couplings, 216 mm, 8-1/2 inch high, no longer available, order 370374A1

1шт.

9a

370374A1

BRACKET

hose support to quick disconnect couplings, 211 mm, 8-5/16 inch high

1шт.

13

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

15

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT hex, lock, bulkhead, 1-1/16 inch NF

2шт.

16

126155A1

FITTING

CONNECTOR straight, bulkhead, Includes: Ref. 17

2шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

18

122179A1

COUPLING, BREAK AWAY

COUPLING quick disconnect, female, component parts are not serviced separately

1шт.

19

137343A1

PLUG

CAP female coupling, aluminum, if used

1шт.

19

193261A1

PLUG

CAP female coupling, black rubber, if used

1шт.

20

122178A2

COUPLING, BREAK AWAY

COUPLING quick disconnect, male, component parts are not serviced separately

1шт.

21

137344A1

PLUG

CAP male coupling, aluminum, if used

1шт.

21

193262A1

PLUG

CAP male coupling, black rubber, if used

1шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

1шт.
