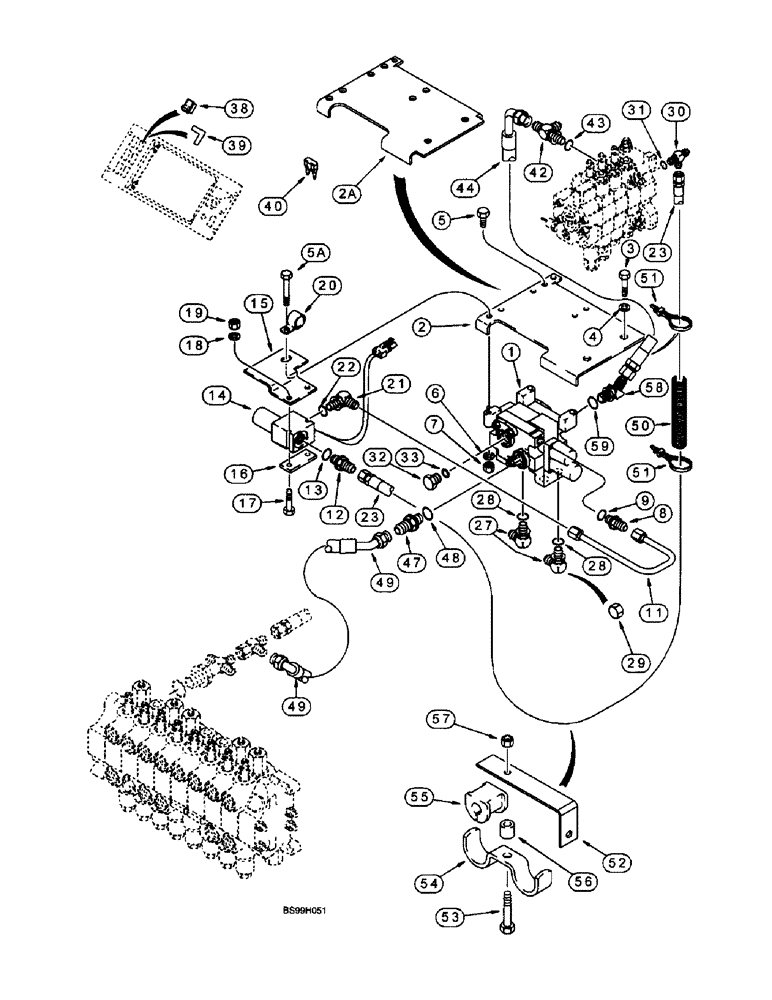

Запчасти Case 570LXT (8-036) - HAND HELD AUXILIARY HYDRAULICS, MODELS WITH OR WITHOUT EXTENDABLE DIPPER (08) - HYDRAULICS

1

121741A1

VALVE, CONTROL

VALVE ASSEMBLY, auxiliary, hand held, one spool, parts list Figure 8-114

1шт.

2

224788A2

SUPPORT

BRACKET auxiliary valve mounting to chassis, no longer available, order 224788A3

1шт.

2a

224788A3

SUPPORT

BRACKET auxiliary valve, Serial Range: mounting-chassis

1шт.

3

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

5

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

3шт.

5a

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 9

1шт.

11

300983A1

TUBE

auxiliary valve to solenoid valve inlet

1шт.

12

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

137012A1

SOLENOID VALVE

VALVE ASSEMBLY, solenoid, component parts are not serviced separately, attaches to chassis options harness, Ref. 36 on Figure 4-18

1шт.

15

137713A1

SUPPORT

BRACKET solenoid mounting

1шт.

16

136977A1

LARGE PLATE

PLATE solenoid valve mounting

1шт.

17

814-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8

2шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

20

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

P-type 5/16", Insul, 3/8" Bolt

1шт.

21

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

90 degree, 9/16-18 flare x 3/4-16 inch adj. O-ring boss, Incl. Ref. 22

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

192693A1

HOSE

solenoid valve outlet to check valve at loader control valve inlet section, 1490 mm, 58-11/16 inch long

1шт.

27

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, hand held section of auxiliary valve, 7/8-14 inch flare x adj. O-ring boss, see hand held hydraulics on Figure 8-40 or 8-42 for attaching hoses, Incl. Ref. 28

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

29

218-756

CAP,37 Degree, 7/8"-14

If used, not required when hydraulic hoses for hand held hydraulics are attached to fittings 37º, 7/8"-14

2шт.

30

282428A1

VALVE PRESSURE RELIE

VALVE, PRESSURE RELIEF, Steering check, loader valve inlet section, see Figure 5-4 for attaching steering hose, Includes: Ref. 31

1шт.

32

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

hex, 1-1/16-12 inch O-ring boss, auxiliary valve inlet port, now included with 121741A1 auxiliary valve, Includes: Ref. 33

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

38

191532A1

SWITCH

rocker, auxiliary hydraulics, attaches to side options harness, Ref. 35 on Figure 4-18

1шт.

39

192299A1

DECAL

auxiliary hydraulics, switch on instrument panel, see Figure 9-180 for decal

1шт.

40

121413A1

FUSE,15A, Mini, Blue

1шт.

42

218-5576

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 3/4"-16

at loader valve inlet section lower port, 3/4-16 fl branch x 1-1/16-12 fl x 7/8-14 inch adj. O-ring, see Fgiure 5-4 for attaching steering hose, Includes: Ref. 43

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

44

243338A1

HOSE

loader valve inlet section lower port to auxiliary valve port, 910 mm, 35-7/8 inch long

1шт.

47

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 48

1шт.

48

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

49

302474A1

HOSE

return, auxiliary valve outlet port to tee at backhoe control valve, 500 mm, 19-11/16 inch long

1шт.

50

D132982

PADDLE,26.87mm ID x 400mm L

SLEEVE hose guard

2шт.

51

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

4шт.

52

136008A1

SUPPORT

BRACKET mounting

1шт.

53

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

54

D143422

SHIN

CLAMP double tube

1шт.

55

D143797

SHOCK ABSORBER

INSULATOR 5/8 inch

1шт.

56

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

split, 22 mm, 7/8 inch long

1шт.

58

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

45 degree, 1-1/16-12 inch flare x adj. O-ring boss, Includes: Ref. 59

1шт.

59

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

57

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

4шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
