Запчасти Case 570LXT (8-009A[A]) - EQUIPMENT HYDRAULIC SYSTEM, OIL COOLER LINES, RETURN LINES, AND FILTER WITH CUT HOSES AT COOLER) (08) - HYDRAULICS

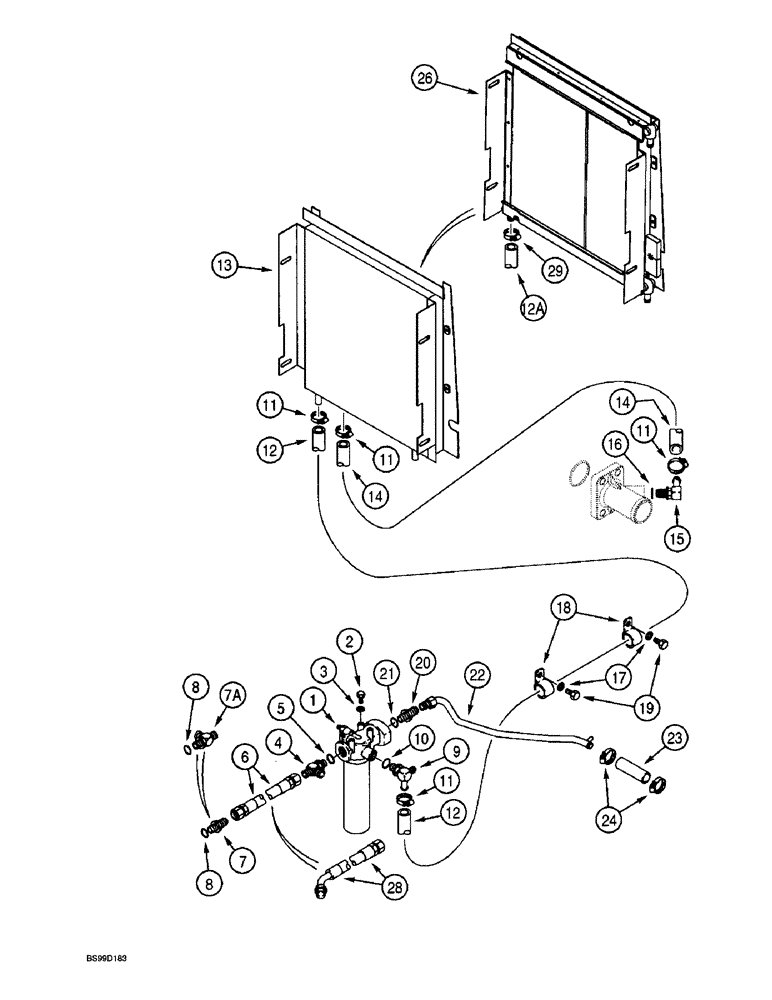

Схема запчастей Case 570LXT - (8-009A[A]) - EQUIPMENT HYDRAULIC SYSTEM, OIL COOLER LINES, RETURN LINES, AND FILTER WITH CUT HOSES AT COOLER) (08) - HYDRAULICS
11
6
14
8
21
12
11
13
1
12a
24
29
28
11
26
18
9
23
17
8
14
15
12
2
10
3
7a
5
19
16
7
11
22
4
20

Артикул

Название

Примечание

Количество

1

122536A1

HYDRAULIC OIL FILTER

FILTER ASSEMBLY, hydraulic oil, see Figure 8-136

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

2

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

Model 570LXT with Three Point Hitch, If Used Hex, M10 x 25, 8.8, Full Thd

4шт.

4

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

loader valve to filter and filter to backhoe control valve, 1-5/16-12 inch flare branch x flare x adj. O-ring boss, see Figure 8-66 for relocation of tee on models with three point hitch, Includes: Ref. 5

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide

1шт.

6

144233A1

HOSE,1.0” ID x 890mm L

return, backhoe control valve to filter, 890 mm/35 inch long, no longer available, order P/N 313648A1 hose, Ref. 28

1шт.

See Figure 8-066 for hose used on models with three point hitch.

1шт.

7

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, backhoe control valve outlet port, 1-5/16-12 inch flare x O-ring boss, models without extendable dipper

1шт.

See Figure 8-066 for hose used on models with three point hitch.

1шт.

7a

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

backhoe control valve outlet port, 1-5/16-12 inch flare branch x flare x adj. O-ring boss, models with extendable dipper, if used, Includes: Ref. 8

1шт.

See Figure 8-066 for hose used on models with three point hitch.

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 ID x 7/64 inch wide, P/N 218-5069 or 218-5245 fitting

1шт.

9

301104A1

FITTING,5/8" OD x 7/8" - 14 ORFS x 9/16" - 18 JIC

Special Tee W/Hose Barb, Includes: Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

328186A1

HOSE CLAMP,400mm L

CLAMP hose

4шт.

12

325489A2

HOSE

filter to cooler, 2100 mm/82-11/16 inch long, Replaces: P/N 325489A1 hose without air conditioning

1шт.

12a

301341A1

HOSE

with hose guard, cooler to filter, 2500 mm/98-7/16 inch long, models with air conditioning

1шт.

13

320877A1

COOLER, OIL

COOLER hydraulic oil, see figure 6-022 for cooler mounting hardware, models without air conditioning

1шт.

14

301342A1

HOSE

with hose guard, cooler return, 515 mm/20-1/4 inch long

1шт.

15

217-342

FITTING,90 Degree Elbow, 5/8" Hose Barb x 9/16" - 18 Male ORB

ELBOW, to pump flange, 5/8 stem end x 18-9/16 inch adj. O-ring boss, 90°, Includes: Ref. 16

1шт.

18

515-25238

CLAMP,15/16", Insul, 1/2" Bolt

P-type, tube 15/16", Insul, 1/2" Bolt

2шт.

19

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

20

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER straight, 1-5/16-12 flare x 1-5/8 inch O-ring, Includes: Ref. 21

1шт.

21

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

22

295172A1

TUBE

, Serial Range: return-tank

1шт.

23

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

return tube to tank, 89 mm/3-1/2 inch long, cut from P/N S118383X bulk hose, see Figure 7-008 for attaching brake line clamp

1шт.

24

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

26

301239A1

COOLER, OIL

COOLER hydraulic oil, heavy duty, see Figure 6-026 for cooler mounting hardware and component parts, models with air conditioning

1шт.

28

313648A1

HYDRAULIC HOSE,1.0” ID x 910mm L

HOSE, HYDRAULIC, Backhoe control valve to filter, 910 mm/35-27/32" long

1шт.

29

328186A1

HOSE CLAMP,400mm L

CLAMP hose

2шт.

S118383X

LARGE HOSE

HOSE bulk, 25 mm, 1 inch x 38 mm, 1-1/2 inch x 4877 mm, 192 inch long

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

4шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

2шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 34
