Запчасти Case 570LXT (6-058) - TRANSMISSION ASSEMBLY, SOLENOID VALVE - FOUR WHEEL DRIVE (06) - POWER TRAIN

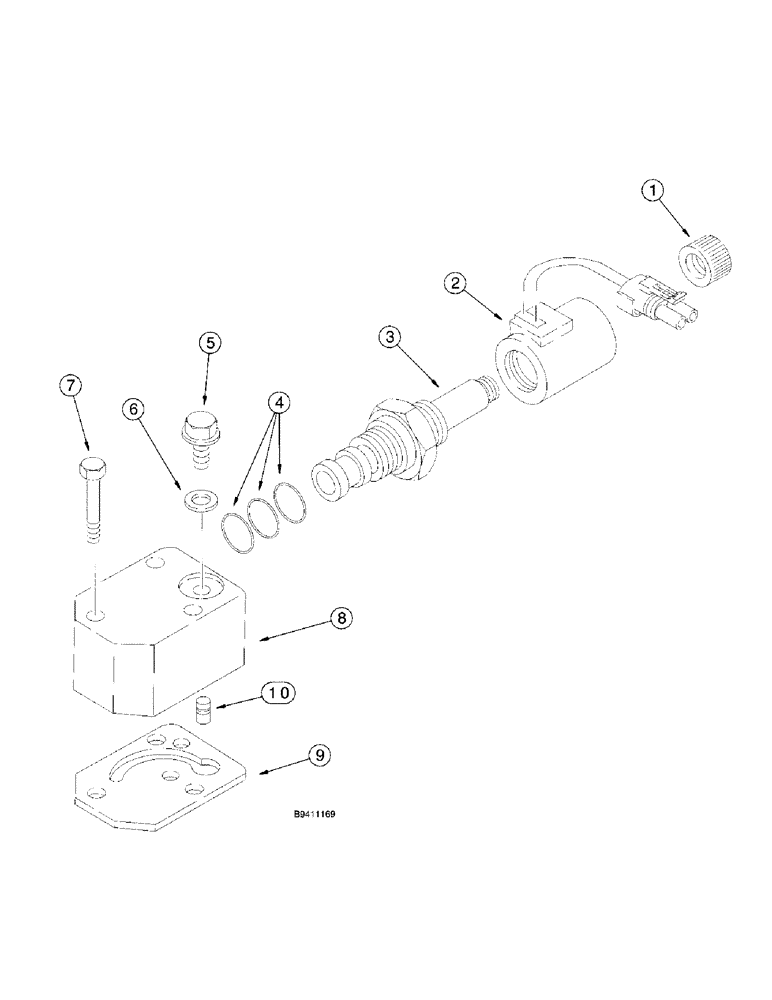

Схема запчастей Case 570LXT - (6-058) - TRANSMISSION ASSEMBLY, SOLENOID VALVE - FOUR WHEEL DRIVE (06) - POWER TRAIN
8
6
2
9
1
10
3
5
7
4

Артикул

Название

Примечание

Количество

123843A3

TRANSMISSION

TRANSMISSION ASSY., 4WD, 580L models, new, with integrated diff. lock solenoid valve, parts list Figure 6-32 thru 6-58, Replaces: 123843A2 transmission which used the chassis mounted differential lock solenoid valve, see Figure 6-90

1шт.

See Figure 6-032 for explanation when replacing an A2 transmission with an A3 transmission.

1шт.

No longer available. Order 329079A1 transmission, see Figure 6-60.

1шт.

123843A3R

REMAN-TRANSMISSION

580L Series-2, 4 WD

1шт.

123843A3C

CORE-TRANSMISSION

Return Number

1шт.

130787A3

TRANSMISSION

TRANSMISSION ASSY., 4WD, 570LXT models, new, with integrated diff. lock solenoid valve, parts list Fig. 6-32 - 6-58, Replaces: 130787A2 trans. which used the chassis mounted diff. lock solenoid valve, see Fig. 6-90, Includes: Ref. 5-10 and P/N 190432A1

1шт.

See Figure 6-032 for explanation when replacing an A2 transmission with an A3 transmission.

1шт.

No longer available. Order 329082A1 transmission, see Figure 6-60.

1шт.

130787A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

130787A3C

CORE-TRANSMISSION

Return Number

1шт.

190432A1

SOLENOID

VALVE ASSEMBLY, solenoid, Includes: Ref. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

NUT cap

1шт.

2

NSS

NOT SOLD SEPARAT

COIL solenoid

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE solenoid

1шт.

4

181149A1

SEAL PACKAGE

KIT seal, solenoid, Includes: one each of 238-5014, 238-5015, and 237-6010 O-ring, not available for service, order 190432A1 valve

1шт.

5

181100A1

PLUG,1/8 CAS x 8

PLUG valve

2шт.

6

934667R1

SEALING RING,M10 x 14 x 1

WASHER - flat, copper, special, 10 x 14 x 1 mm

2шт.

7

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

BOLT, Hex, M8 x 60, 8.8

3шт.

8

190429A1

HOUSING

BODY solenoid valve

1шт.

9

190430A1

GASKET

GASKET body to transmission housing

1шт.

10

190431A1

VALVE

VALVE solenoid, installed between Ref. 8 and Ref. 9

1шт.

Выбрано товаров: 21
