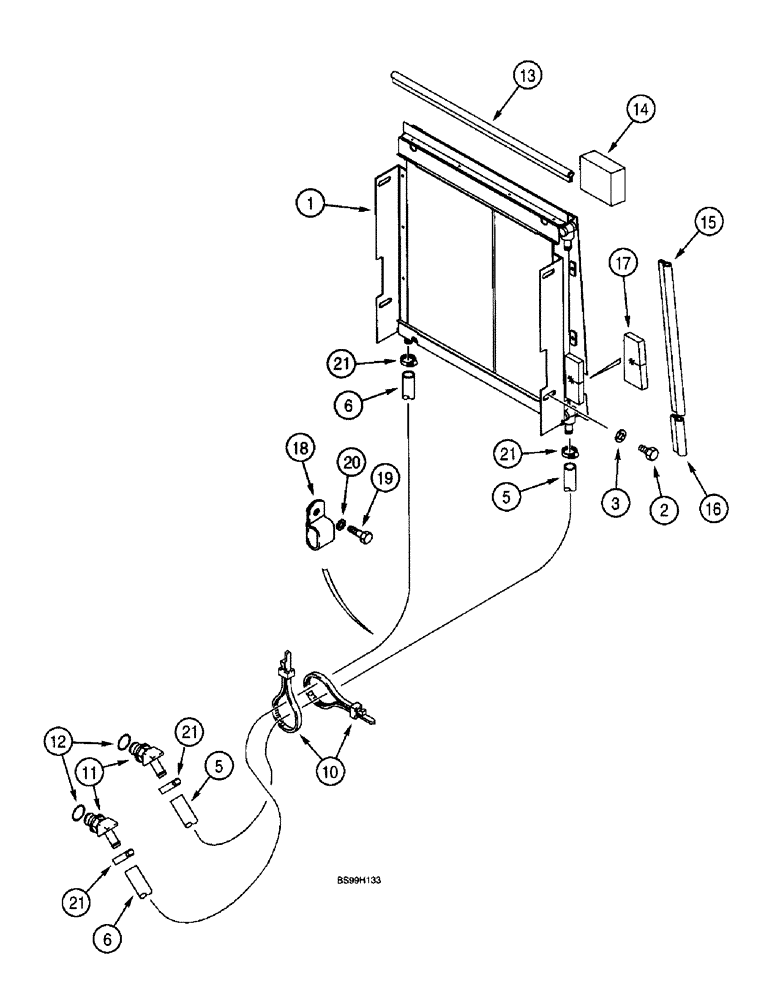

Запчасти Case 570LXT (6-026) - TRANSMISSION COOLING SYSTEM, MODELS W/ AIR CONDITIONING (W/ CUT HOSES AT COOLER) (06) - POWER TRAIN

1

301239A1

COOLER, OIL

COOLER hydraulic oil, heavy duty, used with 239739A1 heavy duty radiator on Figure 2-4, uses radiator upper mounting bolts, see Figure 9-96 for hardware and Figure 8-9B for additional cooler hydraulic routing

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

5

319889A2

HOSE

transmission to cooler inlet, 1360 mm, 53-9/16 inch long, Replaces: 301339A1 hose

1шт.

6

301340A2

HOSE

cooler outlet to transmission, 2000 mm, 78-3/4 inch long, Replaces: 301340A1 hose

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, retaining, 15 inch

2шт.

11

217-314

FITTING,45 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

ELBOW 45°, 5/8 stem end x 7/8-14 inch O-ring boss, Includes: Ref. 12

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

13

233972A1

SEAL

horizontal, cooler to wrapper, 564 mm, 22-7/32 inch long

1шт.

14

234719A1

SEAL

SEAL upper corner, 70 x 100 x 32 mm

2шт.

345-44

ADHESIVE

spray can, 3M No. 74, 23 ounce

1шт.

15

233970A1

SEAL

vertical, cooler to wrapper, 472 mm, 18-5/8 inch long

2шт.

16

233971A1

SEAL

lower corner, 103 mm, 4-1/16 inch long

2шт.

17

234499A1

SEAL

furnished with cooler, 45 x 120 x 15 mm

2шт.

18

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

P-type, double, if used

1шт.

19

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

hex, full threads, 12 - 1.75 x 25 mm, If used

1шт.

20

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

If Used M13.5 x 24.5 x 3, HT

1шт.

21

328186A1

HOSE CLAMP,400mm L

CLAMP hose

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

2шт.
