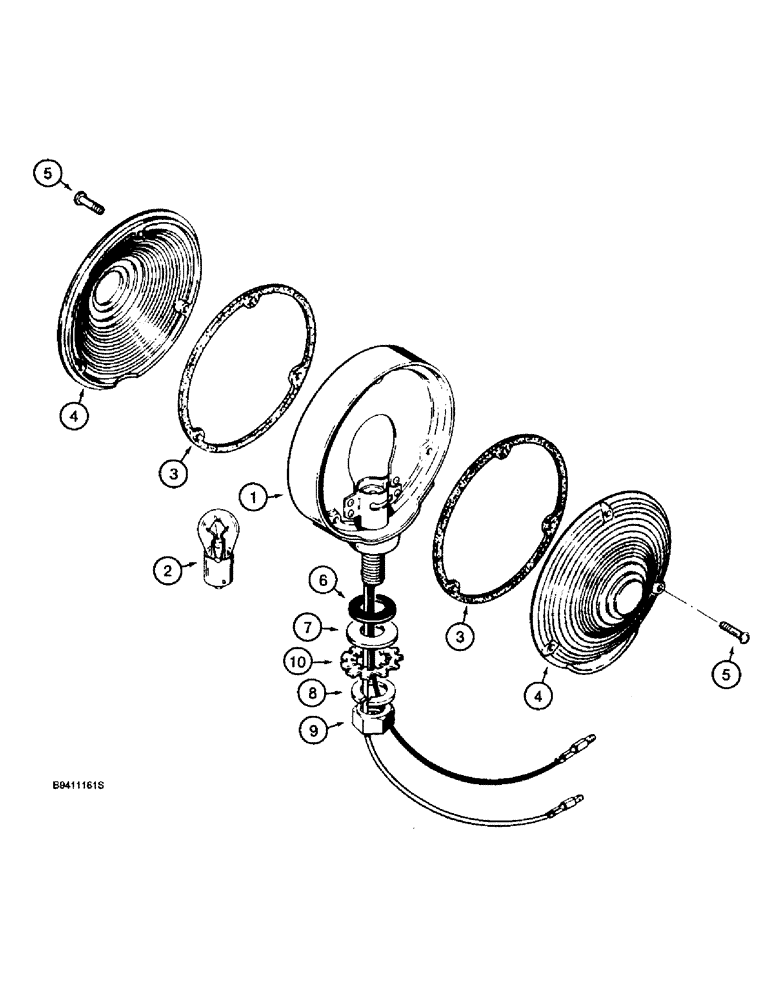

Запчасти Case 570LXT (4-040) - CANOPY TRACTOR LAMPS, 570LXT SHORT ROPS CANOPY WITH MINIMAL ROOF TURN SIGNAL AND FLASHER LAMPS (04) - ELECTRICAL SYSTEMS

D122121

LAMP,12V

ASSEMBLY, turn signal and flasher, for service order P/N 197594A1 kit, Includes: Ref. 1 - 9

2шт.

1

NSS

NOT SOLD SEPARAT

BODY signal and flasher lamp

1шт.

2

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

L32214

LENS

KIT lens replacement, Includes: Ref. 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

GASKET lens

1шт.

4

NSS

NOT SOLD SEPARAT

LENS amber

1шт.

5

182-47

SCREW,Sl Pan Hd, #6 - 32 x 5/8"

machine, pan head slotted, No. 6 NC x 5/8 inch

3шт.

6

L32256

WASHER

BUSHING rubber

1шт.

7

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

1шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

9

425-118

NUT,1/2"-20, G5

hex, 1/2 inch NF

1шт.

10

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

197594A1

LAMP

KIT service, Includes: P/N D122121 lamp assembly, plus 2, P/N 56698R1 terminal, with instruction sheet

2шт.
