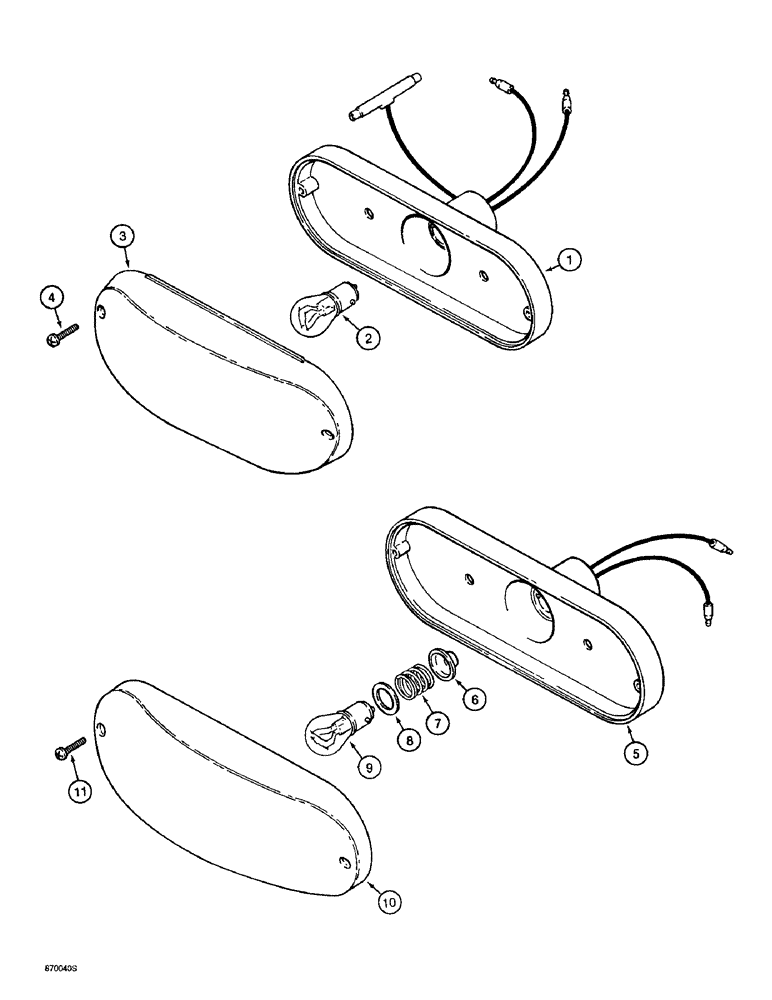

Запчасти Case 570LXT (4-038) - CANOPY TRACTOR LAMPS, 580L OR 570LXT MODELS, STOP AND TAIL LAMPS (04) - ELECTRICAL SYSTEMS

D121152

LAMP,12V

ASSEMBLY, red, stop and tail, Includes: Ref. 1 - 4

2шт.

1

NSS

NOT SOLD SEPARAT

BODY lamp, complete, Stop and tail lamp

1шт.

2

T34857

BULB,C6, #1157, 12.8V

- lamp, No. 1157, stop and tail lamp

1шт.

3

N6836

LENS

red, lamp, Stop and tail lamp

1шт.

4

261-14310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

SCREW self-tapping, pan Phillips, No. 6 NC x 5/8 inch, Stop and tail lamp

2шт.

D135384

LAMP,12V

ASSEMBLY, turn signal and flasher, amber, Includes: Ref. 5 - 11

4шт.

5

NSS

NOT SOLD SEPARAT

BODY AND SOCKET, lamp, Turn signal and flasher

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL rubber, spring retaining, Turn signal and flasher

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING lamp, Turn signal and flasher

1шт.

8

NSS

NOT SOLD SEPARAT

INSULATOR lamp, Turn signal and flasher

1шт.

9

A41264

BULB,#1156, 12V

Lamp, Turn signal and flasher #1156, 12V

1шт.

10

N14283

LENS

amber, lamp, Turn signal and flasher

1шт.

11

261-14310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

SCREW self-tapping, pan Phillips, No. 6 NC x 5/8 inch, Turn signal and flasher

2шт.
