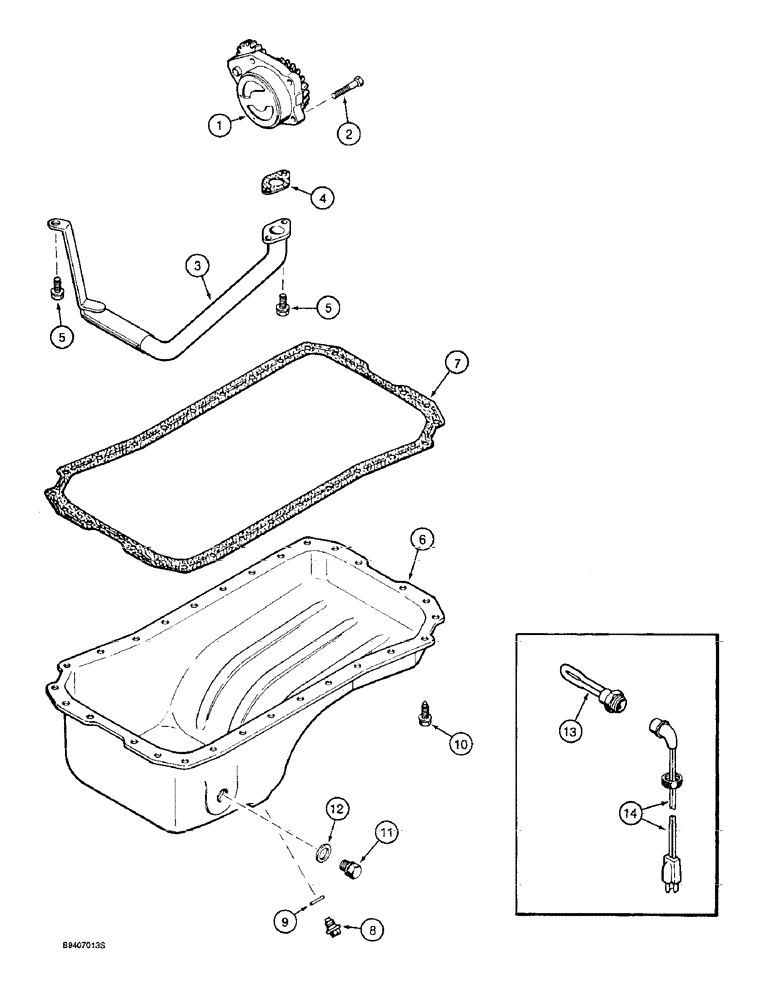

Запчасти Case 570LXT (2-030) - OIL PUMP AND OIL PAN, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

1

J930336

PUMP, ENGINE OIL

PUMP oil, engine, new, Replaces: P/N J926202 pump

1шт.

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only; Replaces: P/N JR926202 pump

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

J900677

BOLT,Hex

BOLT hex, full threads, 8-1.25 x 30 mm

4шт.

3

J905206

TUBE,1" OD

TUBE suction, oil

1шт.

4

J914383

GASKET

GASKET mounting, oil suction tube

1шт.

Part of Oil Pan Gasket Kit, P/N A77673

1шт.

5

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

3шт.

6

J901049

PAN, ENGINE OIL

PAN, OIL PAN oil, engine

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET oil pan

1шт.

Part of Oil Pan Gasket Kit, P/N A77673

1шт.

8

J924147

PLUG,M18 x 1.5

PLUG hex magnetic, special, 18 mm - 1.5 drain, oil

1шт.

9

J920773

SEALING WASHER

WASHER sealing, drain plug

1шт.

Part of Oil Pan Gasket Kit, P/N A77673

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW - hex flange cap, special, 8-1.25 x 25 mm

28шт.

11

J924148

PLUG,M22 x 1.5

PLUG hex magnetic, special, 22 mm - 1.5 pipe, heater hole

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER sealing, plug

1шт.

When engine oil heater kit is ordered P/N J902425 washer must also be ordered.

1шт.

A77673

GASKET KIT

KIT gasket, oil pan, Includes: Ref. 4, 7 and 9

1шт.

A77490

KIT

KIT heater, engine oil, Includes: Ref. 13 - 14

1шт.

When engine oil heater kit is ordered P/N J902425 washer must also be ordered.

1шт.

13

NSS

NOT SOLD SEPARAT

ELEMENT heater, 120 volt

1шт.

14

196466A1

ELECTRIC CABLE

CABLE engine block heater, Replaces: P/N J905113 cable

1шт.
