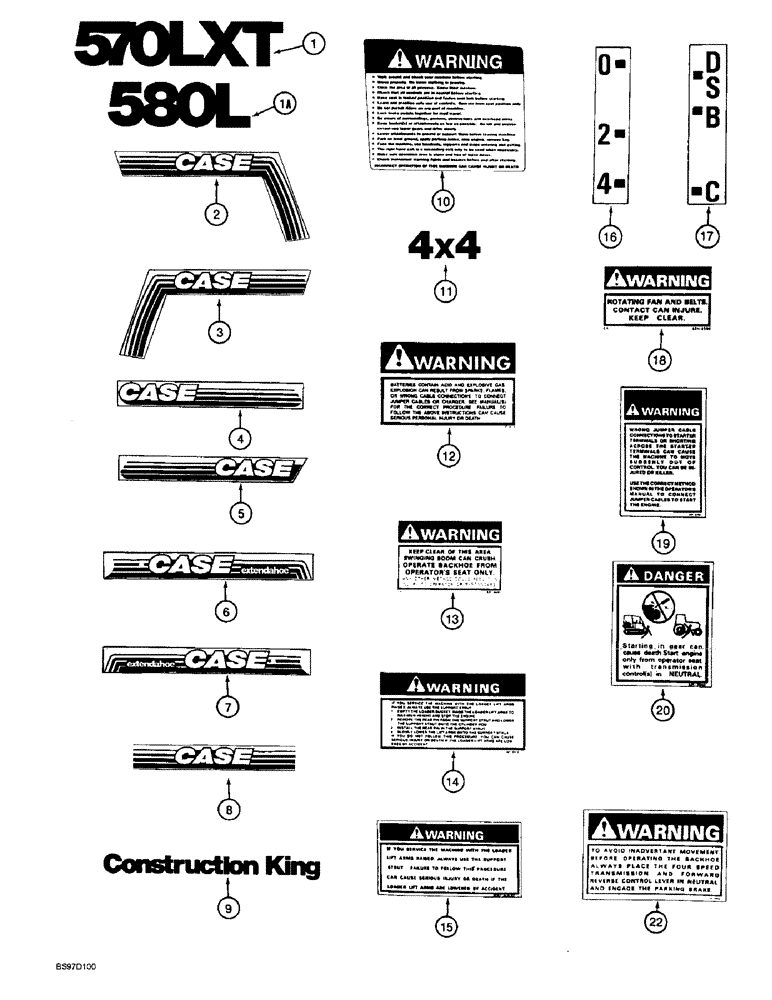

Запчасти Case 570LXT (9-168) - DECALS (09) - CHASSIS/ATTACHMENTS

1

182365A1

DECAL

570LXT

2шт.

1a

182367A1

DECAL

580L

2шт.

2

183113A1

DECAL

Case, right hand side of hood

1шт.

3

183112A1

DECAL

Case, left hand side of hood

1шт.

4

191096A2

DECAL

Case, with right hand stripes, standard dipper left hand side

1шт.

See Figure 9-174 for 40th Anniversary decals.

1шт.

5

191097A2

DECAL

Case, with left hand stripes, standard dipper right hand side

1шт.

See Figure 9-174 for 40th Anniversary decals.

1шт.

6

192252A1

DECAL

Case extendahoe, right hand

1шт.

See Figure 9-174 for 40th Anniversary decals.

1шт.

7

192253A1

DECAL

Case extendahoe, left hand

1шт.

See Figure 9-174 for 40th Anniversary decals.

1шт.

8

183864A2

DECAL

Case, with right hand stripe, rear closure panel, canopy models, 580L

1шт.

9

D149905

DECAL

Construction King

2шт.

10

144194A1

DECAL

Warning, walk around and check your machine before starting

1шт.

11

182373A1

DECAL

4x4, four wheel drive models

2шт.

12

321-6714

DECAL

Warning, batteries contain acid and explosive gas

1шт.

13

321-4481

DECAL

Warning, keep clear of this area, swinging boom can crush

2шт.

14

321-6413

DECAL

Warning, left hand loader lift arm support strut usage

1шт.

15

321-6671

DECAL

Warning, right hand chassis channel

1шт.

16

321-1708

DECAL

0 - 2 - 4, clam bucket opening indicator

1шт.

17

321-1707

DECAL

clam bucket position

1шт.

18

321-3596

DECAL

Warning, rotating fan and belts

2шт.

19

321-6872

DECAL

Warning, wrong jumper cable connections to starter terminals

1шт.

20

321-7040

DANGER DECAL

DECAL, DANGER, Starting in gear can cause death

1шт.

22

D150899

DECAL

Warning, to avoid inadvertant movement, before operating the backhoe

1шт.
