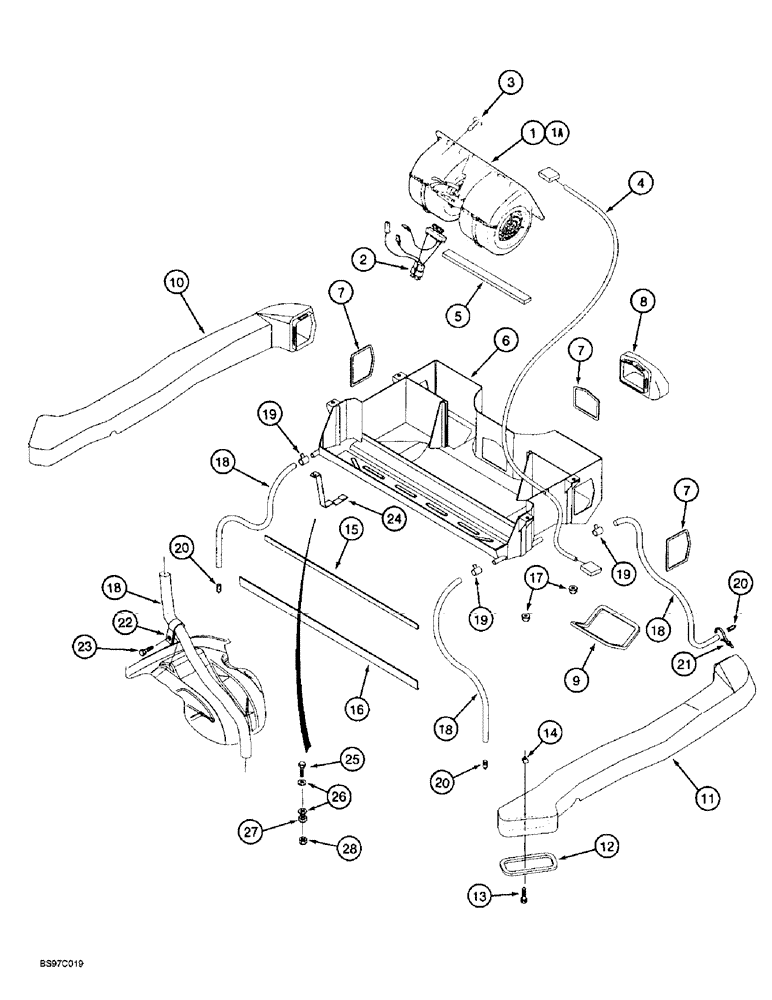

Запчасти Case 570LXT (9-148) - CAB, BLOWER HOUSING, HEAT AND AIR VENTILATION DUCTS, AND DRAIN LINES (09) - CHASSIS/ATTACHMENTS

1

1340492C2

BLOWER

ASSEMBLY air, cab, component parts not serviced separately, used in production, for service order 1977564C2 blower assembly and 1343938C1 resistor, items 1A and 2 below

1шт.

1

355190A1R

REMAN-BLOWER,12V

Reman for New PN 1340492C2

1шт.

1

355190A1C

CORE-BLOWER,12V

Return Number

1шт.

1a

1977564C2

BLOWER

cab, air, component parts not serviced separately

1шт.

1a

355190A1R

REMAN-BLOWER,12V

Reman for New PN 1977564C2

1шт.

1a

355190A1C

CORE-BLOWER,12V

Return Number

1шт.

2

1343938C2

RESISTOR

blower, Replaces: 1343938C1 resistor

1шт.

3

182697A1

FASTENER

Retainer, plastic

5шт.

4

189404A1

HARNESS

jumper, blower

1шт.

5

181981A1

SEALING STRIP

SEAL adhesive backed, 6 (5/16) x 20 (51/64) x 355 mm, 14 inch long

1шт.

6

134125A1

CASE

HOUSING ventilation, heat and air

1шт.

7

128406A1

SEAL

ventilation, Serial Range: housing-duct

3шт.

8

131039A1

CONDUIT

DUCT small, front

1шт.

9

131974A1

SEAL

ventilation housing, lower front

2шт.

10

131041A1

CONDUIT

DUCT left hand, large

1шт.

11

131042A1

CONDUIT

DUCT right hand, large

1шт.

12

131973A1

SEAL

duct

2шт.

13

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

- heavy hex flange, 6 - 1.0 x 20 mm

2шт.

14

833-40406

NUT,M6, U

- U-type, 6 mm - 1.0

2шт.

15

1987097C1

PANEL

SEAL 9 (23/64) x 19 (3/4) x 735 mm, 29 inch long, air conditioning drain pan

1шт.

16

1987096C1

PLATE

(Seal), 9 (23/64) x 19 (3/4) x 765 mm (30-1/8") long, Air conditioning drain pan

1шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

4шт.

18

127073A1

CONDUIT

HOSE 13 (1/2) x 16 (5/8) x 2850 mm, 112-13/64 inch long, front and rear drain

4шт.

19

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP adj, 1/4 - 5/8 inch dia

4шт.

20

109239C2

CHECK VALVE

VALVE, CHECK, Drain

4шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

2шт.

22

184289A1

CLAMP,16mm D Clamping Pipe

hose, mounts on left hand fender

1шт.

23

282-16512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

self drilling tapping, hex washer head, No. 10-16 x 3/4 inch, Teflon

1шт.

24

227617A1

SUPPORT

BRACKET mounting, blower housing, if used

1шт.

25

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 25 mm, retains center mounting bracket at the back of the housing, if used

1шт.

26

F42778

WASHER

special, sealing, if used

2шт.

27

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10, If used

1шт.

28

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, , If Used M8 x 1.25, Cl 8

1шт.
