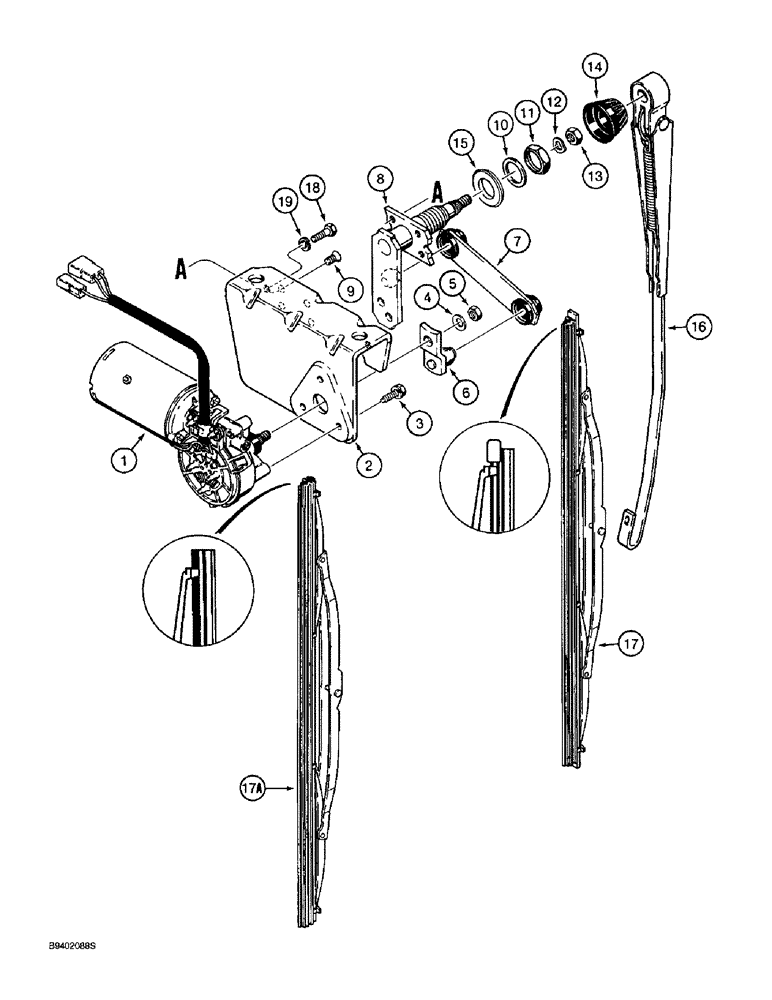

Запчасти Case 570LXT (9-140) - CAB FRONT WINDSHIELD WIPER (09) - CHASSIS/ATTACHMENTS

A186171

WIPER MOTOR

WIPER ASSEMBLY windshield, 12 volt, with bracket, front windshield wiper

1шт.

1

A186256

WIPER MOTOR,12V

MOTOR wiper, 12 volt, windshield wiper

1шт.

2

N8359

SUPPORT

BRACKET windshield wiper assembly

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

SCREW with washer, special, motor to bracket

3шт.

4

N8361

SPRING WASHER

Belleville

1шт.

5

L112090

NUT

hex, special, 8 mm

1шт.

6

N8360

SUPPORT

ARM drive

1шт.

7

N8358

LINK

LINK wiper

1шт.

8

N14112

SHAFT

pivot

1шт.

9

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

special, pivot shaft to bracket

4шт.

10

L112088

WASHER

special, large, shaft

1шт.

11

L112087

NUT

special, large, shaft

1шт.

12

L112089

WASHER

wave, special, shaft end

1шт.

13

L112090

NUT

hex, special, 8 mm, shaft end

1шт.

14

L112081

CAP

pivot shaft end

1шт.

15

R54241

SPACER

pivot shaft Replaced: R54504

1шт.

16

D128745

WIPER ARM

ARM windshield wiper, 570 mm, 22-7/16 inch long, complete

1шт.

17

A187909

WIPER BLADE

BLADE wiper arm, complete, used in production, 500 mm, 19-11/16 inch long, not available for service, for complete blade order Ref. 17A, 132024A1

1шт.

See the blade ends in the illustrations for Ref. 17 and 17A to determine which blade to order.

1шт.

17a

132024A1

WIPER BLADE

BLADE wiper arm, complete, for blade only, order 132025A1 blade refill, shown below

1шт.

See the blade ends in the illustrations for Ref. 17 and 17A to determine which blade to order.

1шт.

18

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

hex, 1/4 NF x 3/4 inch

2шт.

19

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

1983335C1

WIPER

BLADE rubber, 500 mm long, refill for A187909 complete blade, no longer available, order Ref. 17A, 132024A1

1шт.

See the blade ends in the illustrations for Ref. 17 and 17A to determine which blade to order.

1шт.

132025A1

WIPER BLADE

BLADE rubber, 500 mm long, refill for 132024A1 complete blade

1шт.

See the blade ends in the illustrations for Ref. 17 and 17A to determine which blade to order.

1шт.
