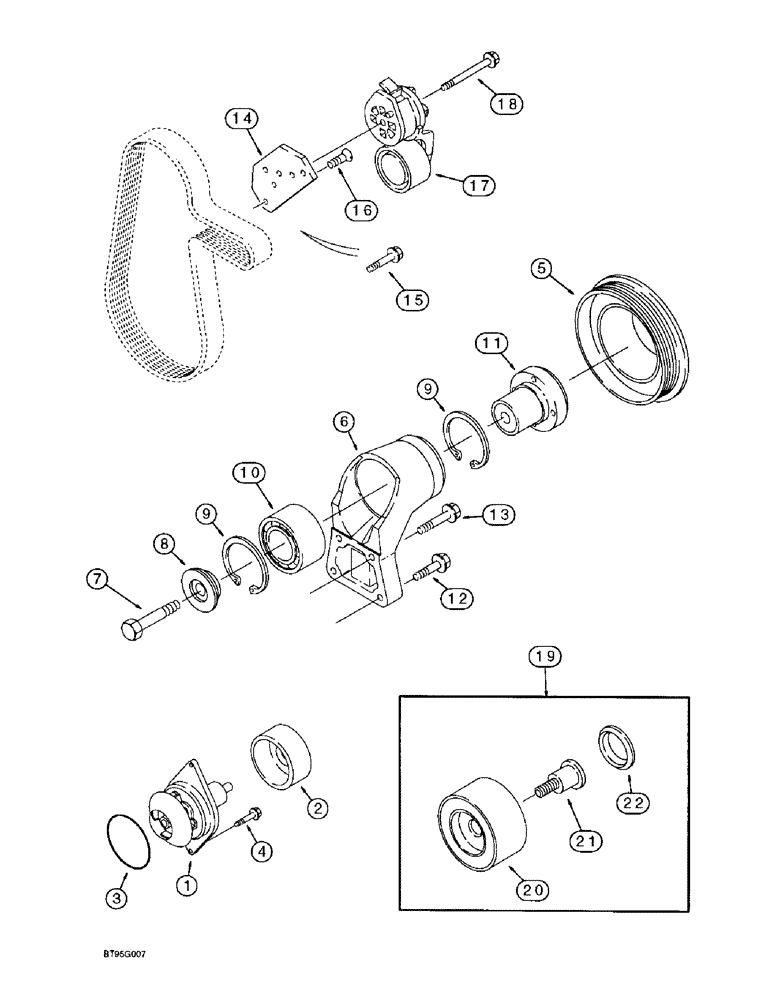

Запчасти Case 570LXT (2-018) - WATER PUMP SYSTEM, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

J802358

PUMP, WATER

KIT water pump, Replaces: P/N A77703 kit, Includes: Ref. 1 - 3

1шт.

J286278R

REMAN-WATER PUMP

570LXT, 580L

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY, water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY water pump

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914462

PULLEY,163mm OD

fan, 1.1 to 1 ratio

1шт.

6

J911205

BRACKET

SUPPORT fan, Includes: Ref. 7 - 11

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

hex, special, 10-1.5 x 70 mm, class 12.9

1шт.

8

J923044

RETAINER

fan hub

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

Ring, Snap, 2.50", Int, #250

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

BEARING ball

1шт.

11

J911924

HUB

fan

1шт.

12

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 40 mm, 8.8

2шт.

13

845-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 8.8

2шт.

14

J925195

SUPPORT

BRACKET belt tensioner

1шт.

15

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, torx, special, 8 - 1.25 x 25 mm

1шт.

17

J918944

BELT TENSIONER

TENSIONER belt

1шт.

18

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 70 mm, class 10.9

1шт.

19

A77817

KIT

KIT belt tensioner pulley, used to Replace: P/N J918944 pulley belt tensioner, Ref. 17, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

PULLEY belt tensioner

1шт.

21

NSS

NOT SOLD SEPARAT

BOLT pulley

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL dust

1шт.
