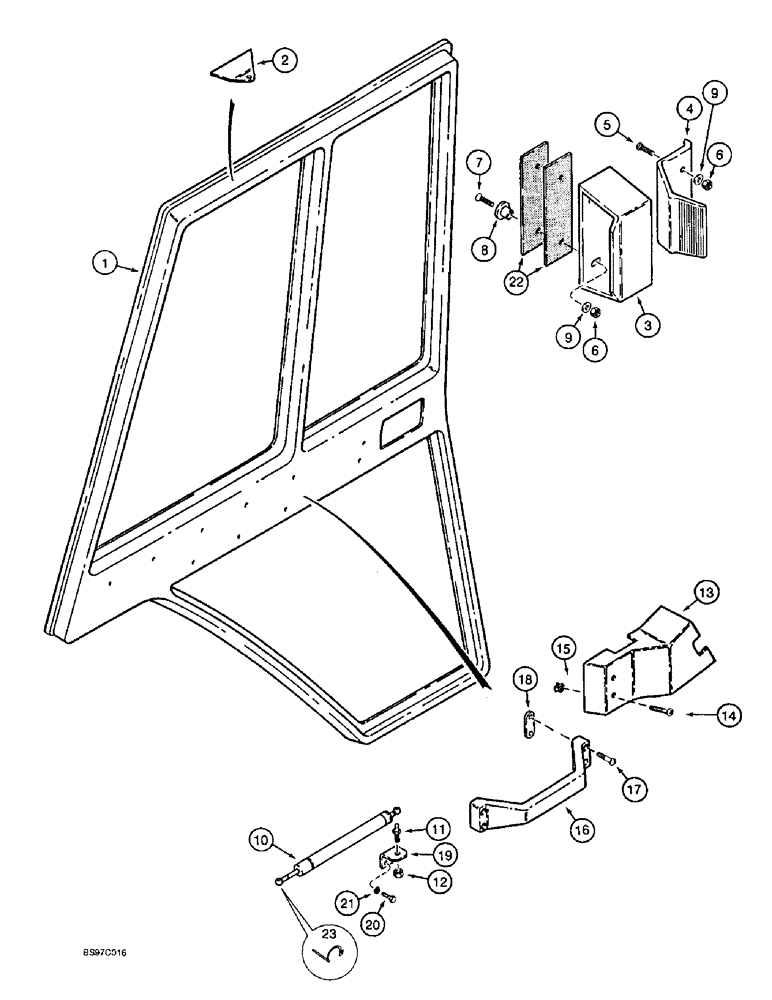

Запчасти Case 570LXT (9-130) - LEFT-HAND AND RIGHT-HAND CAB DOORS - INTERIOR (09) - CHASSIS/ATTACHMENTS

1

137868A3

DOOR ASSY.

FRAME left hand door, Replaces: 137868A1 and 137868A2 frame

1шт.

Ref 1, 137868A3 - Complete door assy is 194021A2

1шт.

1a

137869A3

DOOR ASSY.

FRAME right hand door, not shown, Replaces: 137868A1 and 137868A2 frame

1шт.

Ref 1A - 137869A3 - complete door assy is 194021A2

1шт.

2

R53562

BRACKET

cable, welded to left hand or right hand door frame

1шт.

3

97399C1

HANDLE

door window

2шт.

4

97398C1

LOCK ASSY

LATCH push type, door window

2шт.

5

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

4шт.

6

F45165

SPECIAL NUT,#10-24

NUT hex, self locking, special, No. 10 NC

8шт.

7

142-104

SCREW,Oval HD, #10 - 24 x 1"

4шт.

8

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

nylon, black, Serial Range: glass-bracket

4шт.

9

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

(1/4 x 9/16 x 3/64") #12

8шт.

10

F44881

CYLINDER ASSY.

CYLINDER door, left hand and right hand

2шт.

11

1340345C1

BALL STUD

STUD ball, cylinder

2шт.

12

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

2шт.

13

108938A2

PANEL

left hand door, used with 137868A1 frame, Replaces: 108938A1 panel

1шт.

13a

108936A2

PANEL

right hand door, used with 137869A1 frame, not shown, Replaces: 108936A1 panel

1шт.

14

260-16524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

SCREW, SELF TAPPING, pan Phillips, No. 10-16 x 1-1/2", Black, LH and RH door panels

4шт.

15

R53000

GROMMET

RETAINER screw, left hand and right hand door panels

4шт.

16

1958970C1

HANDLE

left hand and right hand inner door

2шт.

17

165-129

HEX SOC SCREW,Self-Lkg, 1/4" - 20 x 3/4"

BOLT hex socket, self locking, 1/4 NC x 3/4 inch, black, left hand and right hand inner door handles

8шт.

18

1971368C1

PLATE ASSY.

PLATE retainer, left hand and right hand inner door handle

4шт.

19

1977399C1

SUPPORT ASSY.

BRACKET cylinder

2шт.

20

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

4шт.

21

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

22

R54047

PAD,30mm OD x 0.76mm Thk

SHIM latch bracket, left hand and right hand door window

4шт.

23

F44883

CLIP,DIN 71805 - S10

RETAINER lock, clip

2шт.
