Запчасти Case 570LXT (9-120) - SUSPENSION SEAT, PEDESTAL, WEIGHT ADJUSTER AND SUSPENSION, 570LXT MODELS (09) - CHASSIS/ATTACHMENTS

136408A3

SEAT

ASSEMBLY suspension, gray cloth, without armrests

1шт.

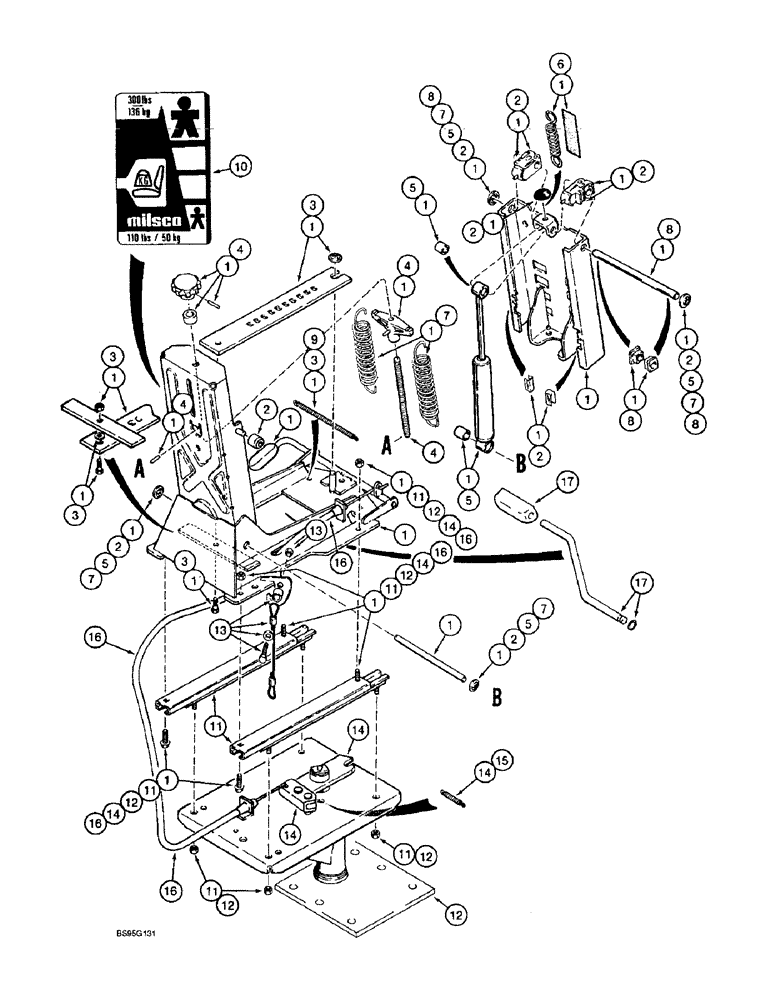

Includes seat, suspension, pedestal and weight adjuster on Figures 9-116. Purchase armrests separately. See Figure 9-122 for armrests. Individual component parts not serviced separately. For service order respective component kits. Replaces136408A1 and 136408A2 seat.

1шт.

136419A2

SEAT

ASSEMBLY suspension, gray vinyl, without armrests

1шт.

Includes seat, suspension, pedestal and weight adjuster on Figure 9-116. Purchase armrests separately. See Figure 9-122 for armrests. Individual component parts not serviced separately. For service, order respective component kits.

1шт.

1

192303A1

KIT

suspension, includes parts from seat frame to adjuster slides, see additional parts on Figure 9-116, Ref. 8

1шт.

2

176921A1

KIT

plastic components, also see additional kit parts on Figure 9-116, Ref. 9

1шт.

3

116521A1

KIT

fore/aft, adjuster latch, alsoIincludes tie straps shown on Figure 9-116

1шт.

131-435

PUSH-ON NUT,Push, 3/8"

NUT push on type, 3/8 inch

1шт.

4

176916A1

KIT

weight adjusting, also Includes rubber height control handle grip and (10) shroud plastic retainers shown on Figure 9-116

1шт.

Also Includes 10 shroud plastic retainers, 2 washers and 2 tie straps shown on Figure 9-116.

1шт.

5

176914A1

KIT

suspension damper, also Includes rubber height control handle grip and (10) shroud plastic retainers shown on Figure 9-116

1шт.

Also Includes 10 shroud plastic retainers, 2 washers and 2 tie straps shown on Figure 9-116.

1шт.

6

116547A1

KIT

height adjusting spring, see additional kit parts on Figure 9-116, Ref. 10

1шт.

7

176920A1

KIT

main extension springs, suspension, also Includes rubber height control handle grip and (10) shroud plastic retainers shown on Figure 9-116

1шт.

Also Includes 10 shroud plastic retainers, 2 washers and 2 tie straps shown on Figure 9-116.

1шт.

8

116551A1

WHEEL BEARING KIT

KIT upper suspension tower shaft, also Includes (10) shroud plastic retainers and (2) washers shown on Figure 9-116

1шт.

9

116545A1

KIT

fore/aft latch spring, also Includes (2) tie straps shown on Figure 9-116

1шт.

10

116534A1

KIT

decal, seat weight adjustment, Includes instructions, Included in seat assembly

1шт.

11

192305A1

KIT

fore/aft adjuster slides

1шт.

12

192304A1

KIT

pedestal, seat support

1шт.

13

116552A1

KIT

cable, Includes hardware for both ends of cable

1шт.

14

116550A1

KIT

swivel latch bar, pedestal

1шт.

15

116548A1

KIT

swivel latch spring only

1шт.

16

181170A1

KIT

cable, fore-aft/swivel mechanism, also Includes (2) tie straps shown on Figure 9-116

1шт.

17

192306A1

KIT

swivel handle, Includes handle, grip and retaining rings

1шт.
