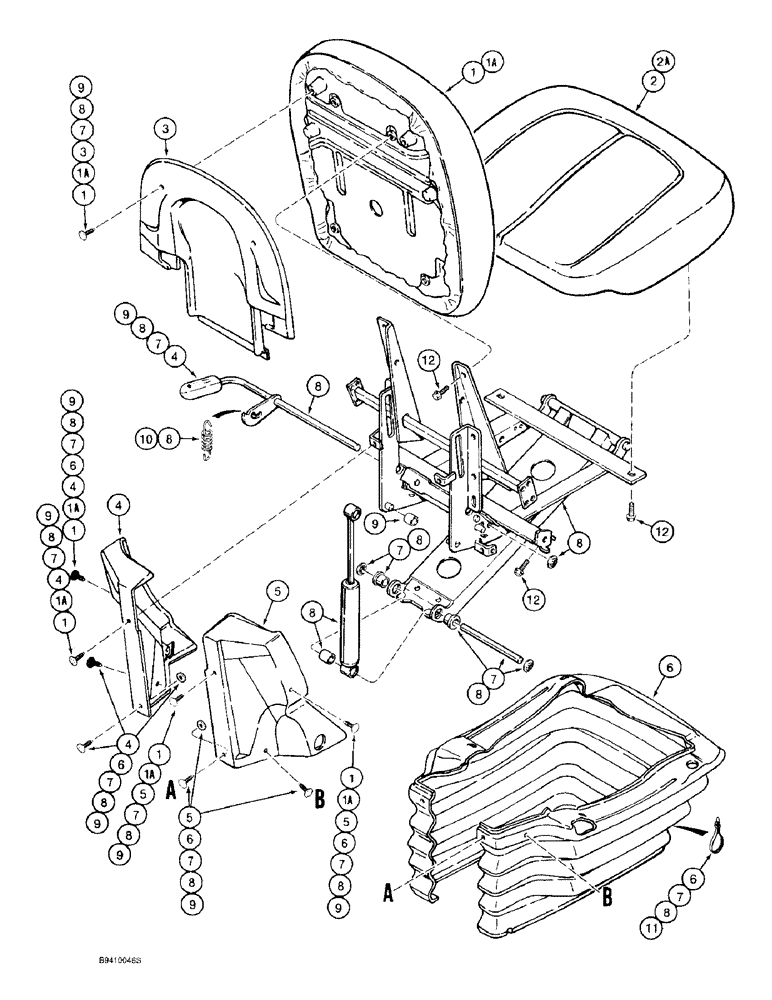

Запчасти Case 570LXT (9-104) - SUSPENSION SEAT ASSEMBLIES, 580L MODELS (09) - CHASSIS/ATTACHMENTS

185158A2

SEAT

ASSEMBLY suspension, gray cloth, includes seat, armrests, suspension, pedestal, and weight adjuster on Figures 9-108 and 9-110, individual component parts not serviced separately, for service order respective component kits, replaces 185158A1 seat

1шт.

185157A1

SEAT

ASSEMBLY suspension, gray vinyl, includes seat, armrests, suspension, pedestal, and weight adjuster on Figures 9-108 and 9-110, individual component parts not serviced separately, for service order respective component kits

1шт.

1

176922A2

KIT

backrest cushion, gray cloth, Replaces: 176922A1 kit

1шт.

1a

176923A1

KIT

backrest cushion, gray vinyl

1шт.

2

176909A2

KIT

seat cushion, gray cloth, Replaces: 176909A1 kit

1шт.

2a

176910A1

KIT

seat cushion, gray vinyl

1шт.

3

176906A1

KIT

backrest shroud

1шт.

4

176903A1

KIT

left hand shroud

1шт.

5

176904A1

KIT

right hand shroud

1шт.

6

176911A1

KIT

boot, rubber

1шт.

7

176919A1

KIT

swing arm pivot shaft

1шт.

8

116549A2

KIT

suspension, includes parts from seat frame to adjuster slides, see additional kit parts on Figure 9-108, Ref. 1, Replaces: 116549A1 kit

1шт.

9

176921A1

KIT

plastic components, also see additional kit parts on Figure 9-108, Ref. 2

1шт.

10

116547A1

KIT

height adjusting spring, also includes (10) shroud plastic retainers, see additional kit parts on Figure 9-108, Ref. 6

1шт.

11

181170A1

KIT

cable, fore-aft/swivel mechanism, also includes cable and (4) nuts on Fig. 9-109

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT 5/16 inch thread, length as needed, purchase locally, seat cushion and backrest

8шт.
