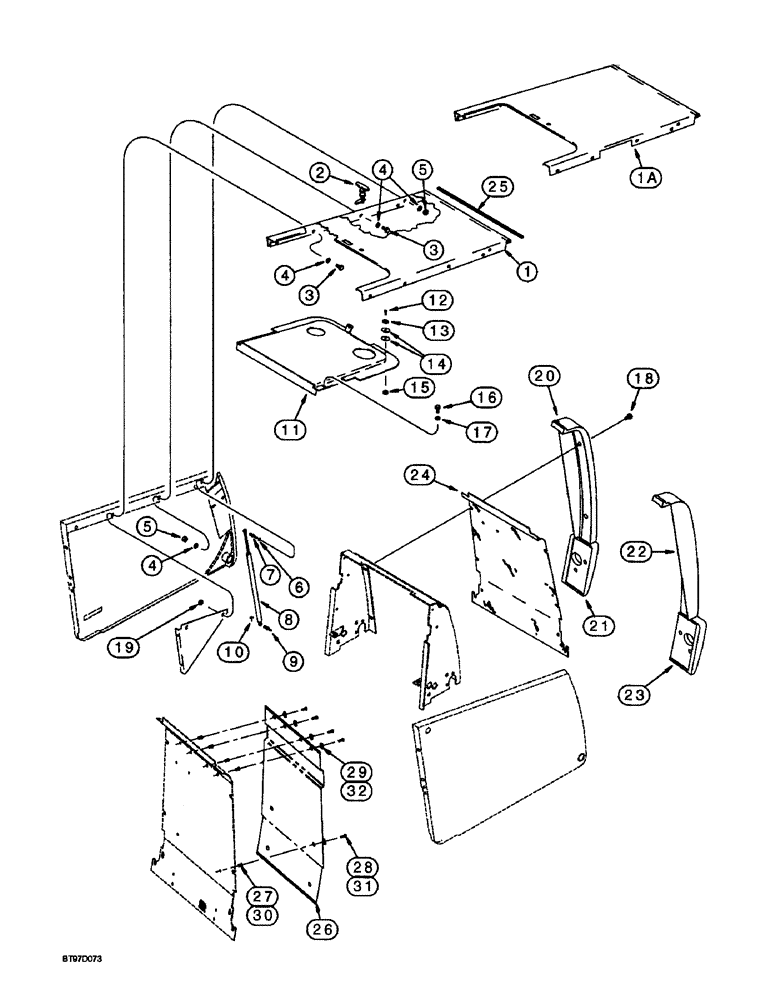

Запчасти Case 570LXT (9-088) - TILT HOOD, UPRIGHT COVER, GRILLE UNIT, AND CHAFF SCREEN (09) - CHASSIS/ATTACHMENTS

1

139486A1

HOOD

engine, tilt, no longer available, order 139486A2 hood

1шт.

1a

139486A2

HOOD

engine, tilt

1шт.

2

175599A1

LATCH

hood

1шт.

3

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

10шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

14шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

8шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

7

139362A1

BALL JOINT

STUD upper ball, 10 mm - 1.5

2шт.

8

114980A1

GAS STRUT

Cylinder - spring, Counterbalance, Hood

2шт.

9

139363A1

BALL JOINT,M10 x 1.5mm x 42mm L

STUD lower ball

2шт.

10

F44883

CLIP,DIN 71805 - S10

RETAINER lock, ball stud retainer

4шт.

11

144633A1

HOOD

COVER chassis upright

1шт.

12

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch

2шт.

13

109879A1

SPACER,5.5mm ID x 30mm OD

plastic, hood spacer

2шт.

14

185325A1

SPACER,5.5mm ID x 30mm OD x 2mm L

WASHER spacer

4-12шт.

15

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

16

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

4шт.

18

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT hex washer, special, 10 - 1.5 x 30 mm

8шт.

19

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

- hex flange, 10 mm - 1.5

4шт.

20

139502A1

PROTECTOR

BUMPER grille, left hand upper

1шт.

21

244287A1

PROTECTOR

BUMPER grille, left hand lower, Replaces: 133589A1 bumper

1шт.

22

139500A1

PROTECTOR

BUMPER grille, right hand upper

1шт.

23

244286A1

PROTECTOR

BUMPER grille, right hand lower, Replaces: 133591A1 bumper

1шт.

24

229398A2

SIEVE

GRILLE radiator shroud, Replaces: 139499A1 and 229398A1 grilles, see Figure 9-138 for Case emblem

1шт.

REF 24 -- CASE EMBLEM FOR GRILLE IS 186989A1

1шт.

25

194758A1

SEALING STRIP,20mm W x 560mm L x 6mm Thk

foam, adhesive backed, 20 (25/32) x 560 (22-3/64) x 6 mm, 1/4 inch, if used

1шт.

25

233262A1

SEALING STRIP,20mm W x 596mm L x 6mm Thk

foam, adhesive backed, 20 (25/32) x 596 (23-15/32) x 6 mm, 1/4 inch, with or without air conditioning, if used

1шт.

26

253889A1

SCREEN

chaff

1шт.

27

255447A1

THREADED INSERT

INSERT, THREADED, 1/4", if used

10шт.

28

257381A1

BOLT

BOLT hex, 1/4 NC x 3/4 inch, if used

8шт.

29

257382A1

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

flat, 1/4 inch, if used

8шт.

30

255687A1

RIVET

INSERT threaded, No. 10, if used

10шт.

31

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

If used Cross Pan Hd, #10-24 x 3/4"

8шт.

32

185325A1

SPACER,5.5mm ID x 30mm OD x 2mm L

WASHER spacer, flat, No. 10, if used

8шт.
